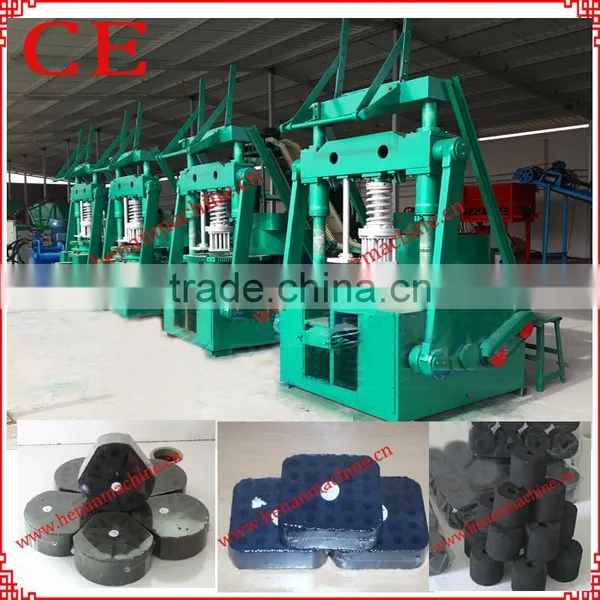

Easy to operate and long service life Coal briquette machine
Brief introduction of Coal briquette machine
Coal briquette machine takes the coal powder as raw materials, through mixing, pressing and molding the materials into honeycomb or other shapes briquettes. The coal powder briquette machine has been popularly used in China for almost 80 years. Mostly it is used in coal, metallurgical powder, powder cold-pressing ball, refractory materials. Shapes can also be hexagon shape, flower shape, cylinder shape, honeycomb shape and so on, we can produce according to order. Through many times' development, is mainly used for home cooking and keeping warm, chemical industry, refractory industry and others.
Characteristics of Coal briquette machine
1) All spare parts of coal dust briquette machine are made by ourselves.
2) Mainly used in home fire, heating with anthracite honeycomb made of cylindrical briquettes.
3) Shaping mold can be customized according to your demands.
4) Innovative design and reliable quality
5) The coal dust briquette machine absorb the advanced technique
6) High productivity, .Energy saving, Friendly-environment, Low-consumption and Easy to transport and store
7)The finishes can be easily ignited by a lighter, very convenient.
Basic technical parameters of Coal briquette machine
Model | MA140 | MA160 | MA180 | MA220 | MA260 |
Capacity(Punching times per Minute) | 45-50 | 45-50 | 45-50 | 20-24 | 20-24 |
Power(kw) | 7.5 kw; 4pole | 7.5 kw; 4pole | 11 kw; 4pole | 15 kw; 4pole | 15 kw; 4pole |
Presssure(tons) | 20-30 tons | 20-35 tons | 25-35 tons | 30-40 tons | 35-45 tons |
Mode of Operation | Punching press | Punching press | Punching press | Punching press | Punching press |
Diameter Of Mould(mm) | 140 mm | 160 mm | 180 mm | 220 mm | 260 mm |
Diameter of Final Products(mm) | Round:below140mm Square:100*100mm | Round:below160mm Square:120*120mm | Round:below180mm Square:150*150mm | Round:below220mm Square:200*200mm | Round:below260mm Square:220*220mm |
Height of Final Products(mm) | 30-90 MM; Can be adjusted | 30-90 MM; Can be adjusted | 30-90 MM; Can be adjusted | 30-90 MM; Can be adjusted | 30-90 MM; Can be adjusted |
Shape of final briquettes | Round/square/hexagon/other shape with holes or without holes by customizing the related molds. | ||||
Materials Conditions | Size: Less Than 5 MM ; Moisture: less Than 10% | ||||

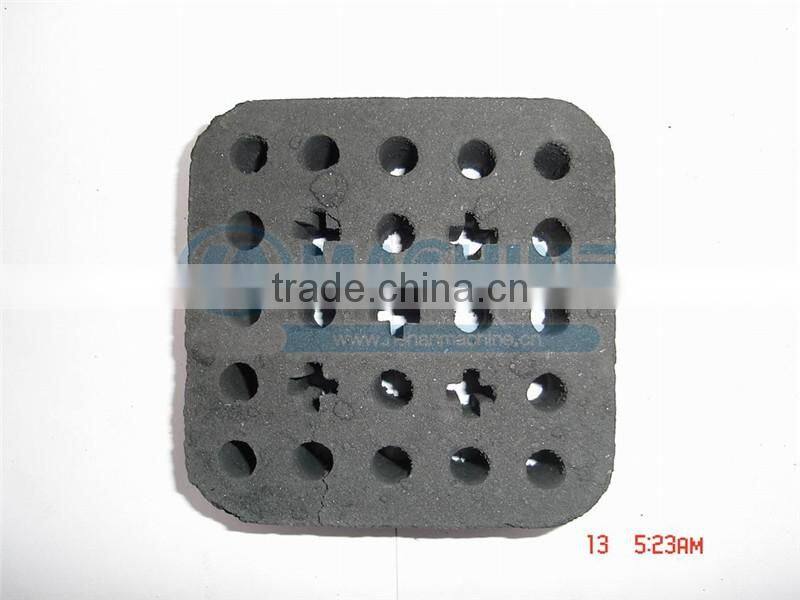

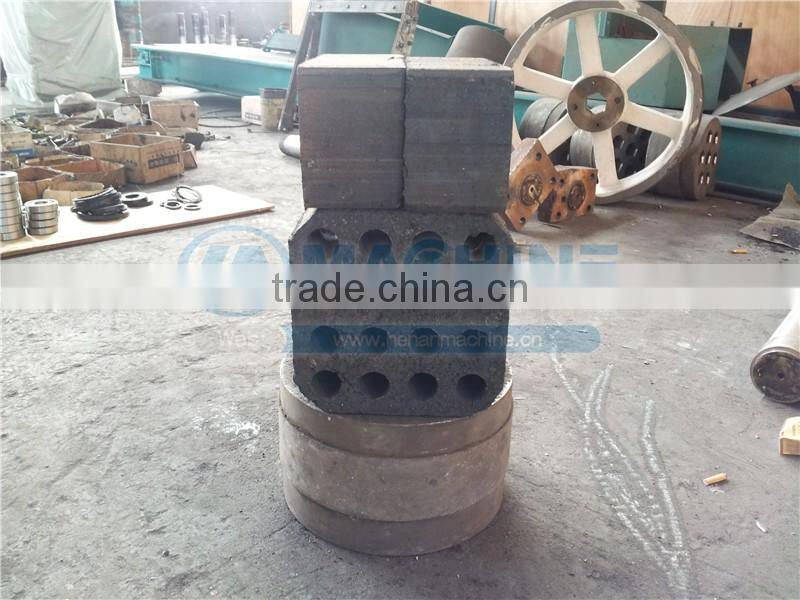

Briquettes Samples
This machine has various shapes, such as honeycomb, square, flower-shape etc.
1 the final product with high calorific value
2 smokeless when the briquettes burning, and have long burning time
3 it could produce different shape and different size briquette,
4 final product with high density, not easy to broke
5 the shape of final briquettes can be square, round , hexagonal, cylindrical, etc

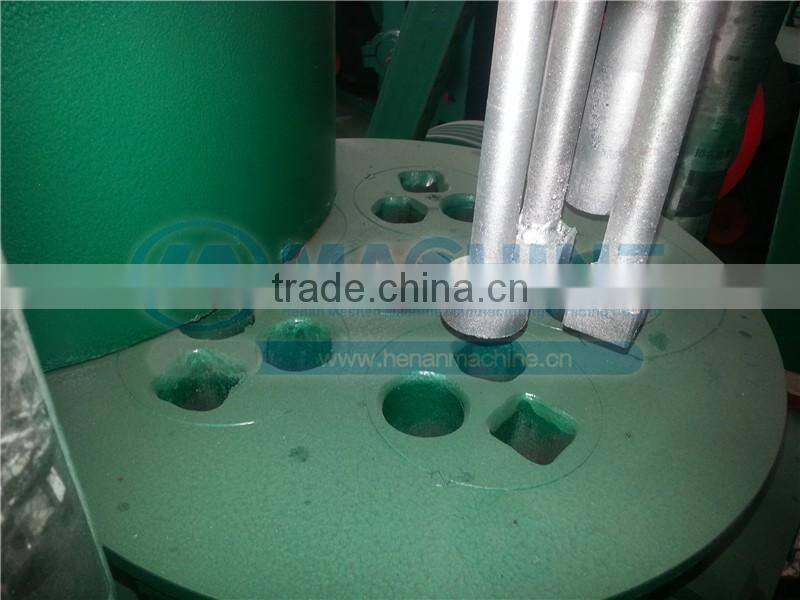

The different molds
The production line of Coal briquette machine
Apart from the honeycomb coal briquette machine, other related machine such as feeder, grinder, crusher, conveyor and dryer are also available in our factory, it means we can offer a whole product line. In addition, we can help you with the installation.
Raw material-----Crushing -----Mixing-----Feeding-----Briquetting----Final briquette
Honeycomb charcoal briquette machine structure is simple, includes the body, drive, feeding, punching, and conveying, etc, five parts.
Payment,Packing and Delivery?
- 1. Payment :30% TT in advance, 70%6TT balance pay off before delivery.
- 2. Packing: The machine and wear parts will protected by plywooden box or as customers’ will.
- 3. Delivery time: For one set, the delivery time is 7-10 days, for 1-5 sets 20-25 days, above 5 sets usually negotiate.
- 4. Shipping company: MSK/MSC/APL/EMC/WANHAL/KLINE and We will remind you before boat arrive and offer you all the customs clearance documents on time.
Our customers
Common questions
A: Can we design the final shape we require?
--- Yes, our machine can produce different shapes by changing different molds.
B: What is moisture of feeding materials?
--- Coal powder: 15%-18%
Charcoal powder: 18%-20%
C: How many binders should we add?
--- It depends on your material, normally, 2%-3% is OK.
We are the manufacturer with over 30 years working experience.
Thanks for your interest in our machines, If you didn't get the suitable machine in this page, please email me your detailed requirement. Hope to have have the honor to cooperate with you in the bright future.
