High pressure hydraulic coal and charcoal briquetting machine
- 50 Set / Sets per Month
- Qingdao Shanghai Tianjin Lianyungang
- T/T L/C D/P D/A Credit Card PayPal
- Continuous carbonization machine for charcoal making
- Cheap Charcoal Briquette Machine(86-15978436639)
- Wholesale Price Charcoal Briquette Machine(86-15978436639)
- Ball Charcoal Briquette Machine(86-15978436639)
- Charcoal Briquette Making Plant(86-15978436639)
- Small Scale Charcoal Briquette Machine(0086-15978436639)
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | Hennan Meshen |
Model Number: | MBJ140/180/300/400 | Voltage: | 8.5KW-15KW | Power(W): | 380V/420V |
Weight: | According to different types | Dimension(L*W*H): | According to different types | Certification: | CE ISO |
Warranty: | 12 months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Coal Briquette Extruder Machine
-Firm structure
-Profesional factory
-Durable wearing part
-Offer guidance and test machine

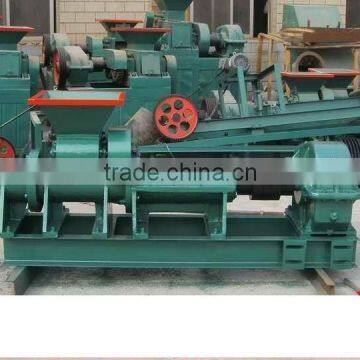

High pressure hydraulic coal and charcoal briquetting machine
Introduction of Coal Briquette extruder Machine:
1.work principle
Coal rods machine is made from powdered coal bar block machines in different shapes. Its working principle is: motor by the v-belt drive to the transmission, the transmission output shaft through a floating coupling power to the shaft, shaft of propeller pushing coal material forming die head, then produce the ideal high-pressure coal rods.
2. the structure characteristics
(1), the feed screw lead big, feed, auger lead small, save power.
(2), shaft and cylinder with rigid connection, high concentricity, anti reverse thrust, the machine is stable.
(3), need to seal part USES the fault structure, dirt by DuanCengChu missed.
(4), triangle belt transmission, smooth running, low noise, at the same time the overload protection function.
Connection with snap ring structure, the bolt head and cylinder structure, can choose according to the needs of user.
3.installation and commissioning
(1), before installation parts must be thoroughly cleaned and rust removal for transportation or storage longer appear, and check the parts is damaged.
(2), prior to commissioning the lubrication parts lubrication, oil is moderate. To check whether there is loose phenomenon, all bolts and tighten. Point machine, observe whether there is a foreign body or abnormal sound. All confirmed before driving operation. And check the rotation direction is correct.
Machine idle running for 3 to 5 minutes, everything can be normal feeding trials, the new machine feeding wants even, dry wet medium, general water cut from 12% to 15%).
4.the use and maintenance
(1), check whether the rotational parts before starting the flexible, with or without abnormal noise, idle machine 2-3 minutes continual production.
(2), raw material must be processed, the largest size is less than 3 mm, add water, add binder, curing agent, classics agitate retting system can be used only for 24 hours.
(3), feed opening appear jams, use wood or bamboo dredge, avoid by all means use the metal bar.
(4) bearing regularly injected lubricant, spinning machine parts, bearing parts temperature less than 60 ℃.
(5), before blanking, downtime to stay within the cylinder material crowded empty after downtime, remove head, remounted after cleaning, use again for work.
(6), to make the motor overload operation, it is recommended that users to install power meter, voltmeter adjustment according to the current feed rate and moisture content.
Main parameters of coal and charcaol briquette extruding machine
Model | MBJ140 | MBJ180 | MBJ300 | MBJ400 |
Capacity | 1-2T/H for coal; 0.5-1T/H for charcoal | 2-3T/H for coal; 1-1.5T/H for charcoal | 3-5T/H for coal; 1.5-2.5T/H for charcoal | 6-10T/H for coal; 3.0-5.0T/H for charcoal |
Diameter of mould | 20-40mm | 20-60mm | 20-80mm | 20-80mm |
Main shaft speed | 46-60r/min | 39-60r/min | 35-60r/min | 35-60r/min |
Number of Spiral Blades
| 4 | 4 | 4 | 4 |
Motor | Y160m-4 11KW Y160L-4 15KW | Y180m-4 18.5KW Y180L-4 22KW | Y225s-4 37KW Y225m-4 45KW | Y315m-4 160KW |
Reducer | ZQ350 | ZQ400 | ZQ650-750 | ZQ850 |
Bearing | 7511,211,210,1305 | 7614,314,313,1206 | 32320,320,319,1207 | 32322,322,321 |
Note | Spindle speed is the lowest speed, according to the current size and load weight, increase the level of appropriate yield
|
Finally product
Packaging&shipping
Payment :30% TT in advance, 70%6TT balance pay off before delivery.
Packing: The machine and wear parts will protected by plywooden box or as customers’ will.
Delivery time: For one set, the delivery time is 7-10 days, for 1-5 sets 20-25 days, above 5 sets usually negotiate.
Thanks for your interest in our machines and please contact us freely if you have any questions ot requirements by the following contact information. Your visit of our factory to test the machines you like will be warmly welcomed. Hope to have have the honor to cooperate with you in the bright future.
