Specifications
Charcoal Briquette Extruder Machine
1.CE BV ISO certificate

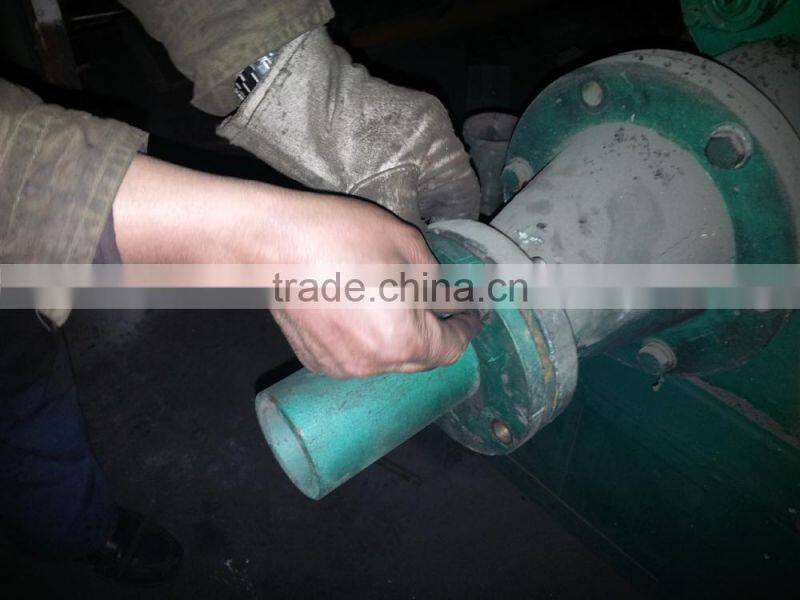

2.moulds can be customized
3.stable running
Coal And Charcoal Briquette Extruder Machine , Coal And Charcoal Stick Extruder Machine , Coal And Charcoal Extruder Machine
Product description of charcoal briquette extruder machine:
The Charcoal briquette extruder machine can be used to suppress coal, iron, coke, aluminum powder, iron oxide skin, slag, gypsum, tailings, sludge, kaolin, activated carbon, coke powder and other ferrous powder, non-ferrous powder. It is widely used in refractory, power plants, metallurgy, chemical, energy, heating industry. The finish products with the characters of energy saving, easy to transport, increase of wastes utilization, and it's with good economic and social benefits.
The characteristics of charcoal briquette extruder machine

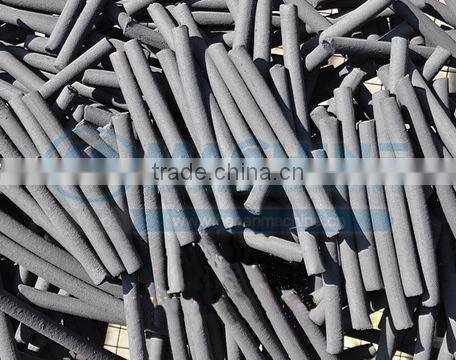

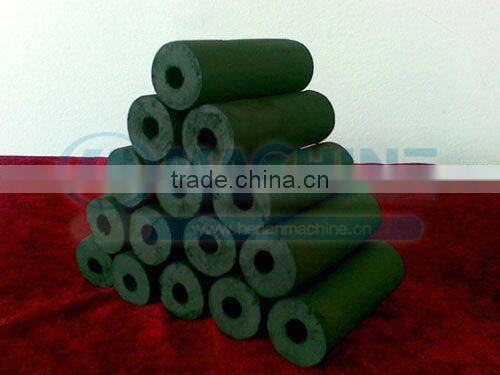

Our briquettes extruder feed the ratio and retting coal powder mixture into a nitrogentreated barrel by the extrusion of principle , which will compress into section for round, hexagon form or other shape.The final coal/charcoal rods have a certain mechanical strength by formed in this equipments
Working process of charcoal briquette extruder machine
Detailed parameters of all the models for your checking:
Model | MBJ140 | MBJ180 | MBJ300 | MBJ400 |
Capacity | 1-2T/H for coal; 0.5-1T/H for charcoal | 2-3T/H for coal; 1-1.5T/H for charcoal | 3-5T/H for coal; 1.5-2.5T/H for charcoal | 6-10T/H for coal; 3.0-5.0T/H for charcoal |
Diameter of mould | 20-40mm | 20-60mm | 20-80mm | 20-80mm |
Main shaft speed | 46-60r/min | 39-60r/min | 35-60r/min | 35-60r/min |
Number of Spiral Blades
| 4 | 4 | 4 | 4 |
Motor | Y160m-4 11KW Y160L-4 15KW | Y180m-4 18.5KW Y180L-4 22KW | Y225s-4 37KW Y225m-4 45KW | Y315m-4 160KW |
Reducer | ZQ350 | ZQ400 | ZQ650-750 | ZQ850 |
Bearing | 7511,211,210,1305 | 7614,314,313,1206 | 32320,320,319,1207 | 32322,322,321 |
Note | Spindle speed is the lowest speed, according to the current size and load weight, increase the level of appropriate yield
| |||
Packaging&shipping
Payment :30% TT in advance, 70%6TT balance pay off before delivery.
Packing: The machine and wear parts will protected by plywooden box or as customers’ will.
Delivery time: For one set, the delivery time is 7-10 days, for 1-5 sets 20-25 days, above 5 sets usually negotiate.
Shipping company: MSK/MSC/APL/EMC/WANHAL/KLINE and We will remind you before boat arrive and offer you all the customs clearance documents on time.

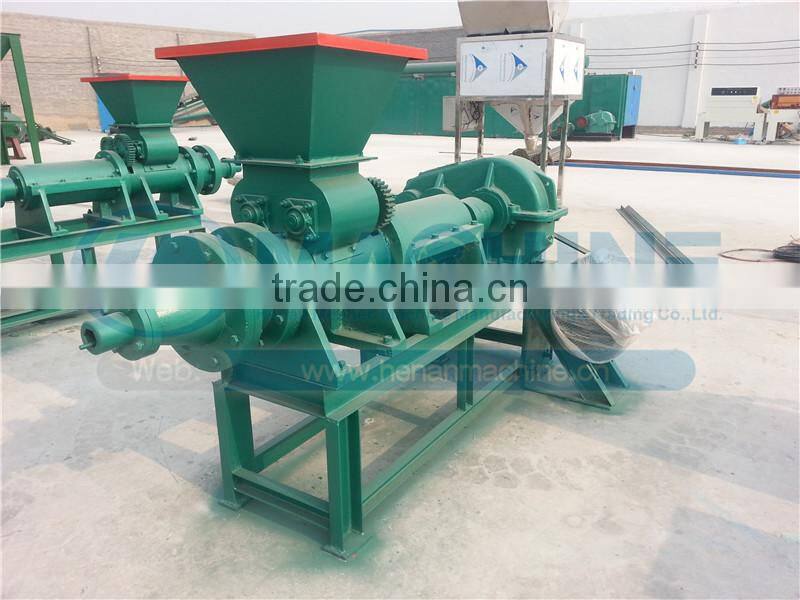

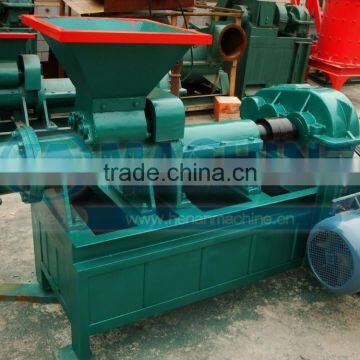

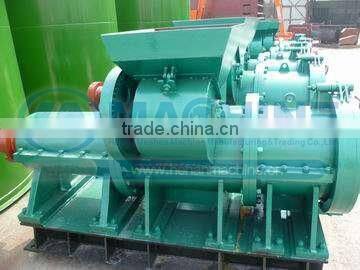

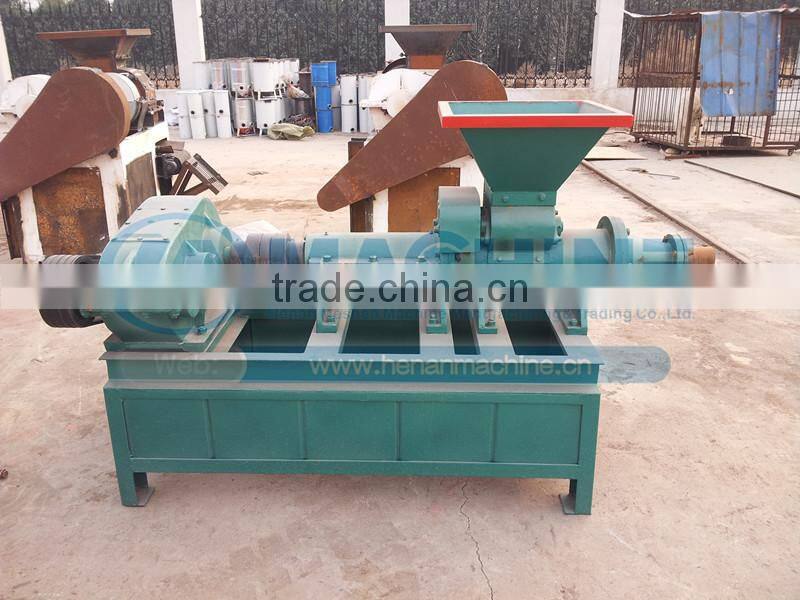

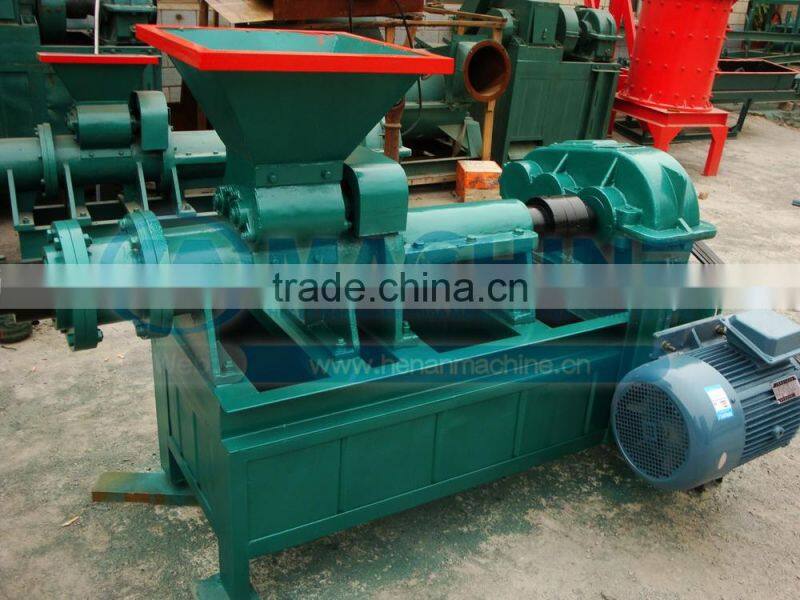

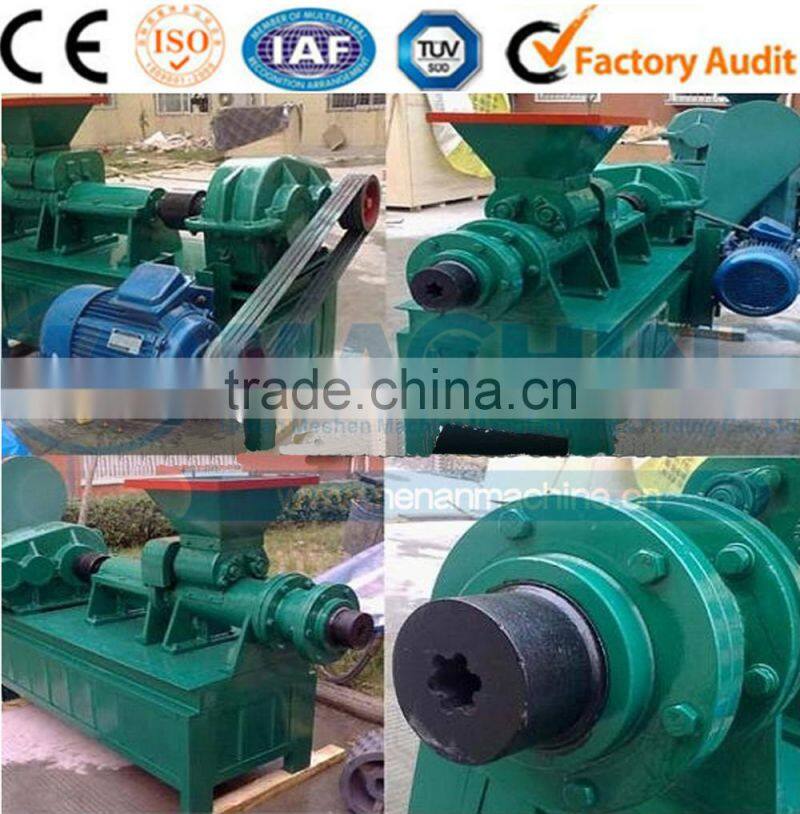

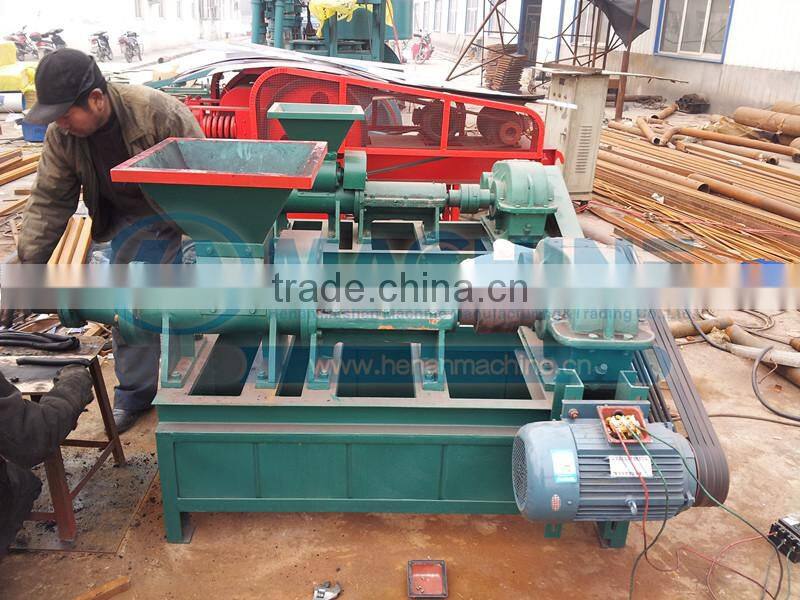

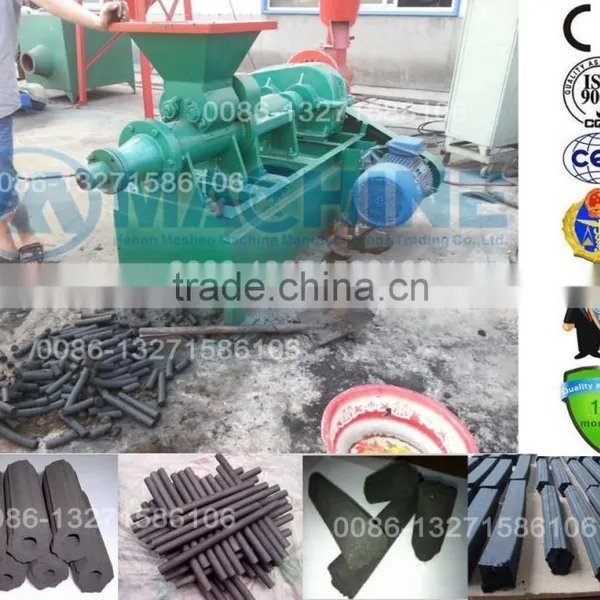

Product picture
We can guide you to install the products or directly send our engineer in your country for the installation.
