Hydraulic Vertical Turbine Pump

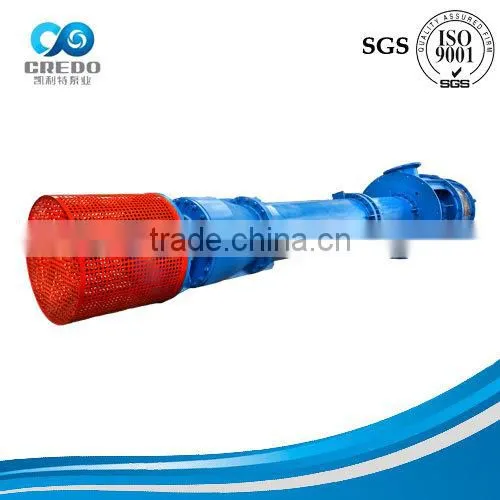

VCP Series Vertical Turbine Pump

Our products includes: Horizontal/Vertical Split case pump, Vertical Turbine Pump, Mixed flow pump, Vertical self-priming pump etc, which are widely used in energy generating, water supply and drainage, Mine& Metallurgy & steel industry, Power plant, fire control system, etc.

Energy Saving, High Efficiency with wide range, low noise & vibration. Optimized hydraulic model redesigned according to the market, high efficiency with wide range, flow stable & low vibration, multi stage model available, and adopt the sleeve coupling mode to reduce the vibration.

Main Features

1. Wide range high efficiency area

2. Bearing block separate from pump body easy to maintenance

3. Dynamic and static testing for all rotor parts

4. Pump shaft is a type of full sealing structure which can protect shaft no touch liquid, bearing parts equip with oil lip sealing and V-type sealing ring, which can resist leaking, dust, water and humidity.

5. Shaft sealing system can be gland packing or mechanical seal, and easy to achieve gland packing interchange with single mechanical without any modification.

6. Lubrication system can be grease or oil lubricating system.

7. Inlet/out flange could be by ISO, DIN, BS, ANSI, KS standards etc.

8. Pump rotation can be changed from CW to CCW without any modification.

9. Q-H-P performance test according to ISO9906:2013; NPSHr test according to ISO9906; Vibration limit ISO 10816-7 II grade

Name: VCP Series Vertical Turbine Pump

Brand: CREDO/OEM

Original: CHINA

Unique design made by our own R&D department, dynamic and static testing for all rotor parts contribute to high quality pump. We also can do customized pumps for our clients.
