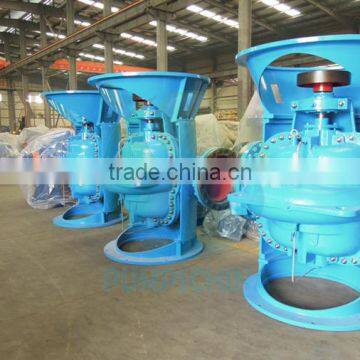

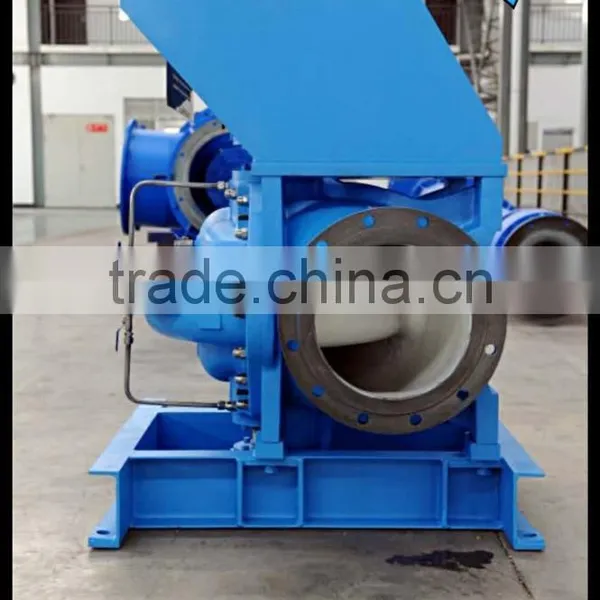

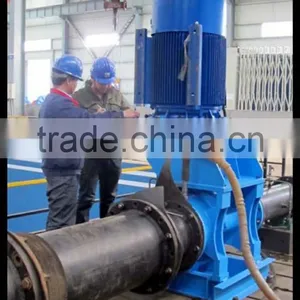

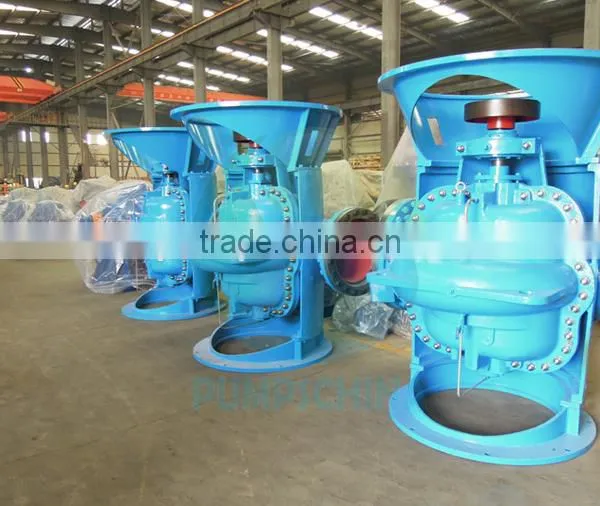

CPSV Series Double Suction Split Case Pump-Vertical Mounted

CPSV series Double suction split case pump-Vertical Mounted

1,What is Credo CPSV pumps ?

The CPSV series vertical split case double suction centrifugal pumps are available in a wide selection of metallurgical and mechanical options to meet specific pumping requirements.

Pump casings are horizontally split at the shaft centerline to simplify inspections and maintenance. Double suction impellers are dynamically and hydraulically balanced and are available in bronze, cast iron, and other special alloys for specific applications.

Shafts are precision ground and cartridge type bearing housings allow a short bearing span for minimum shaft deflection. Oversized heavy duty ball bearings provide long, trouble-free service in continuous operations.

Sleeve bearing: product lubed graph alloy GM343.3 grade journal bearing is press fitted in journal bearing housing. Spiral grooves flush contaminates and particles with recirculation line.

Sleeve bearing housing: compact robust construction has 360-degree machined register fit.

2,Application

a) Waterworks
b) Circulation water for air-condition
c) Water supply for industry and building
d) Irrigation and drainage pumping station
e) Power station

3,Feature

a) Compact structure
b) Attractive design
c) High efficiency, steady performance
d) High flow, medium pressure
e) High concentricity of components

4,The material of main parts of  Credo CPS pumps

Pump casing & body: cast iron.cast steel, stainless steel, duplex etc

Impeller also may be cast iron, cast steel,stainless steel, bronze or according to customers requirements.

Shaft: 40Cr & 2Cr13

5,Structure of Credo CPSV pumps
