Help CenterNew Technology Raw Oil To Diesel Refinery Distillation Equipment
Related Products
-
2016 NEW TYPE EASY USE Oil Residue Distillator /Distillation Plant/Getting Diesel And GasolineUS$ 30,000 - 60,000MOQ: 1 Set -
Direct Manufacturer,Advanced Technology,1-15 Tons of Economical Small Distillation EquipmentUS$ 50,000 - 80,000MOQ: 1 Set
-
85%-90% Oil Yied ,Continuous Used Engine Oil Recycling Plant&used Motor Oil Recycling Machine&waste Oil Refining PlantUS$ 30,000 - 75,000MOQ: 1 Set
-
Capacity 3TON.5TON.10TON Crude Oil Distillation Machine With CE/ISO Waste Oil Distillation EquipmentUS$ 35,700 - 69,570MOQ: 1 Set
-
DAYI Fully Continue Crude Oil Refinery Plant Tyre Oil Distillation Plant Pyrolysis Oil Distillaiton PlantUS$ 35,700 - 69,570MOQ: 1 Set

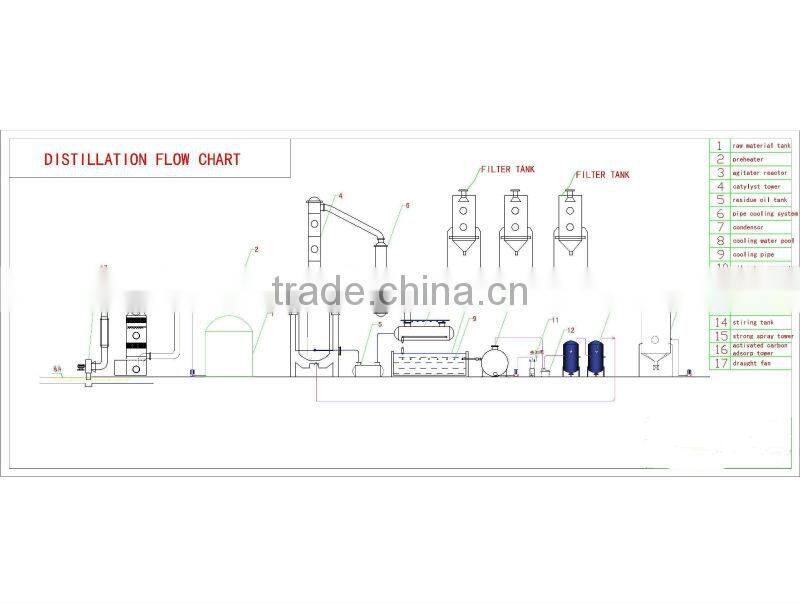

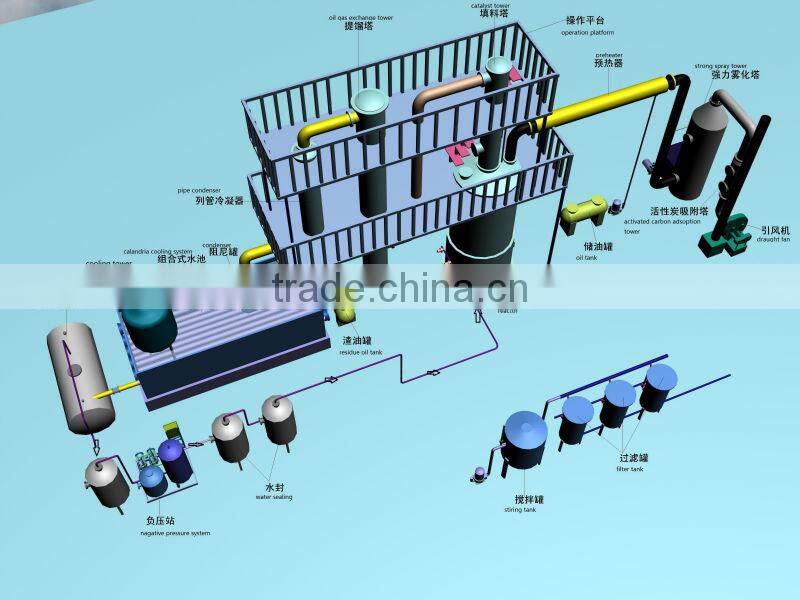

Distillation Plant Major parts list
1.Reactor |
2.Catalyst tower |
3.Distillation tower |
4.Heat exchanger |
5.Condenser cooling system |
6.Filter |
7.Cooling pool |
8.Light component oil collection tank |
9.Middle Component oil collection tank |
10.Vacuum system |
11.Residue oil tank |
12.Dust remove disposal device(strong spray tower,draft fan,active carbonabsorption tower,purify water pool) |
13.water sealing |
14.strring tank |
15.Operation plat form |
16.Power Control cabinet |
17.Other accessory |
Distillation plant technical parameter
NO |
Name |
parameter |
1 |
The raw materials: |
tires oil, plastics oil and oil sludge waste engine oil,waste motor oil |
2 |
Total Capacity: |
5 tons/day,10 tons/day.,20 tons/day |
3 |
the size of reactor: |
2.2*4.5m, 2.2*5.1m,2.2*30m |
4 |
Average oil productivity: |
about 80% |
7 |
Average waste-gas productivity: |
5% |
10 |
Feeding time: |
1-2 hour |
11 |
Design pressure: |
7 Pa |
Distillation reactor
Type |
Technical parameter |
||||
Steel thickness(mm) |
daily disposal(T) |
daily power(°C) |
daily water(m3) |
daily coal(kg) |
|
8m3/5T |
12 |
5 |
80 |
0.5 |
500-600 |
12m3/8T |
12 |
8 |
120 |
0.8 |
700-900 |
15m3/10T |
16 |
10 |
180 |
1.5 |
1200-1400 |
30m3/20T |
16 |
20 |
280 |
2.5 |
1500-1600 |
Catalyst tower
Type |
Technical parameter |
|||
thickness of tower(mm) |
dia. of tower(φ) |
high of tower(mm) |
tray quantity of tower(layer) |
|
8m3/5T |
6 |
600 |
2800 |
3 |
12m3/8T |
8 |
700 |
3600 |
3 |
15m3/10T |
10 |
800 |
3800 |
4 |
30m3/20T |
10 |
800 |
4600 |
4 |
