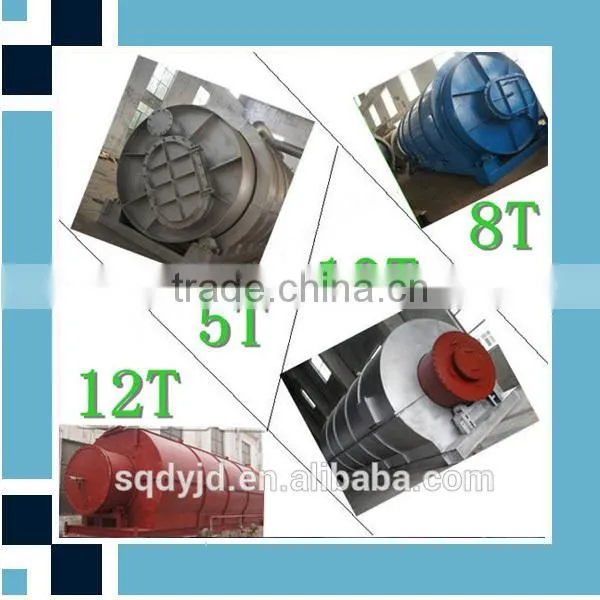

Plant Specification
Specification | Capacity | Raw material | Heating material | Working time (hrs) | Shipped by |
DYLY-2200-6000 | 5Ton | Waste tyres Cables Plastics Rubber Oil sludge |
Wood,coal ,oil,gas | 12 | 2*40HQ |
DYLY-2600-6000 | 8Ton | 15 | 1*40HQ+1*40FR | ||
DYLY-2600-6600 | 10Ton | 18 | 1*40HQ+1*40FR | ||
DYLY-2800-6000 | 10Ton | 18 | 1*40HQ+1*40FR | ||
DYLY-2800-6600 | 12Ton | 20 | 1*40HQ+1*40FR | ||
DYLY-2800-6600 | 15ton | Medical waste |
| 22 | 1*40HQ+1*40FR |
Contiuous plant | 20Ton | Other waste |
| 24 | 3*40HQ |
Contiuous plant | 60Ton |
|
| 24 | 5*40HQ |
Power required
model | Draft fan | speed reducer | water pump | oil pump | 4blowers |
2200*6000 | 4kw | 3kw | 1.5kw | 1.5kw | 1kw |
2200*6600 | |||||
2600*6000 | 7.5kw | 5.5kw | |||
2600*6600 | |||||
2800*6000 | |||||
2800*6600 |
Working times
Model | Feeding | Processing | Cooling | Discharge | total |
2200*6000 | 2hr | 7-8hr | 2hr | 2hr | 14hr |
2200*6600 | 2hr | 8hr | 2hr | 2hr | 14hr |
2600*6000 | 3 hr | 10 hr | 3 hr | 3 hr | 19 hr |
2600*6600 | 3 hr | 11 hr | 3 hr | 3 hr | 20 hr |
2800*6000 | 3 hr | 12 hr | 3 hr | 3 hr | 21 hr |
2800*6600 | 3 hr | 13-14 hr | 3 hr | 3 hr | 23 hr |

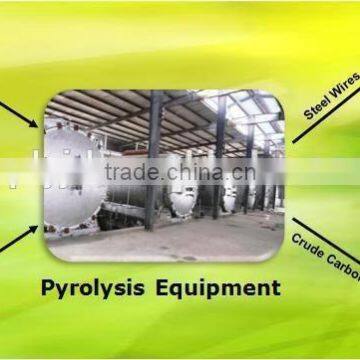

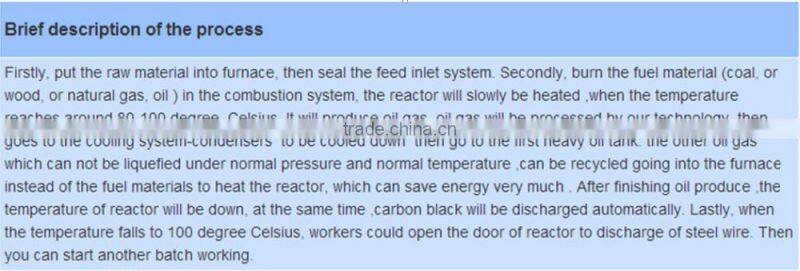

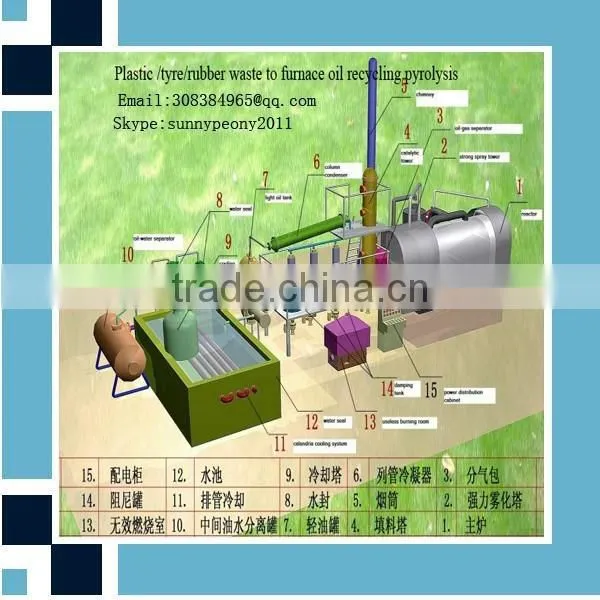

Work flow:

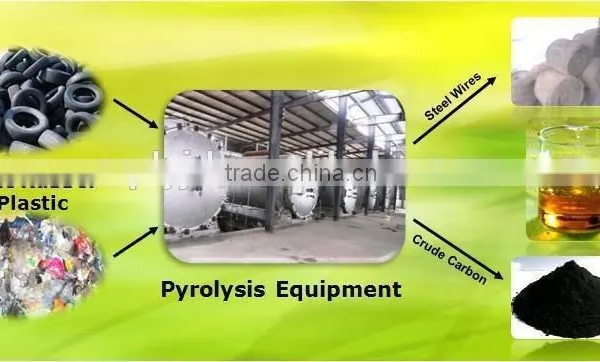

Final Product and usage
output | usage |

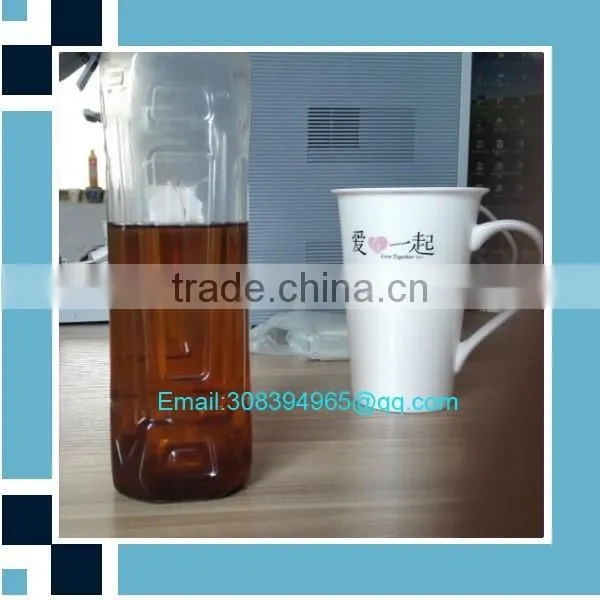

crude oil(45%-55% | Burn as fuel oil : power plant factory Cement factory Boiler factory and so on Refine to diesel : Low speed engine like digging machine road roller loading machine and so on |
carbon black(30%-35%) | Make carbon black bars through carbon black pellet machine as fuel
grinding to Increase the mesh of carbon black to make new tyre ,painting and so on |
Payment Term And Delivery:
30%TT deposit payment , balance by sight LC
After getting deposit payment , loading plant with15 days
We send engineer to your side for guiding installation for free and training your workers for free
1.Design the installation drawings according to your site
2.For each set of waste plastic pyrolysis oil refining system, one technician will be sent to guide your installation, test the machine and train your workers. Besides, we will provide one month's service for free. After one month, the salary for the technician will be USD65.00/day.
3.1 year warranty, engineers available to service at any time.
4.Periodical call visit, to make sure there is no problems of the equipment.
5.Design specific maintainence program according to different situation of your plant.
How can we make sure our plant is safe?
A.)we have many years experience to design and manufacturing plants, it is mature technology
and as days goes by , we have better and better way for plant update.
B.)We have monitoring system in our plant ,everty data can be in control
C)Safety valves can be work in emergency
D.)Auto alarming device also in our system
How can we discharge carbon black ?
first there is a device inside reactor ,carbon will be out of reactor automatic
then there is a carbon discharge machine out of reactor ,the whole slage is in sealing way,carbon discharge in sealing conditiona and automatic, no need labour , no carbon fly in air
