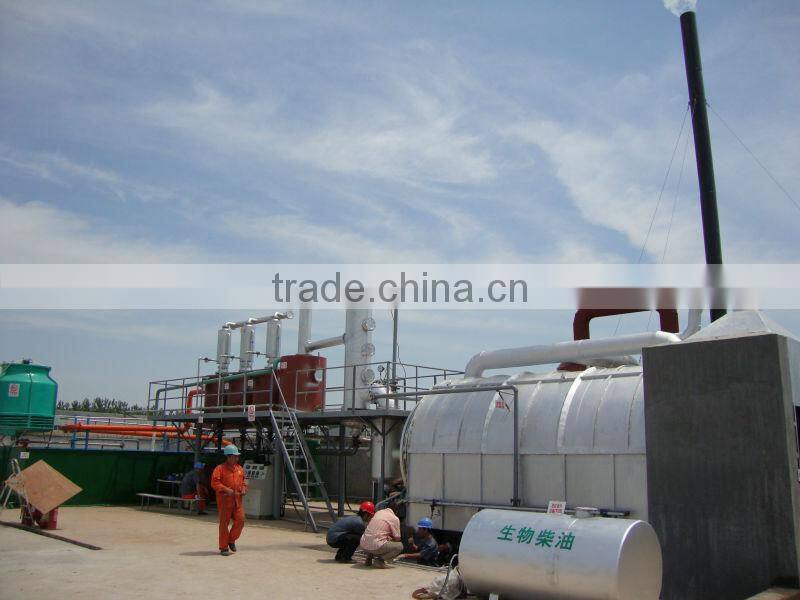

Unti-explosion Extracting Oil From Wast Scrap Tyre Pyrolysis Plant 20TPD
Put tyres/plastic into pyrolysis reactor, after heating with catalyst under vacuum condition ,oil steam is generated , after oil seperator ,light oil and heavy oil seperated and go into cooling system ,at the same time carbon slag-out automatically As for oil steam, the liquable part come tyre oil after cooling, non-liquable part come to heating chamber burning as fuel.
Technical parameter of Pyrolysis Machine | ||||
| Items | Contents | ||
1 | Equipment type | DYJD-2260 | DYJD2460 | DYJD-2660 |
2 | Raw material | tires/Plastic | tires/Plastic | tires/Plastic |
3 | Structural form | Horizontal rotation | Horizontal rotation | Horizontal rotation |
4 | 24-hour Capacity | 6 ton | 8 ton | 10 ton |
5 | Oil yield | 2.7ton | 3.6 ton | 4.5 ton |
6 | Operating pressure | Normal | Normal | Normal |
7 | Material of Reactor | Q345R | Q345R | Q345R |
8 | Thickness of Reactor | 16mm | 16mm | 16mm |
9 | Rotate speed of Reactor | 0.4turn/minute | 0.4turn/minute | 0.4turn/minute |
10 | Total power | 20KW | 20KW | 20KW |
11 | Mode of cooling | Water cooling | Water cooling | Water cooling |
12 | Cooling area of condenser | 40sqm | 40sqm | 65sqm |
13 | Kind of transmission | Internal gear drive | Internal gear drive | Internal gear drive |
14 | Noise dB(A) | ≤85 | ≤85 | ≤85 |

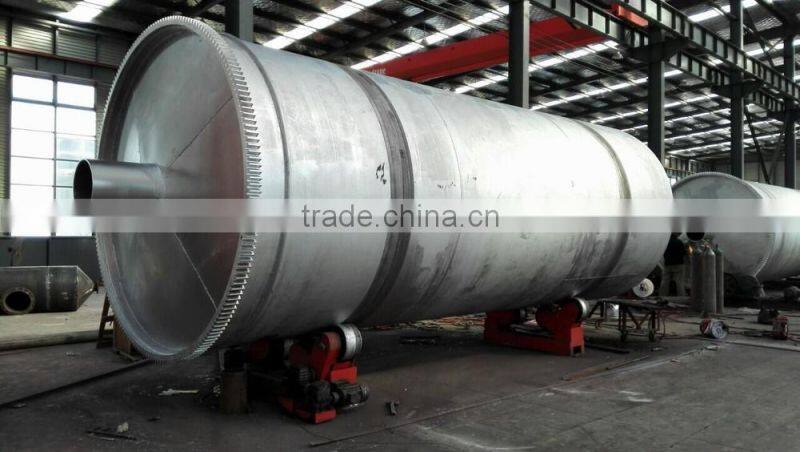

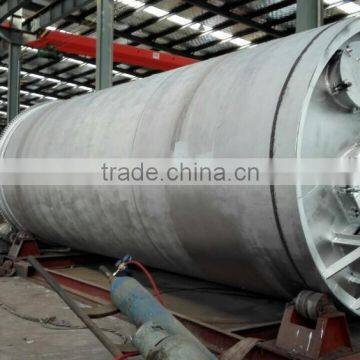

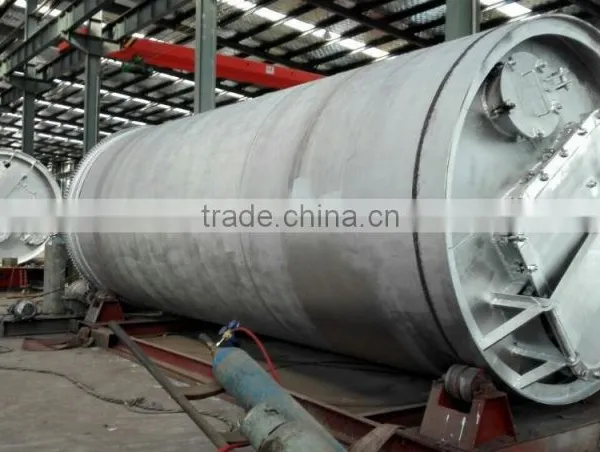

15 | Size of Reactor(D×L) | 2200×6000 | 2400×6600 | 2600×6600 |
16 | Working form | Intermittent operation | Intermittent operation | Intermittent operation |
17 | Delivery time | 20days | 20days | 20days |
18 | Weight | 25T | 30T | 35T |
output | usage |
crude oil(45%-55%) | Burn as fuel oil : power plant factory Cement factory Boiler factory and so on Refine to diesel : Low speed engine like digging machine road roller loading machine and so on |
carbon black(30%-35%) | Make carbon black bars through carbon black pellet machine as fuel
grinding to Increase the mesh of carbon black to make new tyre ,painting and so on |
steel wire(10%) | The steel wire from waste tyre can be re-sale to steel factory |
combustible gas(5%) | recycled to heat the reactor as fuel.save energy |

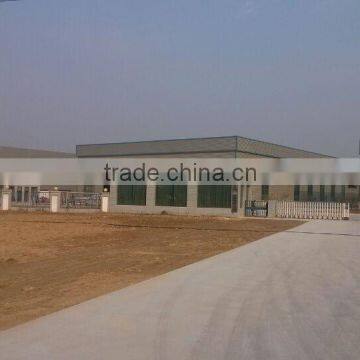

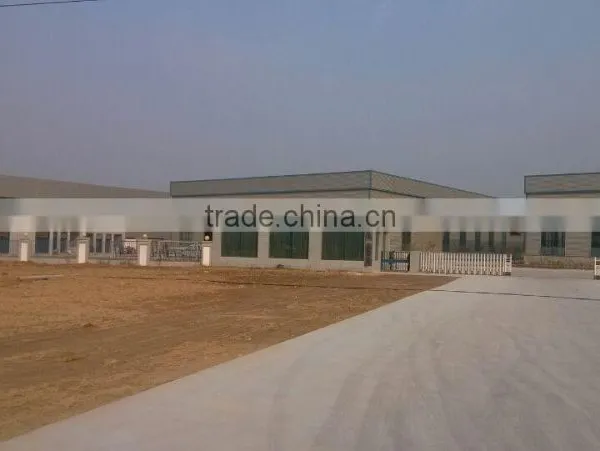

Shangqiu Dayi Electromechanincal Technology Co.,Ltd
Dayi is the top 10 enterprise in disposing waste rubber and plastic and has been cooperated with one South Korea company to dispose waste plastic . The company has gained rich experience and achievement in processing waste solid. This project in dealing with city living waste has been approved by South Korea government and the continuous equipment has been under testing in Korea. The production line of processing level 2 waste tyre with automatic control has been under testing in Hong Kong.
Our users | |||
Our domestic users | Shandong,Fujian,Hunan,Henan,Yunnan,NeiMonggol,Chongqing, Hongkong,Taiwan | ||
Oversea users | The Middle East | Iran,Iraq,Lebanon | |
East Asia | Korea | ||
Europe | Poland,Turkey | ||
Africa | Mauritius | ||
South America | Brazil | ||
Southeast Asia | Malaysia, Indonesia,Vietnam,Philippine,Thailand | ||
South Asia | Pakistan,India | ||
1.Safety.
A. our machine with full safety device such as safety valves, temperature meter pressure meter.
B. Auto alarming
C. Reactor take safety design.
2.High oil rate. Two style cooling system. Water pool and condenser cooling.
3. All material are national standard, quality is guaranteed.
4.Carbon discharge fast.We use now technology to discharge carbon black.
5.Avoid complicated design ,reasonable and easy design , more easy and efficiency
6.Short delivery time.
7.After-sale service guaranteed.We have after-sale service office in India.
For all customer we service in 24 hours.
8.Waste gas store technology, saving fuel energy
9.New technology,making reactor cool fast, shorten 3 hours.
10.New technology ,taking natural gas as fuel, more efficiency
11.Competitive price.
