Green Type New Conditon Machine Refining Tyre Wast To Fuel Pyrolysis Plant 10-12Ton /Day
1.Plant specification
Specification |
Capacity |
Raw material |
Heating material |
Working time (hrs) |
Shipped by |
DYLY-2200-6000 |
5Ton |
Waste tyres Cables Plastics Rubber Oil sludge |
Wood,coal ,oil,gas |
12 |
2*40HQ |
DYLY-2600-6000 |
8Ton |
15 |
1*40HQ+1*40FR |
||
DYLY-2600-6600 |
10Ton |
18 |
1*40HQ+1*40FR |
||
DYLY-2800-6000 |
10Ton |
18 |
1*40HQ+1*40FR |
||
DYLY-2800-6600 |
12Ton |
20 |
1*40HQ+1*40FR |

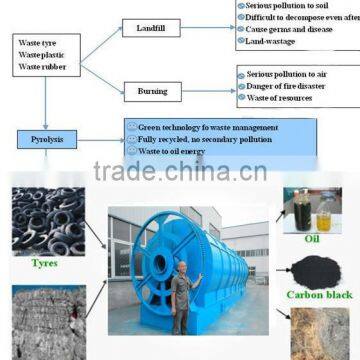

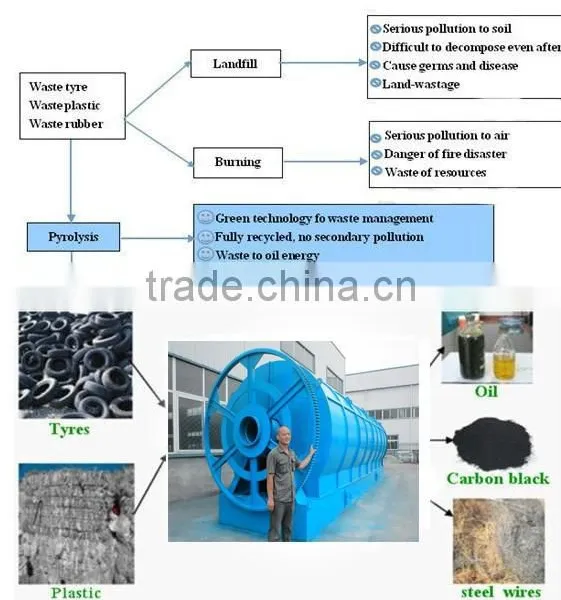

2.How to treat 3-industry waste?
a> waste-gas : during the process of pyrolysis , there will cause 5% waste-gas, but the waste-gas can be burnt again in the reactor as fuel materials to keep the temperature in the reactor, have you noticed the green hole in the reactor, the waste-gas enter into the hole and is burnt again. So there is no waste-gas at all.
b> Waste-water: there is a water-recycling system in the set of plant, all the process, the water can be used circulatory. So there is no waste-water in the process of pyrolysis
c> Bad smell: there will be some chemical substances feed into the catalysis tower and burnt together with the tires. It can get rid of bad smell and improve the quality of oil.
d> Emission controller: there is emission controller in the set of plant, it won’t cause dirty dust in the process of pyrolysis
3.One Batch Working Time
A. Feeding time: about 2 hours
B.Heating time: about 10 hours
C.Cooling time about 3 hours
D..Slagging time about 3 hours

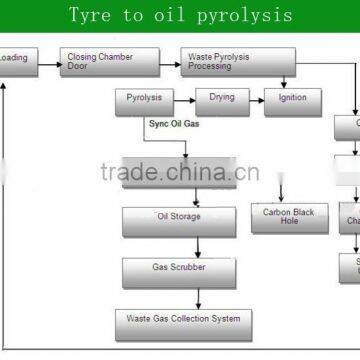

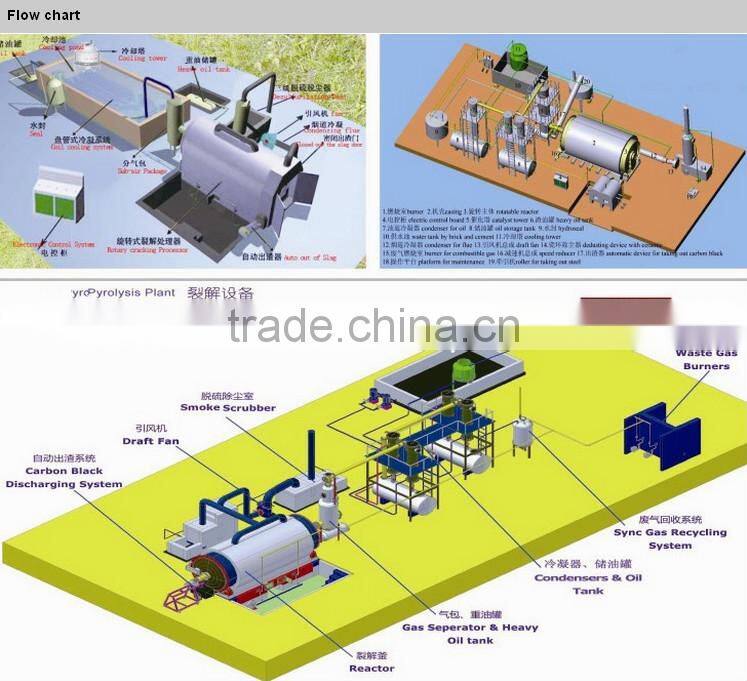

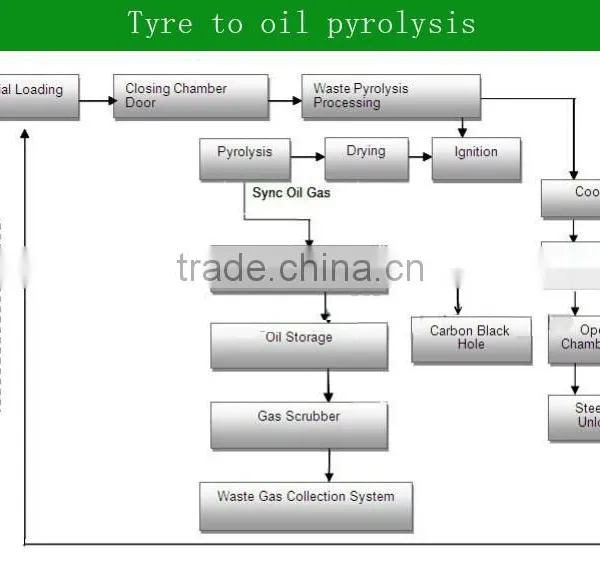

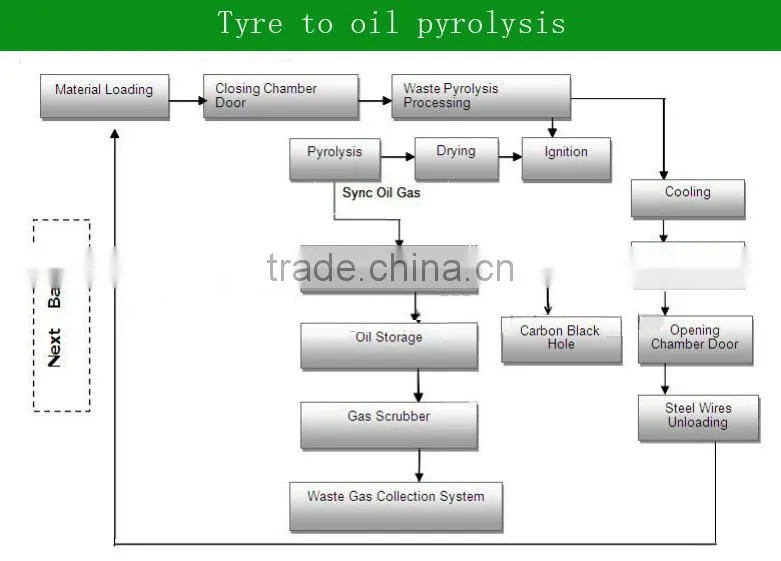

4.Working Process

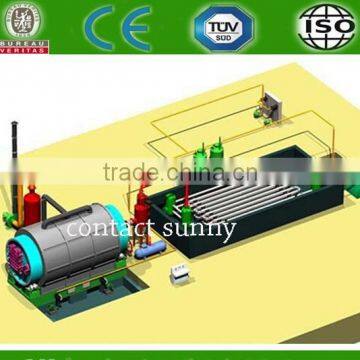

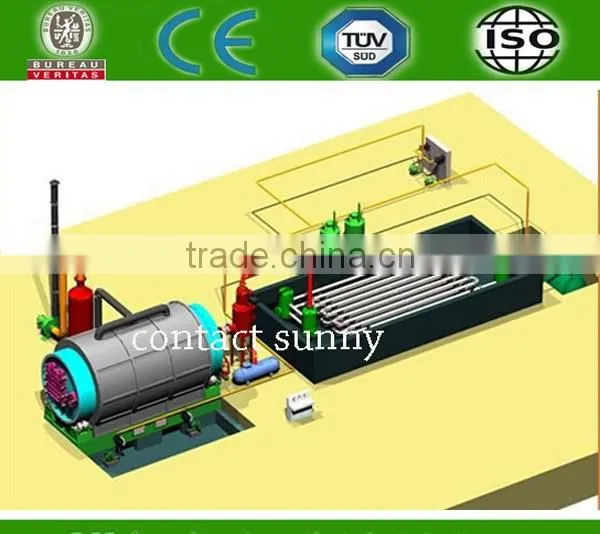

5.Different Configuration For This Medical Waste Recycling Plant

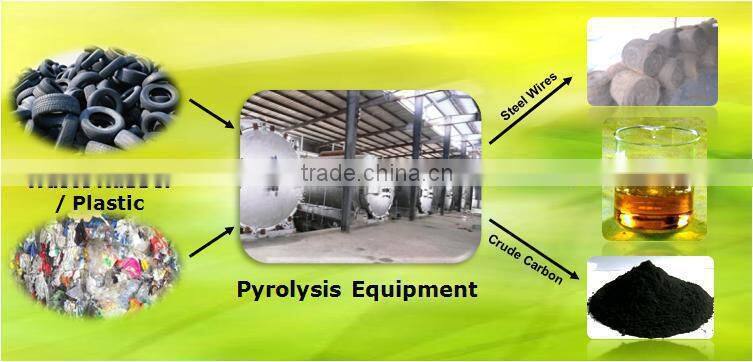

6.About The Final Product

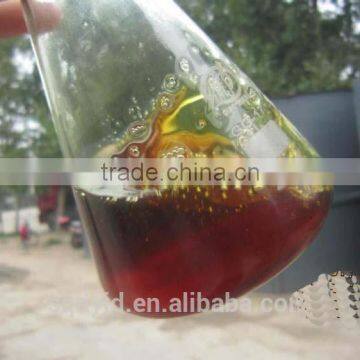

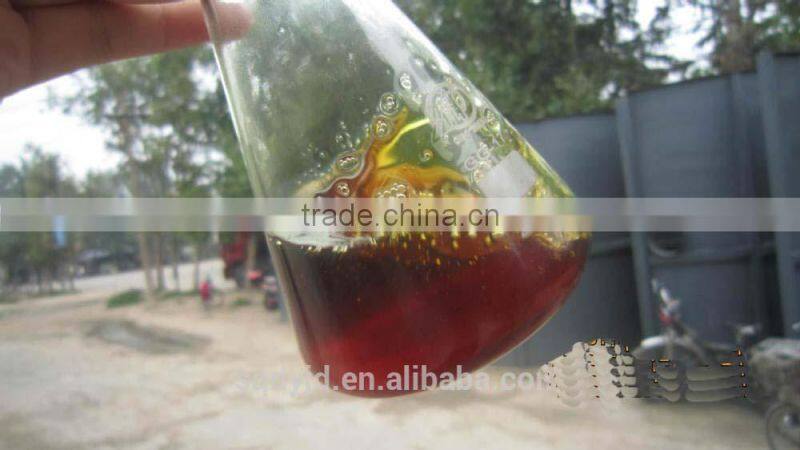

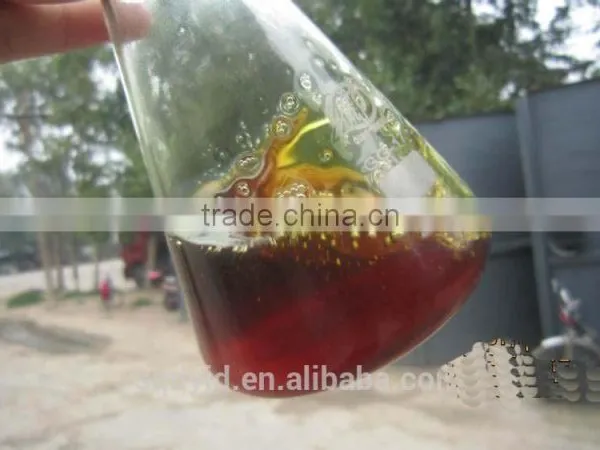

A.About light oil, which is fuel oil,
can be used for boiler for heating as furnace oil
can be refined getting diesel from it
B. About Slagg
slag out is auto matic
our design is new techch, carbon discharge is in sealing way, no carbon powder fly in air
slag can be used for brick making or refining deep to sale
Profit Analysis Report of waste tires oil extraction machine | ||
1set 10 tons capacity machine as sample | ||
NO. |
Item |
Cost of per batch |
1 |
10 tons of waste tire |
10T* 130$/T= 1300$ |
2 |
0.3 tons of coal |
0.3* 97.6$/T= 29.28$ |
3 |
water |
0.4$ |
4 |
electricity |
15.6$ |
5 |
workers |
4* 16.3$= 65.2$ |
total cost |
1410.48$ |
|
NO. |
Item |
Income |
1 |
Crude oil (40%-45%) |
10T* 40%* 715.5$/T= 2862$ |
2 |
Carbon black (30%-35) |
10T* 30%* 73$/T= 219$ |
3 |
Steel wire (10%-15%) |
10T* 10%* 300$/T= 300$ |
4 |
Gross profit |
3381$ |
5 |
Daily net profit |
1970.52$ |
6 |
Monthly net profit |
43351.44$ |
7 |
Yearly net profit |
433514.4$ |

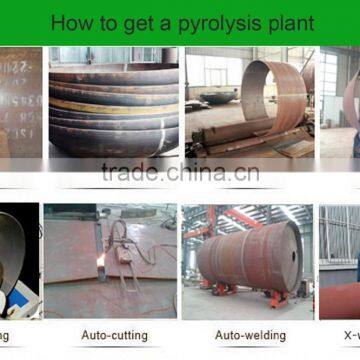

7.About us:
A.5 years experience in manufacturing this pyrolysis plant
B. we are Top 10 enterprises in recycling waste plastic and rubber
C.Our company is about 133400 square meter ,and the workshop is 58000 squremeter

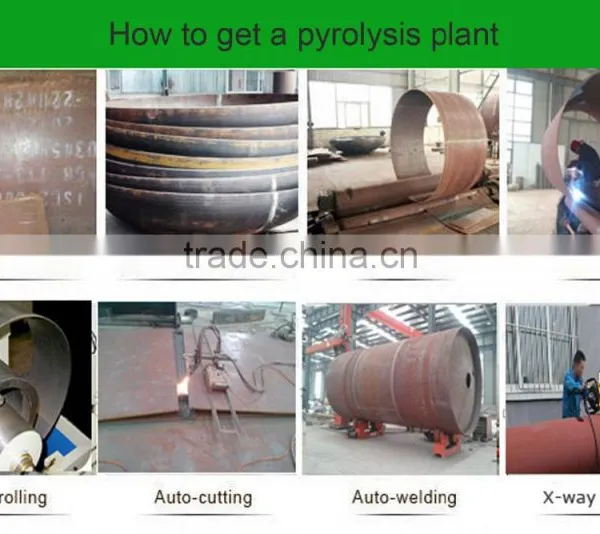

we have advanced machine for producing pyrolysis plant
D.our users are over the world.
8.Running plants:
