1.Technical Parameters For City Waste Treatment Machinery /Medical Waste Treatment Equipment And Waste Plastic To Energy Recycling Plant
Reactor size | 2800*6000mm |
Reactor material | Q345R |
Reactor thickness | 16MM |
Reactor structure | Horizental |
Working type | Batch type |
Working round area | 400-500M2 |
Labours required | 3-4 |
Batch time required | 18-20Hours |
Cooling way | Water cooling |
Water required | Water is recycling almost no consumption (no more than 5kgs) |
Coal required | 700KGS |
Power required | 300kw |
Working pressure control | No more than 0.3p |
Effective temperature | 200-400 ℃ |
Material can be used for pyrolysis | Tyre,rubber,cable,plastic, Living waste,cooking waste,oil sludge ETC |
Motors | Reducer5.5kw,fan7.5kw, blower4*0.25kw Oil pump1.5kw,waterpump1.5kw |
2. City Waste Treatment Machinery /Medical Waste Treatment Equipment And Waste Plastic To Energy Recycling Plant Features
Environmental protection
a> waste-gas : during the process of pyrolysis , there will cause 5% waste-gas, but the waste-gas can be burnt again in the reactor as fuel materials to keep the temperature in the reactor, have you noticed the green hole in the reactor, the waste-gas enter into the hole and is burnt again. So there is no waste-gas at all.
b> Waste-water: there is a water-recycling system in the set of plant, all the process, the water can be used circulatory. So there is no waste-water in the process of pyrolysis
c> Bad smell: there will be some chemical substances feed into the catalysis tower and burnt together with the tires. It can get rid of bad smell and improve the quality of oil.
d> Emission controller: there is emission controller in the set of plant, it won’t cause dirty dust in the process of pyrolysis
3.One Batch Working Time For City Waste Treatment Machinery /Medical Waste Treatment Equipment And Waste Plastic To Energy Recycling Plant
A. Feeding time: about 2 hours
B.Heating time: about 10 hours
C.Cooling time about 3 hours
D..Slagging time about 3 hours

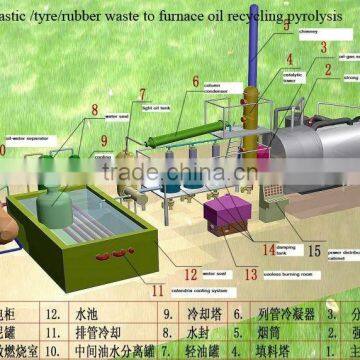

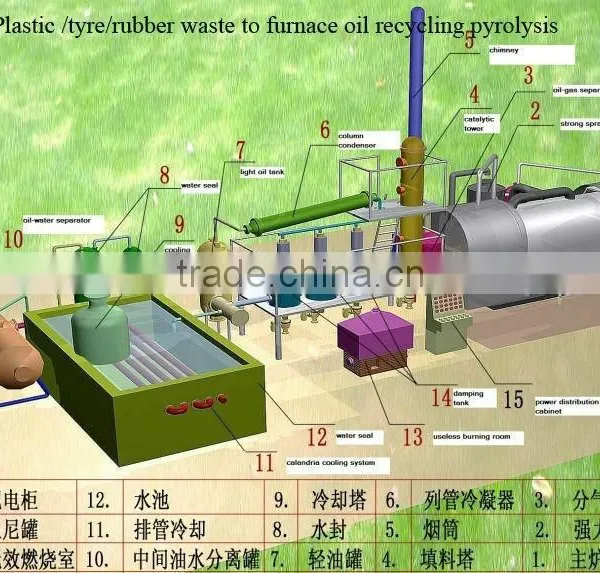

4.Working Process For City Waste Treatment Machinery /Medical Waste Treatment Equipment And Waste Plastic To Energy Recycling Plant

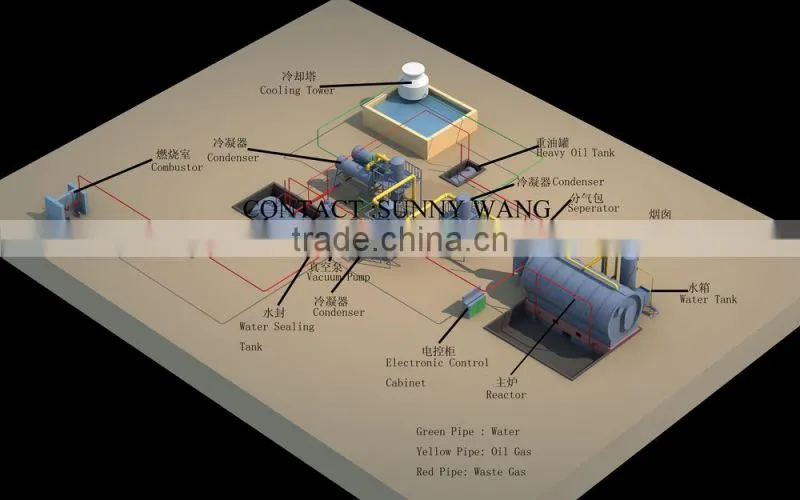

5.Different Configuration For City Waste Treatment Machinery /Medical Waste Treatment Equipment And Waste Plastic To Energy Recycling Plant
6.About The Final Product For City Waste Treatment Machinery /Medical Waste Treatment Equipment And Waste Plastic To Energy Recycling Plant
A.About light oil, which is fuel oil,
can be used for boiler for heating as furnace oil
can be refined getting diesel from it
B. About Slagg
slag out is auto matic
our design is new techch, carbon discharge is in sealing way, no carbon powder fly in air
slag can be used for brick making or refining deep to sale
7.About us:
A.5 years experence in manufacture this pyrolysis plant
B. we are Top 10 enterprises in recycling waste plastic and rubber
C.Our company is about 133400 square meter ,and the workshop is 58000 squremeter
we have advance machine for producing pyrolysis plant
D.our users are over the workd.

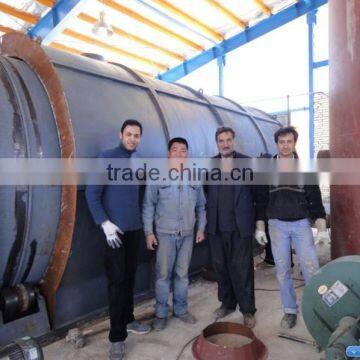

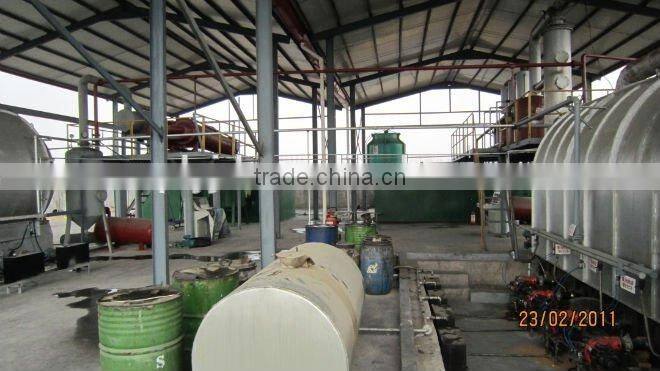

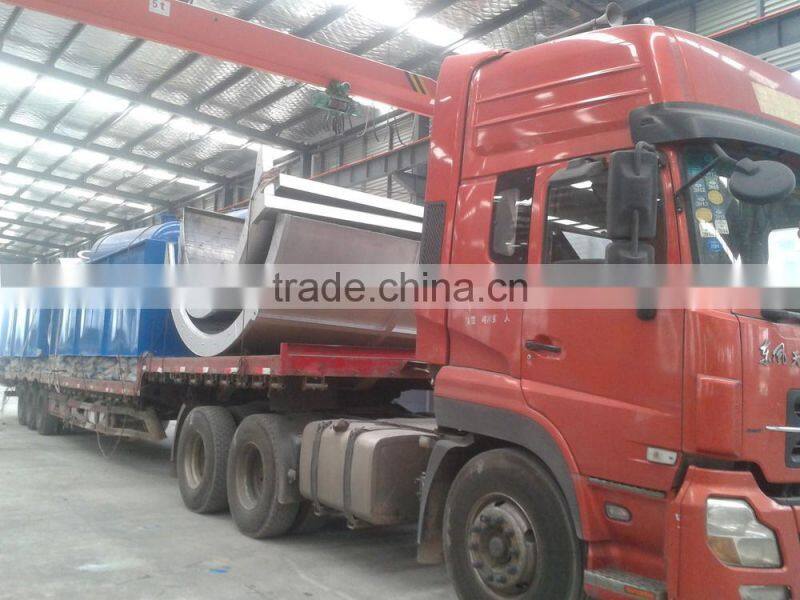

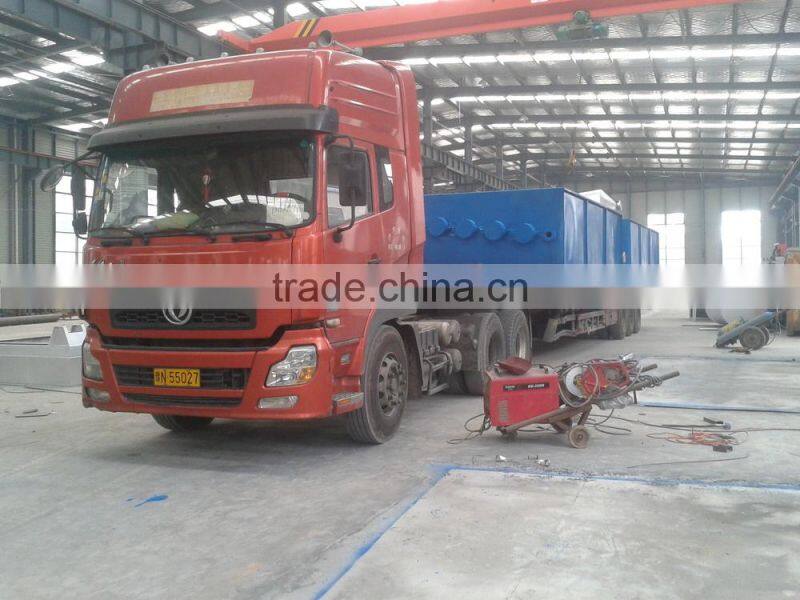

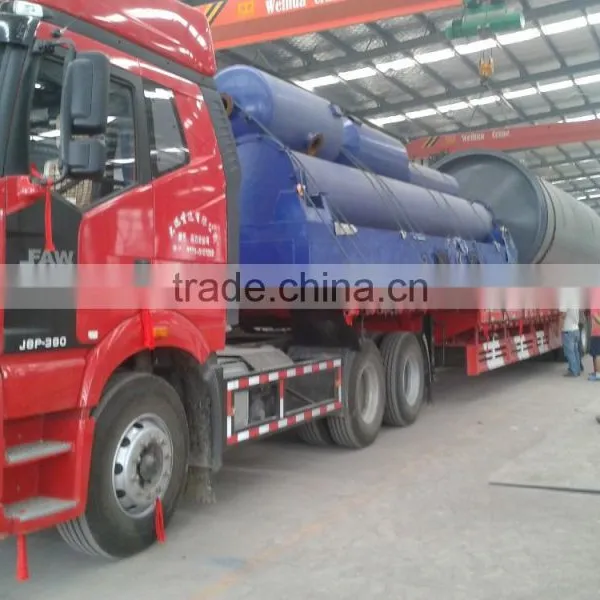

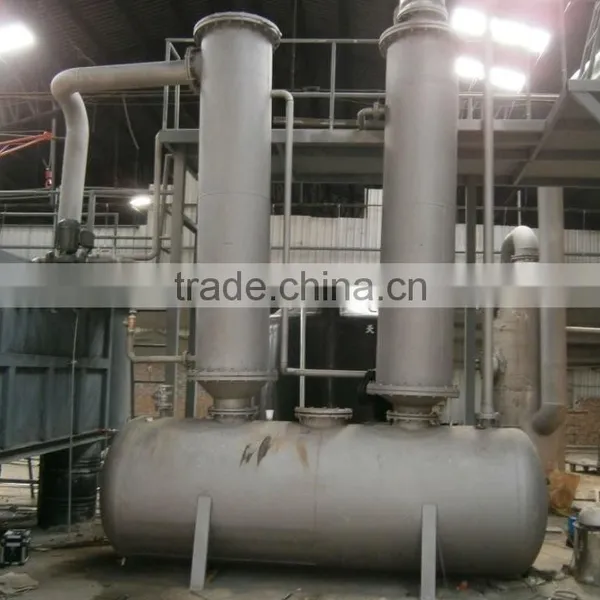

8.Relative photos:
9.After sale service
Payment term | 30% TT deposit ,balance paid before plant loading ,or sight LC |
Delivery | With 15days after getting advance payment |
Warranty period | 2 years warranty period, life time maintenance
|
Installation | We send technician for guiding installation and training your workers for free. |
