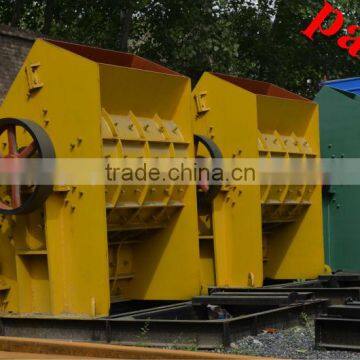

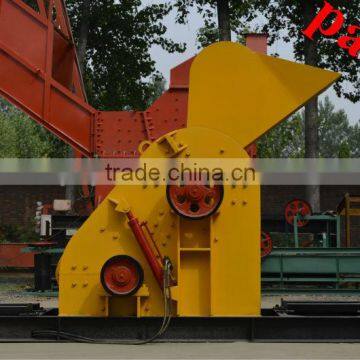

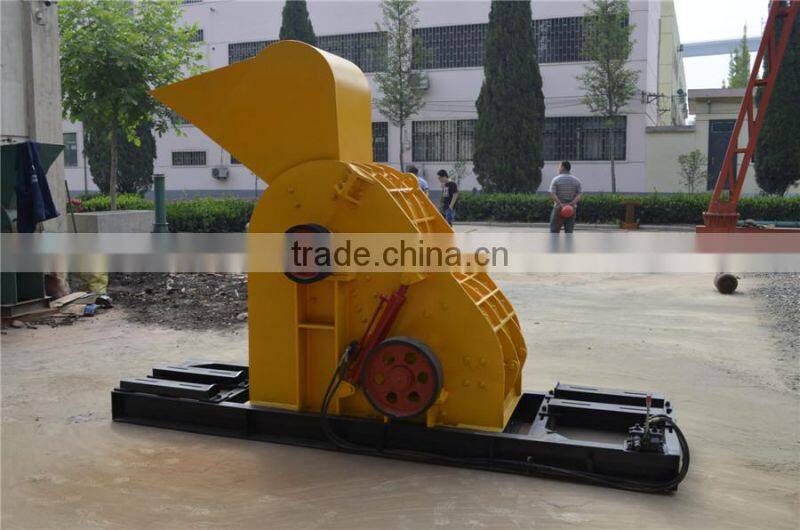

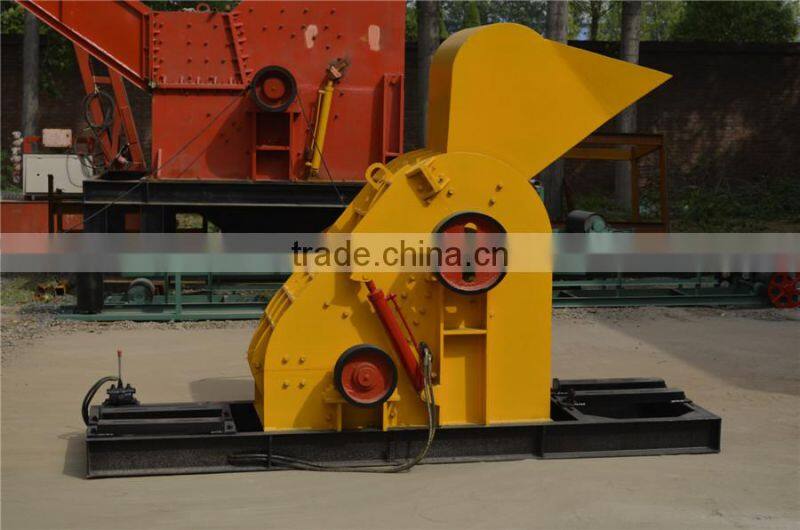

2014 hot seal Double Stage Crusher/Two-Stage Crusher

Specifications

Double Stage Crusher
1.Strong production ability;
2. Low energy consumption;
3.Easy operation and repair.



Brief Introduction of the Double Stage Crusher:

The two-stage crusher is a new invented crusher from our factory. It's applied for coal gangue, furnace slag, cement, pebble, iron ore, lime stone, shale and so on materials' crushing for construction and other industrial materials. It has solved old crusher whose hammer and scale board wear too fast, not applying in wet material crushing these problems. It has advantages of: good capacity, high fineness, various kinds of materials applying, adapting to various working environments. It's easy to install, and best option for customers.

Working Principle:

Input the raw material averagely by forklift or labor into the first crushing chamber. Material will be crushed by round plate and hammers for first time. Then the smaller materials will come into the second crushing chamber, where the materials will be crushed by high speed hammers. After that, material reached the screening hole size will come out of the machine in the output, larger material will stay in the chamber until it matches the required size.

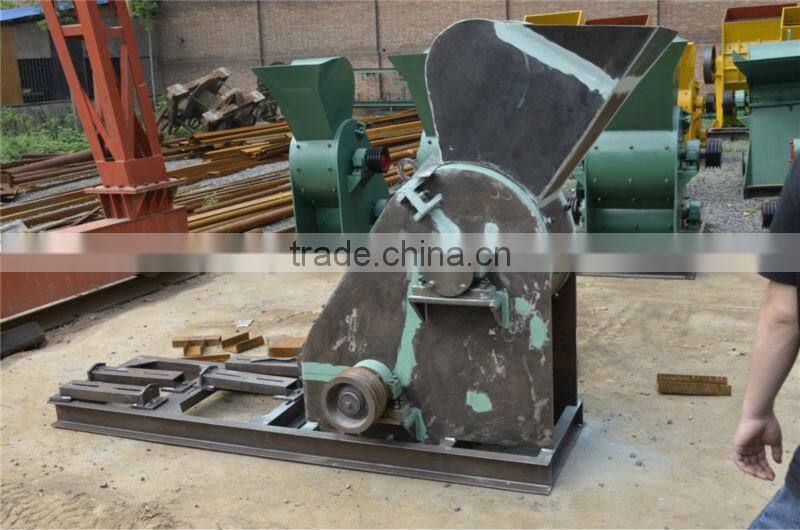

No paint double stage crusher

     Main Technical Parameters:

Model	Max Input Size(mm)	Output Size(changable)(mm)	Capacity(t/h)	Motor Power(kw)	Total Weight
600*400	≤100	≤3	15-25	18.5+18.5	1.2
600*600	≤180	≤3	25-35	22+22	1.9
800*600	≤270	≤3	45-55	45+37	3.7
800*800	≤300	≤3	55-65	55+55	5.8
1000*800	≤360	≤3	60-80	75+55	6.7
1000*1000	≤400	≤3	80-100	75+90	8.5
1200*1000	≤500	≤3	100-130	110+90	13
1200*1200	≤550	≤3	130-160	132+110	16.5
1400*1200	≤630	≤3	160-180	132+132	21
1600*1400	≤700	≤3	200-260	160+160	30

Qualification Certification:
