Home > Products > New Products > Rectangular/Square Can Line
Rectangular/Square Can Line
- shanghai
- T/T Credit Card
You May Like
Product Details
| Condition | New | Automatic Grade | Automatic | |
| Usage | Metal Forming Machine | Place of Origin | Jiangxi, China | |
| Brand Name | YONGXIN | Model Number | Yongxin | |
| Voltage | 380V | Power(W) | 20W | |
| Dimension(L*W*H) | 1500*1600*1109MM | Weight | 3T | |
| Certification | CE | Warranty | 10 YEAR | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
Original manufacturer14 years' experience

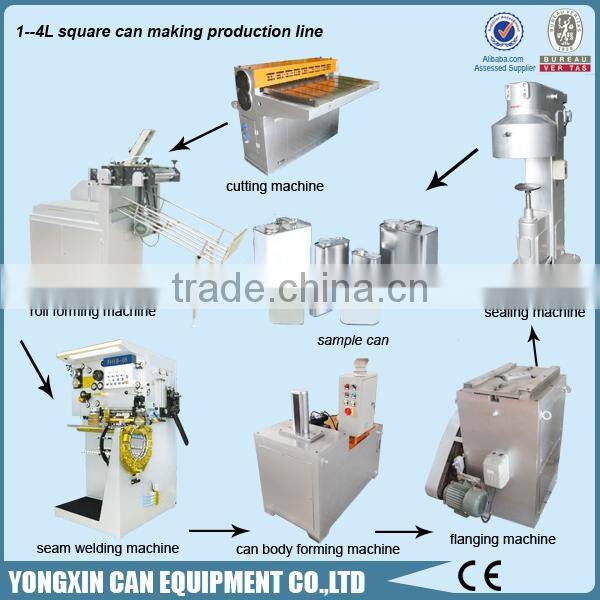

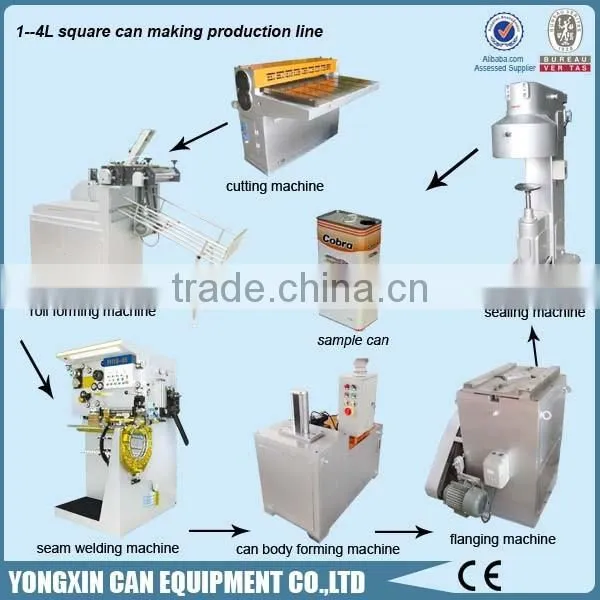

supply complete tin can line
products to Dubai,Spain,Greece,Egypt,Vietnam,Kenya...
Name: New condition small square tin can machine
The cutting machine
GT1B5 gang slitter
for steel or other metal shear volume iron,for the canning jar-cover or cans.
The main technical parameters:
Adaptability:Max.Sheet Thickness | 0.4mm |
Max.Sheet Width | 1050mm |
Min.Sheet Width | 44mm |
Using Motor | 1.1kw |
Net Weight | 1400kg |
Dimension | 1500*1600*1105mm |
Rolling forming machine
| Capacity | 40 cans/min |
| Can Height | Max.420mm |
| Power | 0.25kw |
| Weight | 50kg |
| Dimension | 700mm×400mm×840mm |

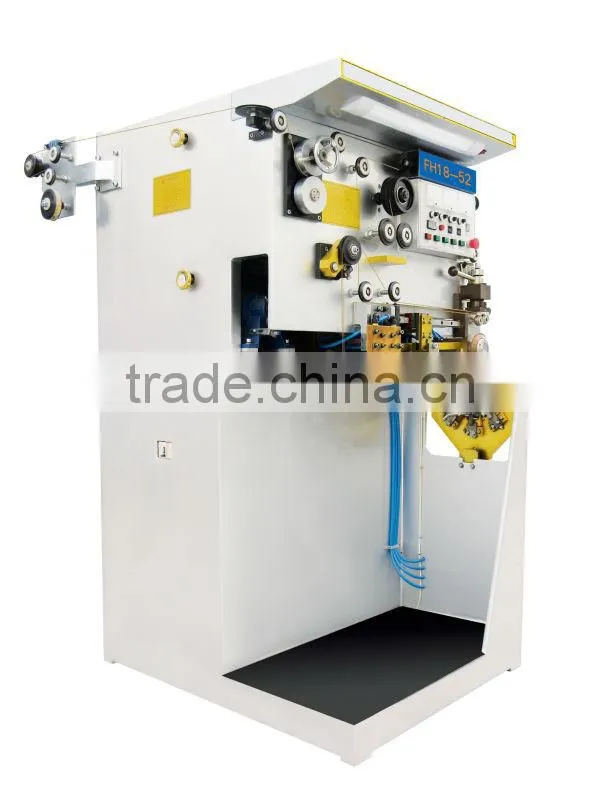

FH18-52 semi-Automatic can body welding machine
1.The main parameters
Linear rate of welding | 6-18m/min |
Production capability | 20~80Cans/min |
Applicable can diameter | ø65~ø286mm |
Applicable can height | 70~420mm |
Applicable material | Tinplate steel-based Temper:T2.5-DR8 |
Applicable material thickness | 0.18~0.42mm |
Seam welding landing | 0.4mm 0.6mm 0.8mm 1.2mm |
Seam point distance | 0.5~0.8mm |
Applicable copper wire diameter | ø 1.38mm ø 1.5mm |

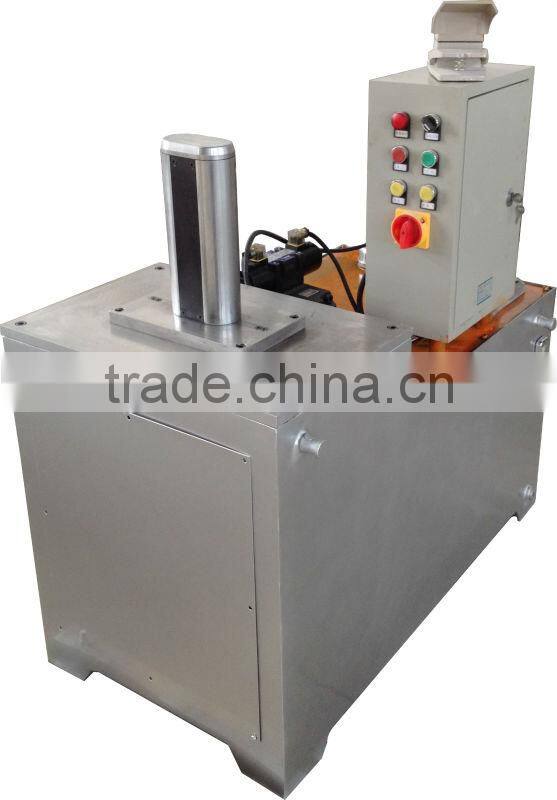

GT3F3Y3F4Y Hydraulic square can shape forming machine
It's used for forming the square can shape of can body after welding machine. It can used to form different cans after changing die.
The main technical parameters:
model | GT3F3Y/3F4Y |
capacity | 20-30 cans/min |
applicative range | 1L--4L |
net weight | 700kg |
power | 3kw |
dimension | 720*1400*1500mm |

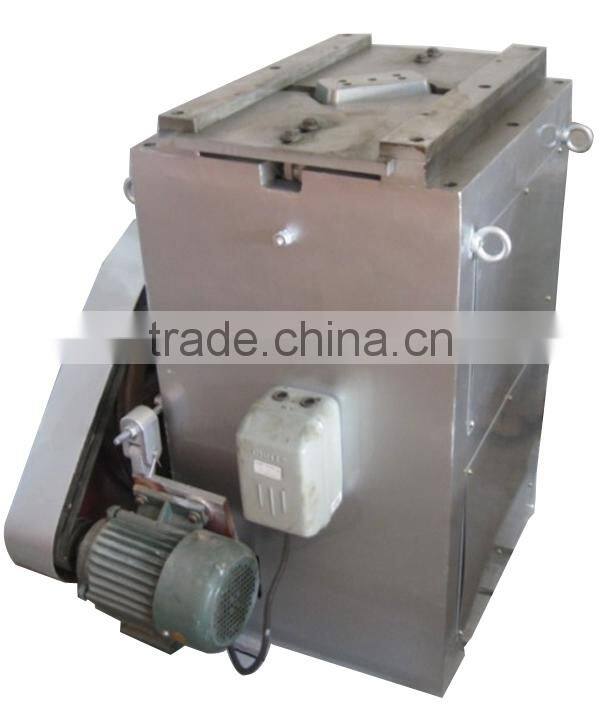

GT3FB4J Square can flanging machine This is electrical flanging machine for tin can. The flanging specification meet the international standard.After changing the flanging mold, can be used for square can,round can and other regular shape cans.
Model | GT3FB3/3FB4J |
Applicative range | 1L-18L |
Capacity | 30cans/min |
Power | 0.75kw |
Net Weight | 350kg |
Dimension | 680*1020*800mm |

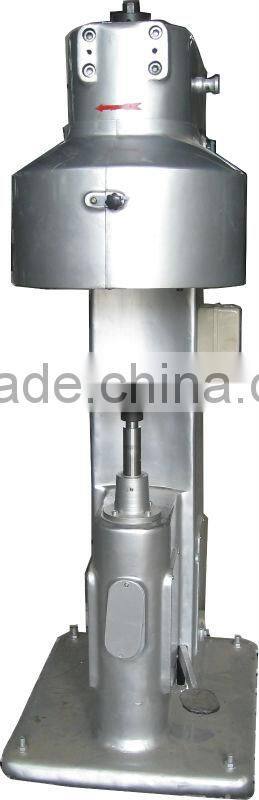

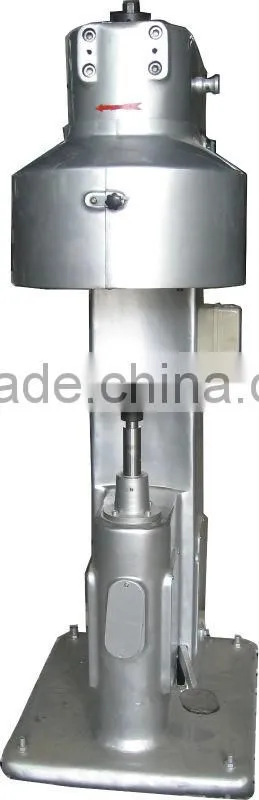

This can seamer is mainly used to seal round and square can in the industries,such as food,medicine
Model: | GT4A16B |
Capacity: | 12-16cans/min |
Diameter: | 50-330mm |
Maximum Height: | 50-400mm |
Sheet thickness: | ≤0.4mm |
Motor type: | Y112M-6 |
Power: | 1.5kw |
Rotate speed: | 940r/min |
Net weight: | 800kgs |
Dimension: | 980x580x1900mm |
Q:Why choose us?
A:Cause we have leading edge technology for giving the best machines for a wonderful can.
Q:Does our machines available for Ex works and easy to export?
A:That’s a big convenience for buyer to come to our factory to get machines cause our products all don’t need
commodity inspection certificate and it will be easy for export.
Q:How can the price be most reasonable?
A:We handle the price to a reasonable level and it can be adjust according to customer's needs.Then, the price will
eventually based on request.
Q:What if I want to see the production process?
A:That's not a problem,we have many video from our customer's company.If you want to see it right front you,we will
contact our customer over the world and let be there to have the visit.
Q:Is it possible send engineer overseas to fix the machines?
A:Of course yes! This will be our after-sales service.
Aboutr the color,we also can paint accroding to your require, If you want to know more information about this machine, Please contact us!
