Home > Products > New Products > 1-5 Gallon Round Can Making Machines
1-5 Gallon Round Can Making Machines
- shanghai
- T/T D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Application | Chemical | |
| Packaging Type | Cans | Packaging Material | Metal | |
| Automatic Grade | Semi-Automatic | Driven Type | Hydraulic | |
| Voltage | 380V 50hz | Power | 18kw | |
| Place of Origin | Jiangxi, China | Brand Name | Yongxin | |
| Model Number | GT3TA20 | Dimension(L*W*H) | 850MMX950MMX1500MM | |
| Weight | 600 KGS | Certification | CE | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1:1-5 gallon round can making machine2:Speed:10-17 cans/min
3:Low maintenance
4:operator friendly
5:CE certificat

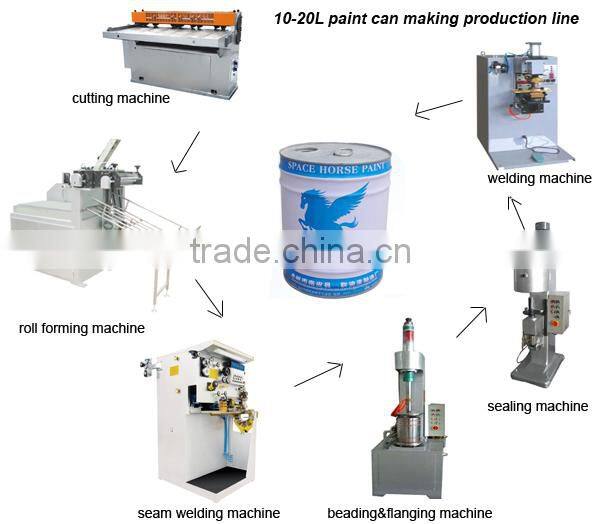

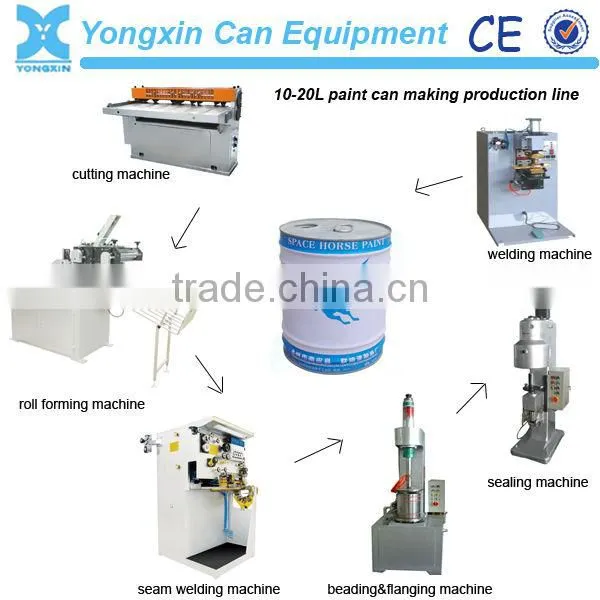

Yongxin 10-20L chemical paint tin can making machine

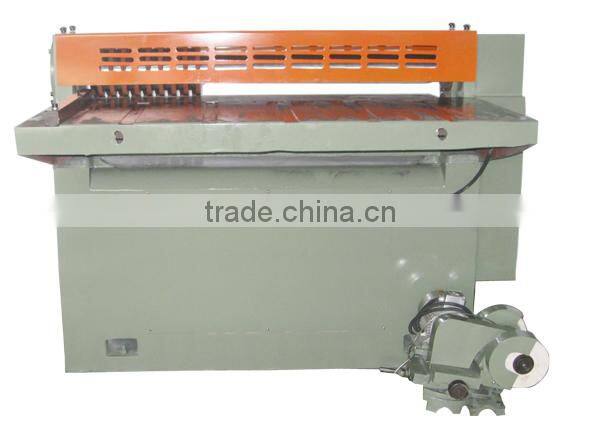

GT1B5 gang slitter
for steel or other metal shear volume iron,for the canning jar-cover or cans.
The main technical parameters:
| Adaptability:Max.Sheet Thickness | 0.4mm |
| Max.Sheet Width | 1050mm |
| Min.Sheet Width | 44mm |
| Using Motor | 1.1kw |
| Net Weight | 1400kg |
| Dimension | 1500*1600*1105mm |

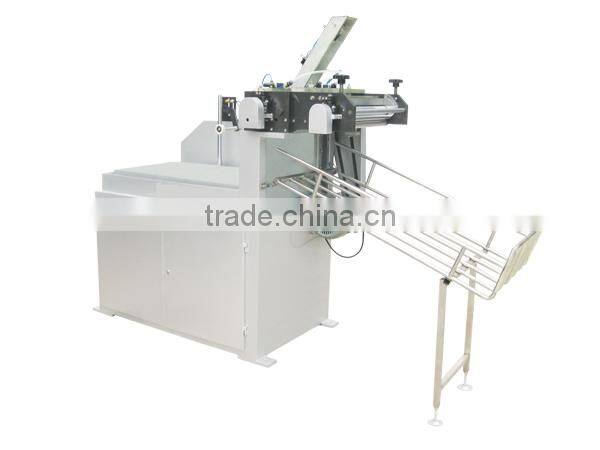

Rolling forming machine
| Capacity | 40 cans/min |
| Can Height | Max.420mm |
| Power | 0.25kw |
| Weight | 50kg |
| Dimension | 700mm×400mm×840mm |
FH18-52 semi-Automatic can body welding machine
The main parameters
| Linear rate of welding | 6-18m/min |
| Production capability | 20~80Cans/min |
| Applicable can diameter | ø65~ø286mm |
| Applicable can height | 70~420mm |
| Applicable material | Tinplate steel-based Temper:T2.5-DR8 |
| Applicable material thickness | 0.18~0.42mm |
| Seam welding landing | 0.4mm 0.6mm 0.8mm 1.2mm |
| Seam point distance | 0.5~0.8mm |
| Applicable copper wire diameter | ø 1.38mm ø 1.5mm |
GT3B18Y hydraulic beading and flanging machine
The main technical parameters:
| diameter | 220-300mm |
| height | ≤370mm |
| capacity | 15 cans/min |
| power | 5.5kw |
| net weight | 1080kgs |
| dimension | 1500*900*2300mm |

GT4A19YQ Round can pneumatic seamer
| Capacity | 20-30cans/min |
| Diameter | 50-300mm |
| Height | 50-400mm |
| Tinplate Thickness | ≤0.4mm |
| Air pressure | 0.3-0.7Mpa |
| Motor type | Y100L-4 |

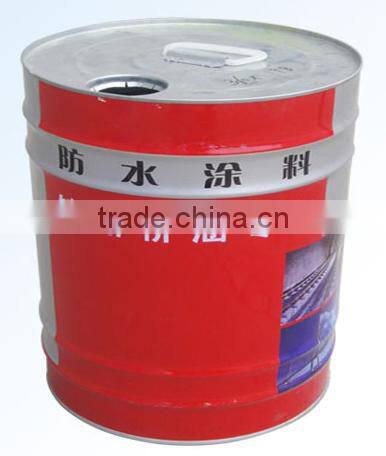

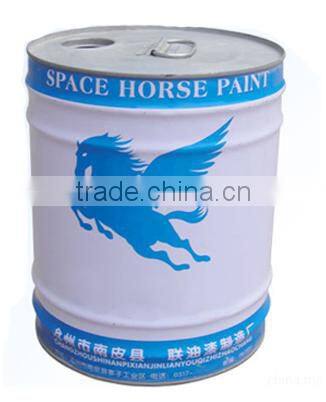

sanmple cans


Deliver time: 30-45days.
Warranty:One year! If there is any quality problem with our machine during the warranty period, we will offer free parts for customer for fix the machine.
After-sale Service:
a.Technical support online service provided. b.Technical files service provided.
c.On-site training service provided. d.Spare parts replacement and repair service provided.
If you need more information about the machines,Please contact us!
