Machine To Make Round Paint Tin Cans
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Automatic Grade | Semi-Automatic | |
| Usage | Metal Forming Machine | Place of Origin | Jiangxi, China | |
| Brand Name | YONXIN | Model Number | CUTTER | |
| Voltage | 380V | Power(W) | 1.1KW | |
| Dimension(L*W*H) | 1500x1600x1105mm | Weight | 1400KG | |
| Certification | CE | Warranty | ONE YEAR | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
original manufacutrer14 years' experience,
supply complete can making line
products to Dubai, Spain, Greece
Egypt,Indonesia
Name: E Effictive and handmade machine for making tin cans

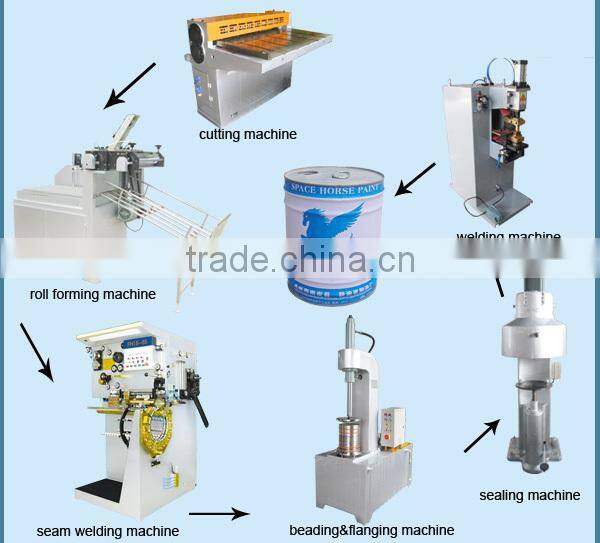

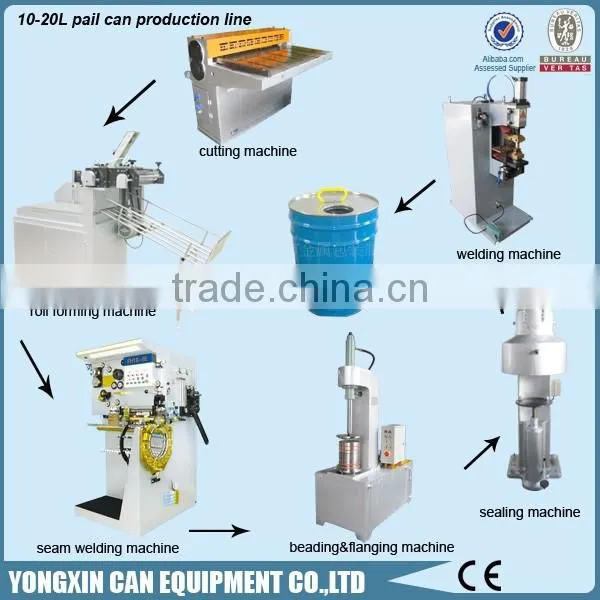

Production process of Effictive and handmade machine for making tin cans
Details of each machine

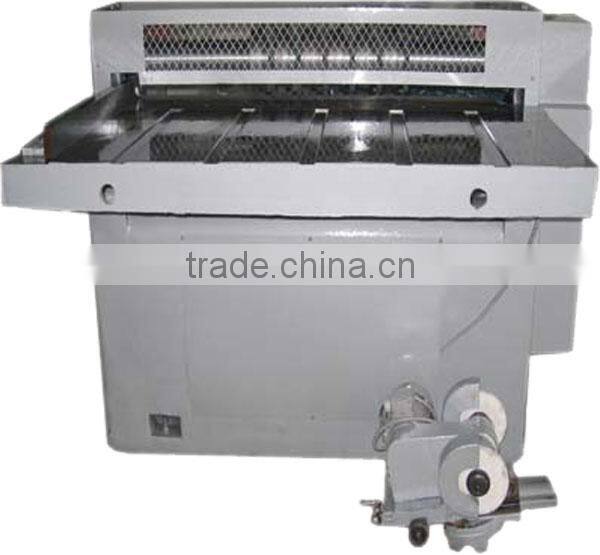

1.BT1B5 Gang slitter

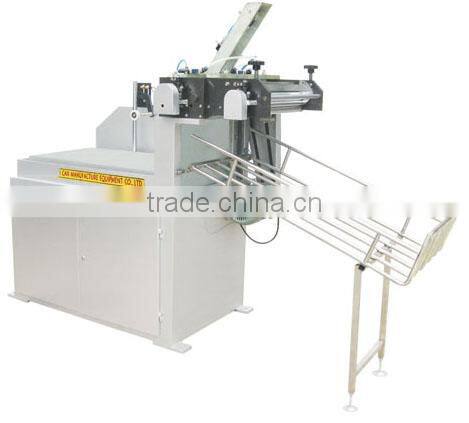

2.Rolling forming machine
| Capacity | 40 cans/min |
| Can Height | Max.420mm |
| Power | 0.25kw |
| Weight | 50kg |
| Dimension | 700mm×400mm×840mm |

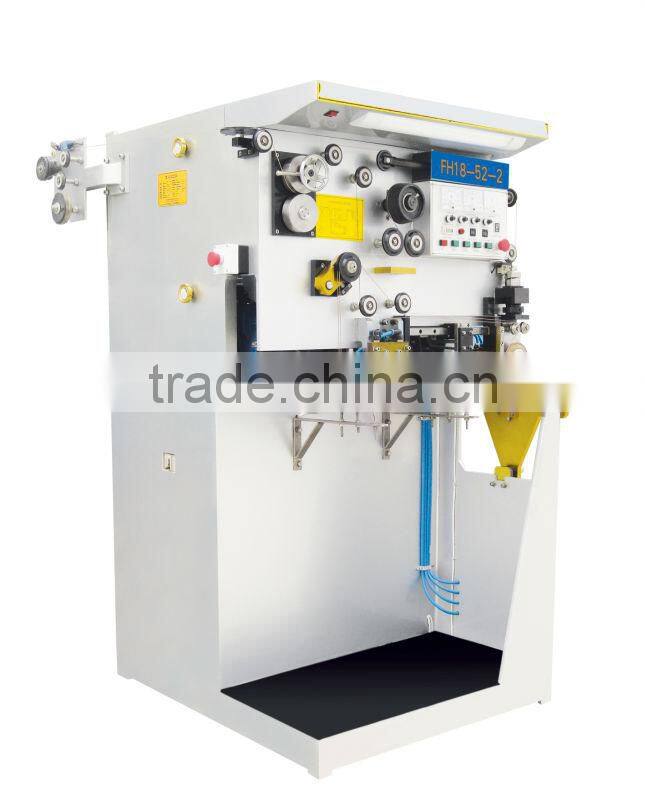

3.FH18-52-2 semi-Automatic can body welding machine
Linear rate of welding | 6-18m/min |
Production capability | 20~80Cans/min |
Applicable can diameter | ø65~ø286mm |
Applicable can height | 70~420mm |
Applicable material | Tinplate steel-based Temper:T2.5-DR8 |
Applicable material thickness | 0.18~0.42mm |
Seam welding landing | 0.4mm 0.6mm 0.8mm 1.2mm |
Seam point distance | 0.5~0.8mm |
Applicable copper wire diameter | ø 1.38mm ø 1.5mm |

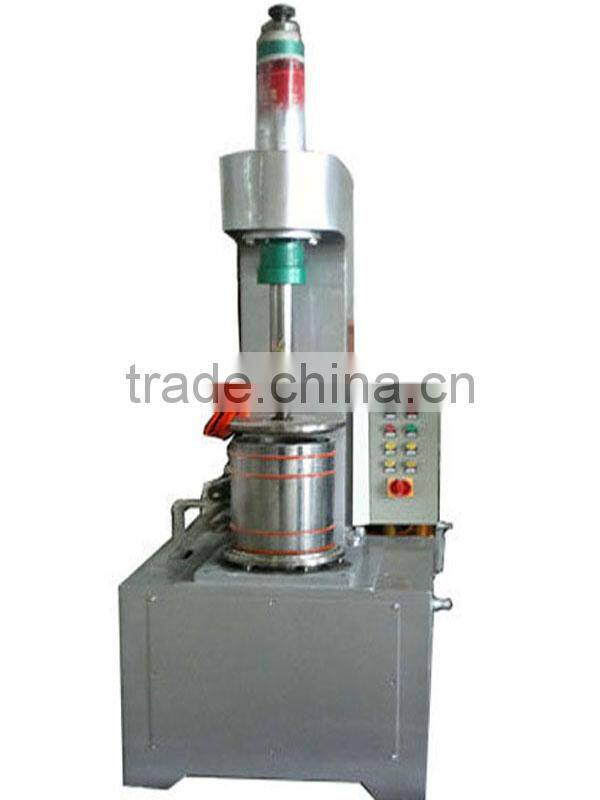

4.GT3B18Y hydraulic beading and flanging machine
diameter | 220-300mm |
height | ≤370mm |
capacity | 15 cans/min |
power | 5.5kw |
net weight | 1080kgs |
dimension | 1500*900*2300mm |

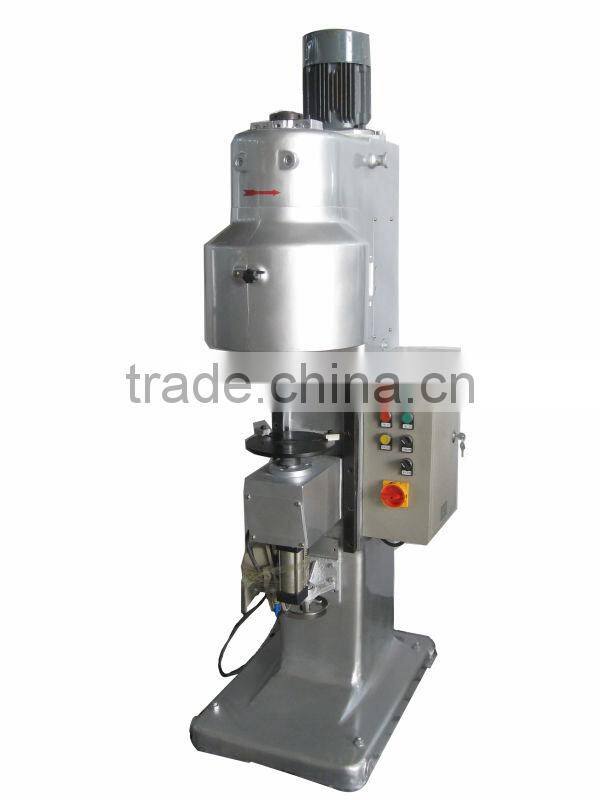

5.GT4A19YQ Round can pneumatic seamer
Capacity | 20-30cans/min |
Diameter | 50-300mm |
Height | 50-400mm |
Tinplate Thickness | ≤0.4mm |
Air pressure | 0.3-0.7Mpa |
Motor type | Y100L-4 |

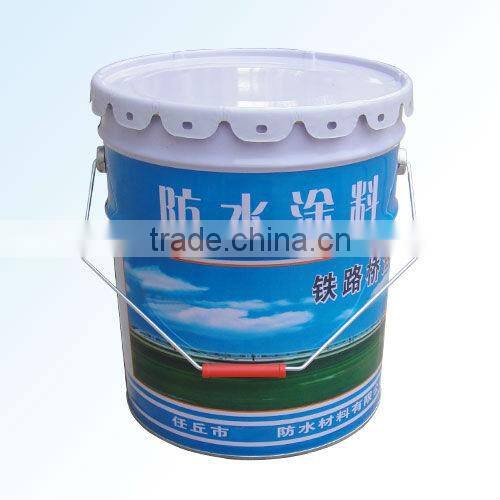

sample cans


FAQ
Q:Why choose us?
A:Cause we have leading edge technology for giving the best machines for a wonderful can.
Q:Does our machines available for Ex works and easy to export?
A:That’s a big convenience for buyer to come to our factory to get machines cause our products all don’t need
commodity inspection certificate and it will be easy for export.
Q:Is there any spare parts for free?
A:Yes! We can supply free quick-wear parts for 1 year,just rest assure to use our machines and themselves are
very durable.
Q:How can the price be most reasonable?
A:We handle the price to a reasonable level and it can be adjust according to customer's needs.Then, the price will
eventually based on request.
Q:What if I want to see the production process?
A:That's not a problem,we have many video from our customer's company.If you want to see it right front you,we will
contact our customer over the world and let be there to have the visit.
Q:Is it possible send engineer overseas to fix the machines?
A:Of course yes! This will be our after-sales service.
If you want to know more information about this machine,Please contact us!
Tel: +86-792-8326978 Fax: +86-792-8326978
