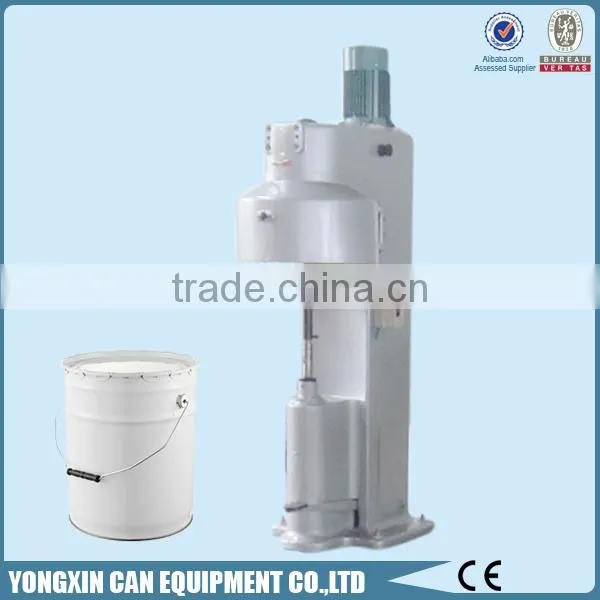

GT4A19Y Semi-automatic Tin Can Seamer Machine
1. It adopts the structure of four-wheel and five layer reel procedures, applying to all types of different round cans.
2. The sealing force is more powerful and the sealing density is excellent.
3. The speed of sealing: Fast; The die change: Convenient; The adjustment: Easy.
Main technical parameters
Model: | GT4A19Y |
Capacity: | 8-20cans/min |
Diameter: | 50-330mm |
Maximum Height: | 370mm |
Net weight: | 1200kgs |
Power: | 2.2kw |
Dimension: | 200X600X1800mm |
1. Machine features:
1) The material of mould : Cr12MoV
2) Hydro-cylinder Parts: Compass
3)Pneumatic elements brand: Airtac (Taiwan)
2. Deliver time:
40 days.
3. Warranty:
One year! If there is any quality problem with our machine during the warranty period, we will offer free parts for customer for fix the machine.
Mainly used for sealing big round can
Details of this machine

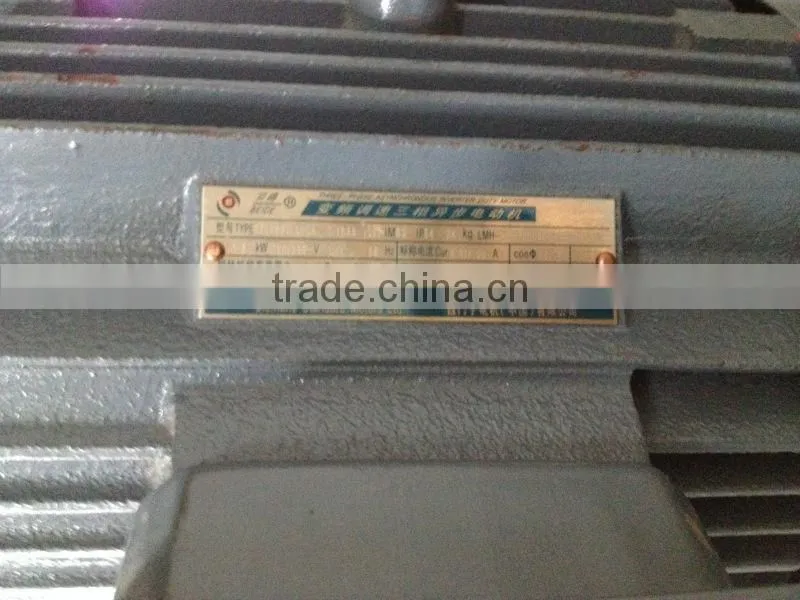

The motor component: SIMENS

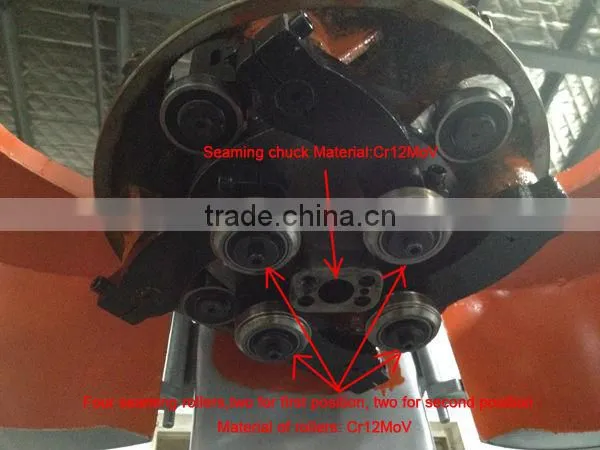

Machine head
Material of seaming chuck and rollers are all Cr12Mov
Details of this machine

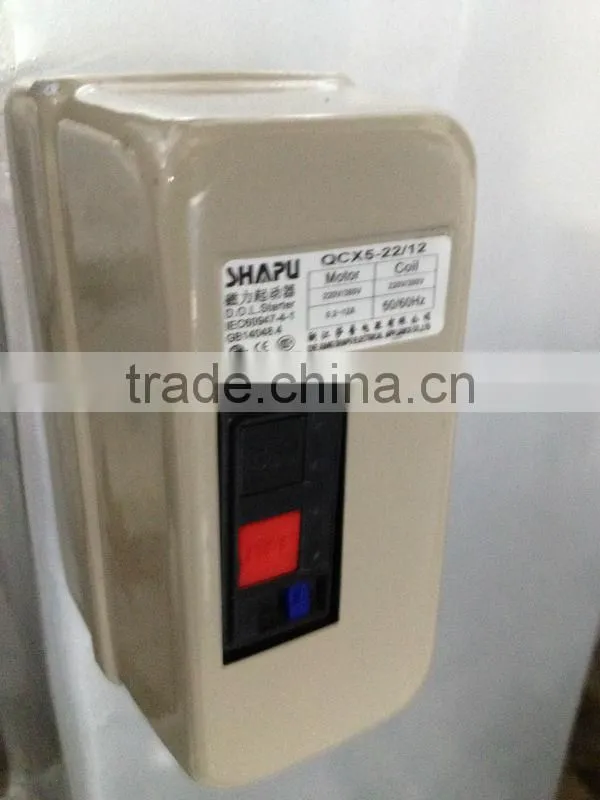

The pneumatic component: SHAPU
can sample
Deliver time: 40 days.
Warranty: One year! If there is any quality problem with our machine during the warranty period, we will offer free parts for customer for fix the machine.
After-sale Service:
a.Technical support online service provided.
b.Technical files service provided.
c.On-site training service provided.
d.Spare parts replacement and repair service provided
