Specifications
paint can making machineoil can making machine
chemical can making machine
Hydraulic and pheumatic
sizes from 0.1L to 25L

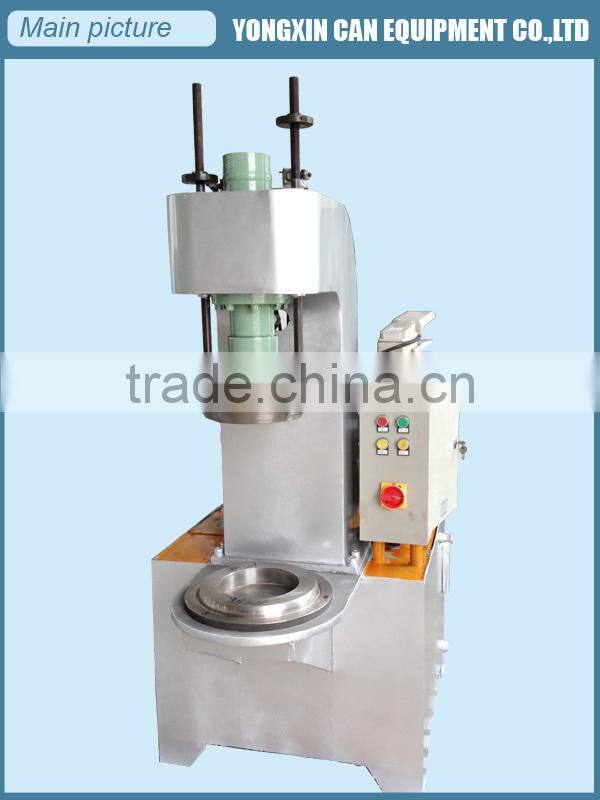

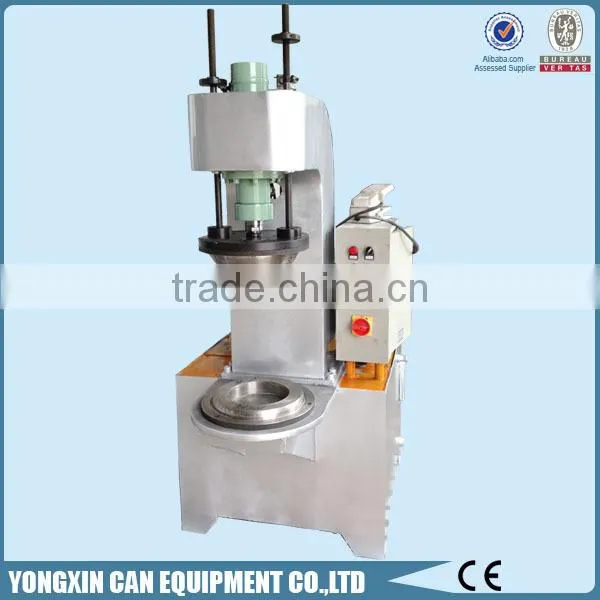

Name: 10-20L Tin Can Body flange machine
| Sheet thickness | ≤ 0.5 mm |
| Diameter | 210-300 mm |
| Height | 270-400 mm |
| Capacity | 15 pcs/min |
| Motor power | 4 kw |
| Net weight | 900 kg |
| Dimension | 1300*700*1750 mm |
1. They are mature products which were innovated by steady effort.
2. The hydraulic parts(such as change value, oil pump, hydro-cylinder) are manufactured by KOMPASS
3. The electronic component: SCHNEIER/ OMRON

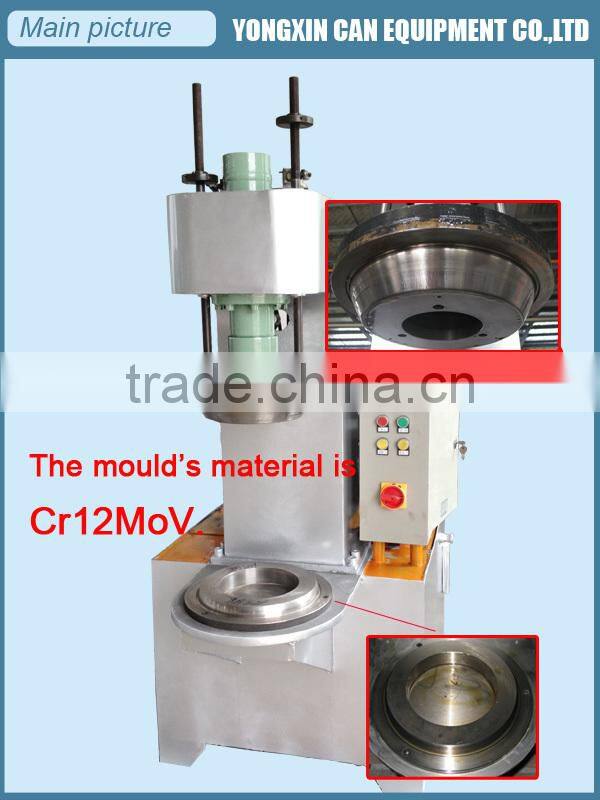

4. Some of molds select the high alloy steel(Cr12MOV) and quenching(60-62HRC)

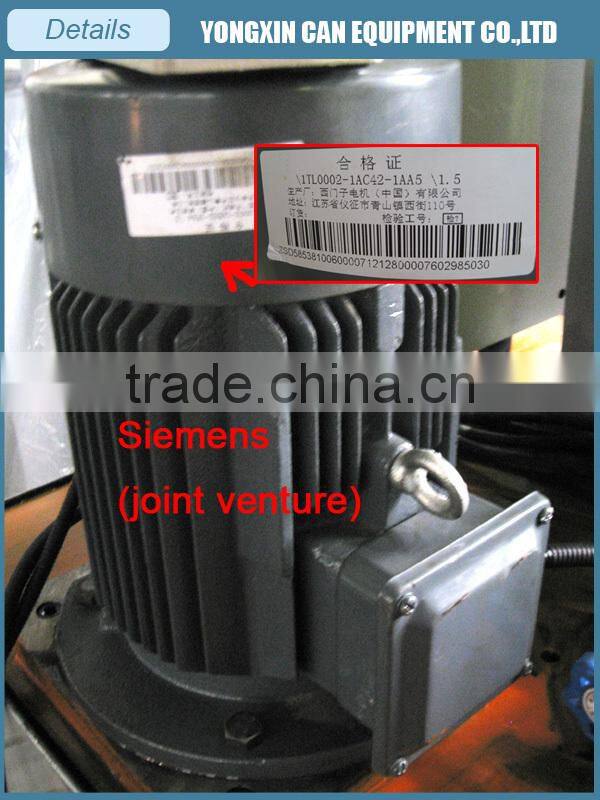

5. Motor: Siemens
Q:Why choose us?
A:Cause we have leading edge technology for giving the best machines for a wonderful can.
Q:Does our machines available for Ex works and easy to export?
A:That’s a big convenience for buyer to come to our factory to get machines cause our products all don’t need
commodity inspection certificate and it will be easy for export.
Q:How can the price be most reasonable?
A:We handle the price to a reasonable level and it can be adjust according to customer's needs.Then, the price will
eventually based on request.
Q:What if I want to see the production process?
A:That's not a problem,we have many video from our customer's company.If you want to see it right front you,we will
contact our customer over the world and let be there to have the visit.
Q:Is it possible send engineer overseas to fix the machines?
A:Of course yes! This will be our after-sales service.
Aboutr the color,we also can paint accroding to your require, If you want to know more information about this machine, Please contact us!
