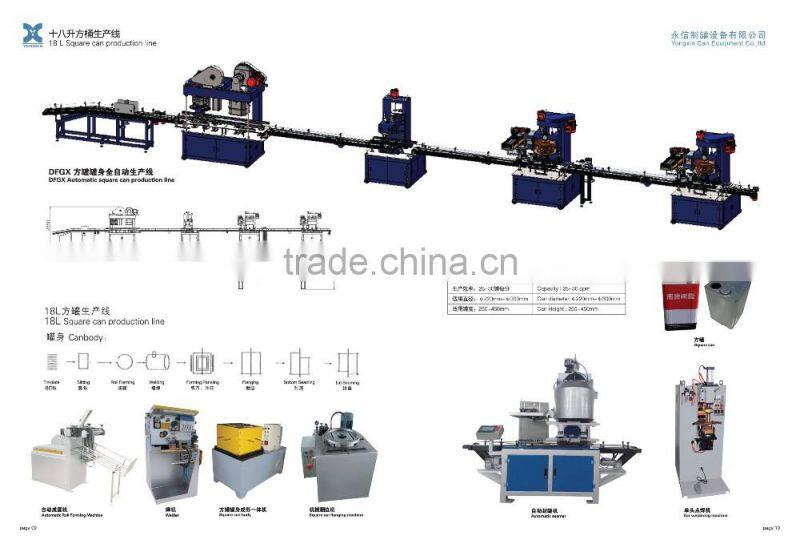

18L square can making machine
The cutting machine
GT1B5 gang slitter
for steel or other metal shear volume iron,for the canning jar-cover or cans.
The main technical parameters:
Adaptability:Max.Sheet Thickness | 0.4mm |
Max.Sheet Width | 1050mm |
Min.Sheet Width | 44mm |
Using Motor | 1.1kw |
Net Weight | 1400kg |
Dimension | 1500*1600*1105mm |

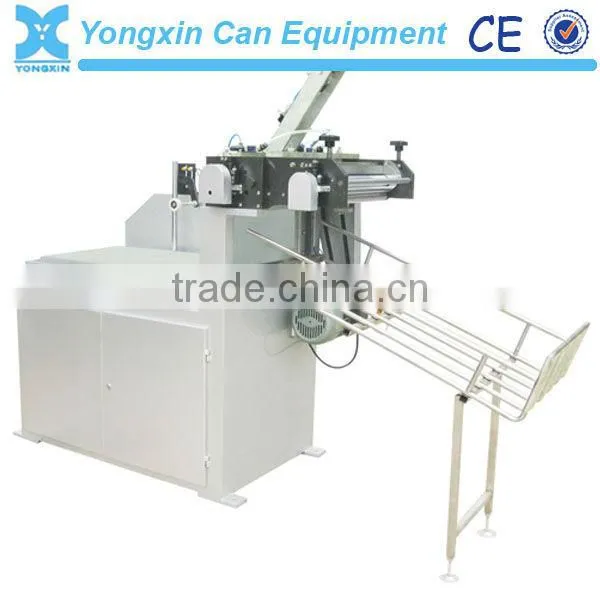

Rolling forming machine
| Capacity | 40 cans/min |
| Can Height | Max.420mm |
| Power | 0.25kw |
| Weight | 50kg |
| Dimension | 700mm×400mm×840mm |

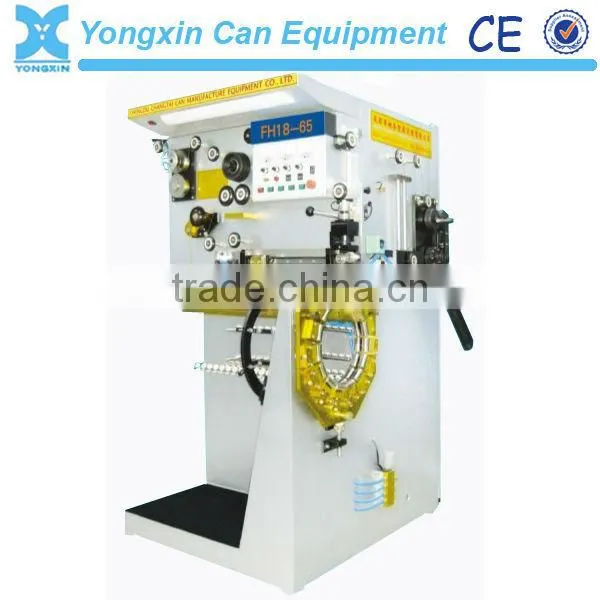

FH18-52 semi-Automatic can body welding machine
1.The main parameters
Linear rate of welding | 6-18m/min |
Production capability | 20~80Cans/min |
Applicable can diameter | ø65~ø286mm |
Applicable can height | 70~420mm |
Applicable material | Tinplate steel-based Temper:T2.5-DR8 |
Applicable material thickness | 0.18~0.42mm |
Seam welding landing | 0.4mm 0.6mm 0.8mm 1.2mm |
Seam point distance | 0.5~0.8mm |
Applicable copper wire diameter | ø 1.38mm ø 1.5mm |

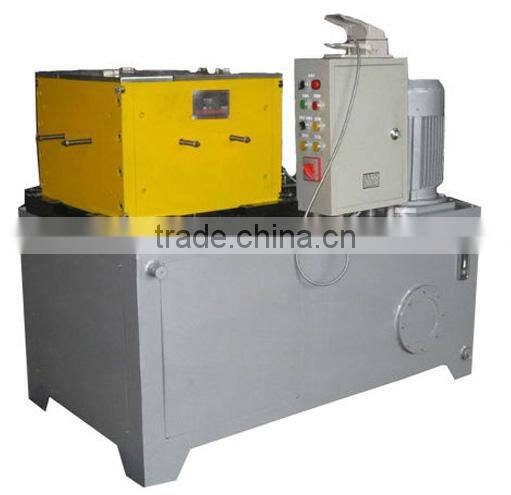

Square can forming machine
GTFY-18 Square can body forming machine
function
It's combined with process of expanding the container into square,angel tendon pressing and cover panelings.the can body is stretched at the same time,which ensures the can body not be contorted,deformed for rebound,and save energy sources.it's mainly used in the one-off forming of the 5-gallon square container body.
Scope of application | big square containers of 9-20L(need change mold) |
Maximum oil pressure | 12Mpa |
Adaptive material thickness | 0.2-0.4mm |
Working air Pressure | 0.3Mpa |
Capacity | 10-15 cans per minute |
Volume of oil tank | 130L |
Power of motor | 7.5kw |
Outline size | 1400*720*1200mm |
Applied electric source | AC380V 50HZ |
Overall Weight | 900kg |

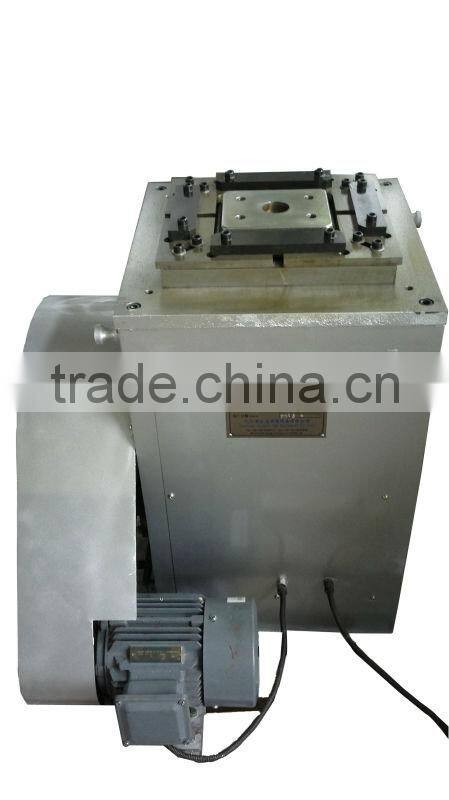

The flanging machine
Model | GT3FB3/3FB4J |
Applicative range | 1L-4L |
Capacity | 30cans/min |
Power | 0.75kw |
Net Weight | 350kg |
Dimension- | 680*1020*800mm |

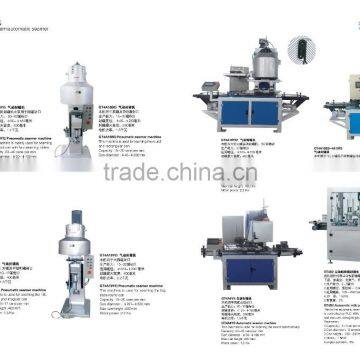

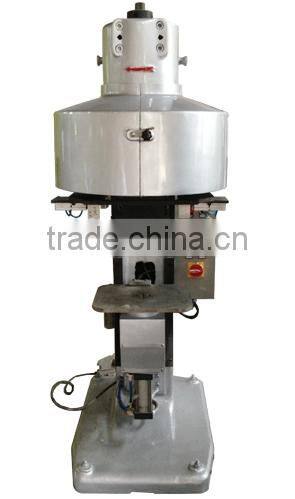

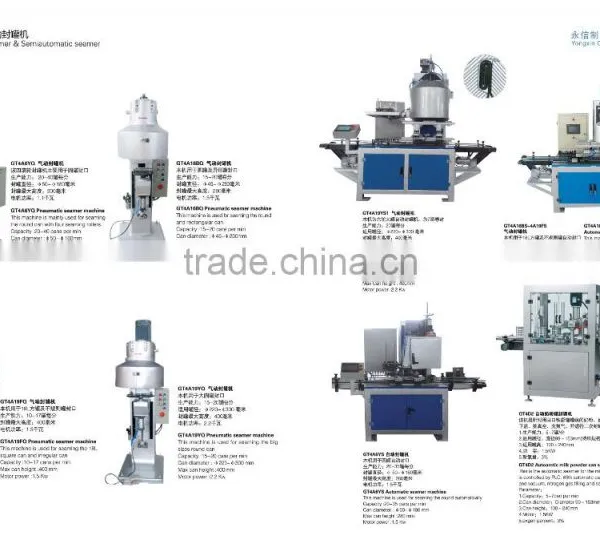

The sealing machine(semi-auto)

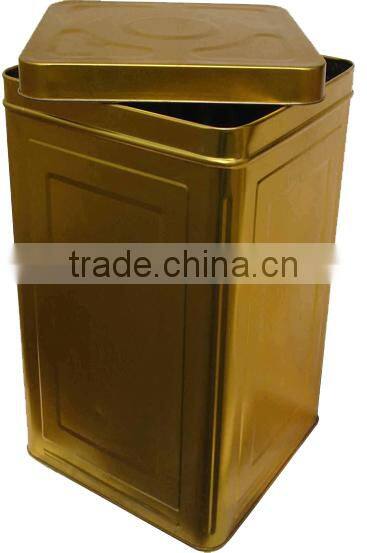

Sample cans
FAQ
Q:Why choose us?
A:Cause we have leading edge technology for giving the best machines for a wonderful can.
Q:Does our machines available for Ex works and easy to export?
A:That’s a big convenience for buyer to come to our factory to get machines cause our products all don’t need
commodity inspection certificate and it will be easy for export.
Q:Is there any spare parts for free?
A:Yes! We can supply free quick-wear parts for 1 year,just rest assure to use our machines and themselves are
very durable.
Q:How can the price be most reasonable?
A:We handle the price to a reasonable level and it can be adjust according to customer's needs.Then, the price will
eventually based on request.
Q:What if I want to see the production process?
A:That's not a problem,we have many video from our customer's company.If you want to see it right front you,we will
contact our customer over the world and let be there to have the visit.
Q:Is it possible send engineer overseas to fix the machines?
A:Of course yes! This will be our after-sales service.
If you want to know more information about this machine,Please contact us!
Tel: +86-792-8326978 Fax: +86-792-8326978
