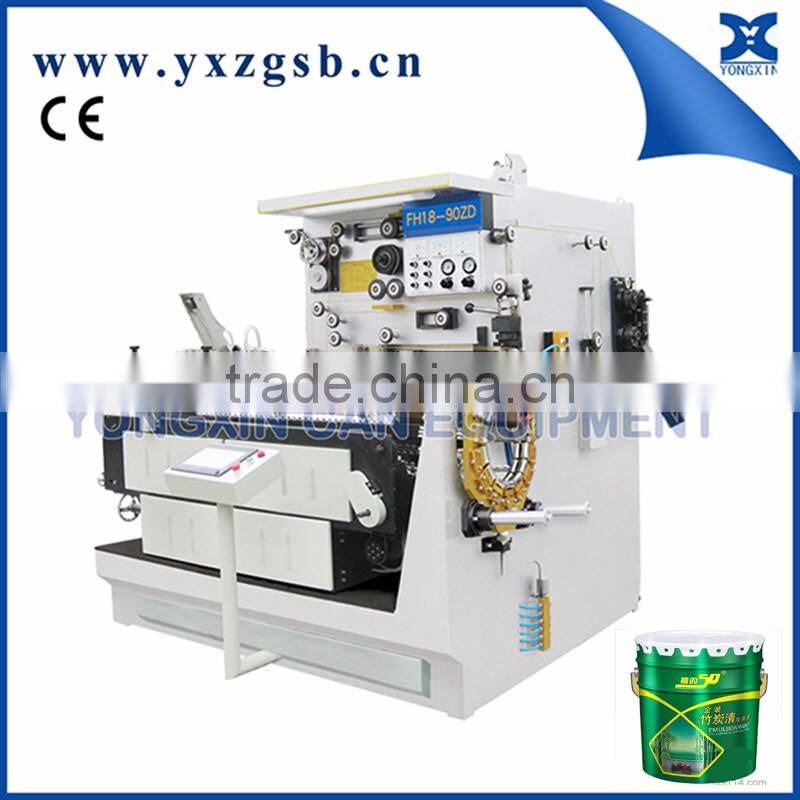

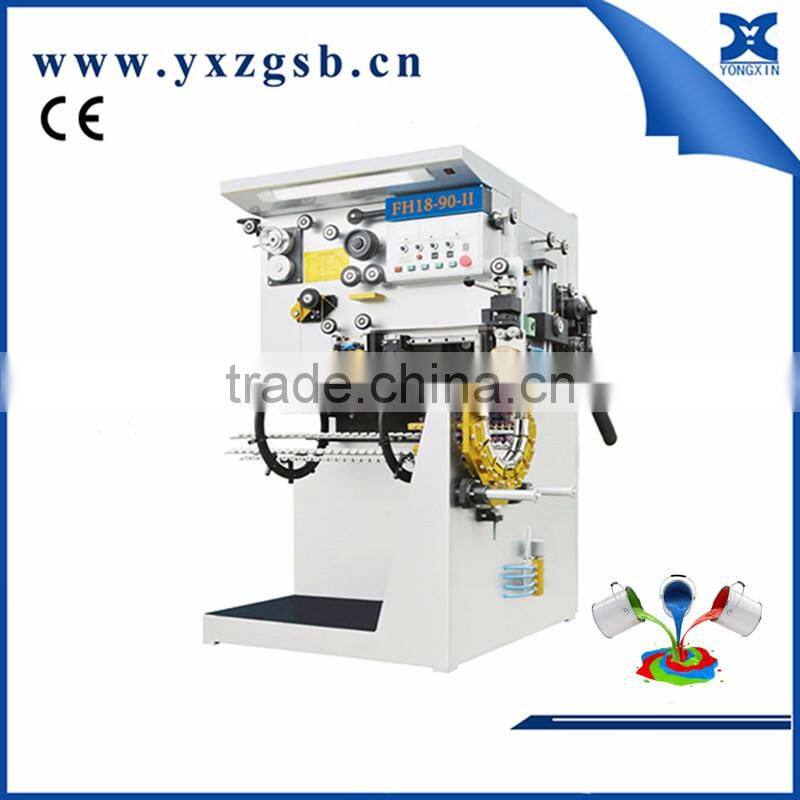

Automatic Tin Can Welding Machinery For Metal Can
US$ 22,500 - 25,000
/ Set
1 Set(Min. Order)
- Shanghai China
- T/T
You May Like
Product Details
| Condition | New | Application | Beverage, Food | |
| Packaging Type | Cans | Packaging Material | Metal | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 380V | Power | 40kw | |
| Place of Origin | Jiangxi, China | Brand Name | Yongxin | |
| Model Number | GT-FH18-52ZD | Dimension(L*W*H) | 1750*1100*1800mm | |
| Weight | 1800KG | Certification | CE Certification | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
| Vedio Show |
Vedio one:
Vedio two:
| Specification |
| Model | GT-FH18-52 |
| Welding Speed | 10-26m/min |
| Production Capacity | 30-120cans/min |
| Range of Can Diameter | 52mm - 99mm |
| Range of Can Height | 70mm - 280mm |
| Applicable Materials | Tinplate, Steel-based |
| Applicable Materials Thickness | 0.16 - 0.30mm |
| Overlap | 0.6mm 0.8mm 1.2mm |
| Welding Point Distance | 0.5-0.8mm |
| Applicable Copper Wire Diameter | Ø1.38mm Ø1.5mm |
| Cooling Water | 0.4-0.5Mpa, ≤20°C, 10L/min |
| Power | 380V, 50Hz, 18KW |
| Weight | 1800kg |
| Dimensions | 1750*1100*1800mm |
| Features |
1)Apply to the welding of food cans,chemical cans,square cans and buckets.
2)Can body internal and external prepainting machine and can body drier are optional to be added in production line.
3)Accoring to customer's demands to accelerate the speed.
4)PLC(programmable logic controller is purchased from Japanese Mitsubishi.
5)Low voltage apparatus is produced by Schineider.
6)IGBT(insulated gate bipolar transistor) is bought from Janpanese Fuji.
7)Omron is our sensor supplier.

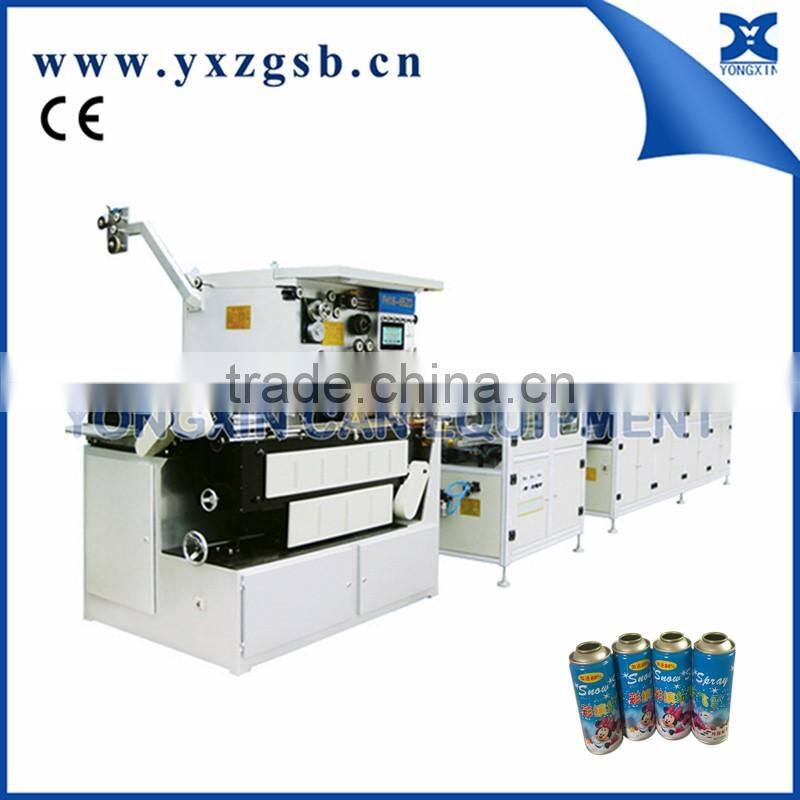

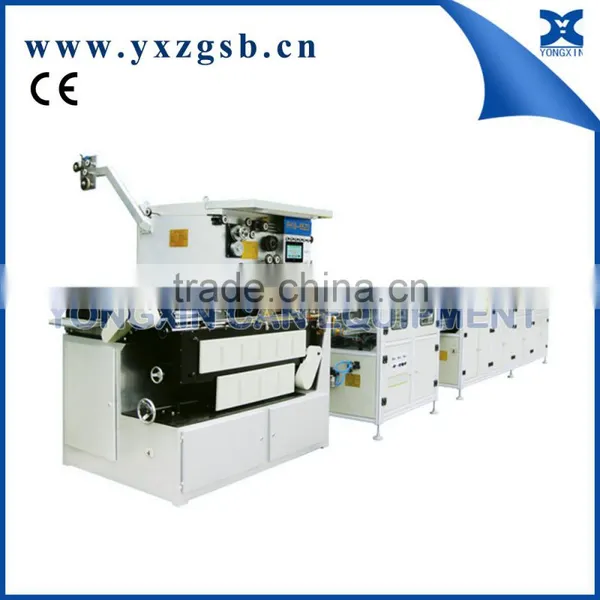

| Related Machines |

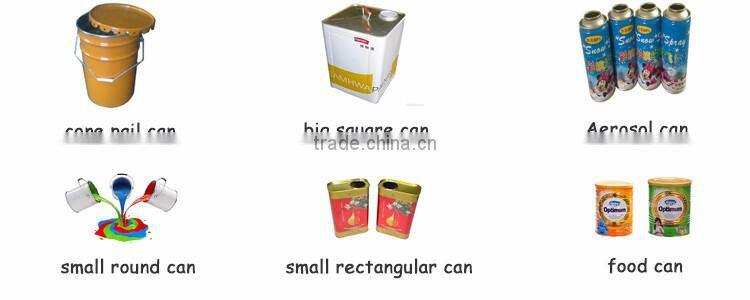

| Sample Cans |
| Why Us ? |
1)We are orignial manufacturer.
2)We have more than 15 years' experience in tin can machine industry.
3)We supply complete automatic and semi-automatic production line for food can,aerosol can,chemical can,locking can and so on.Our products have been exported to Dubai,Spain,Greece,Iran,Indian,Indonesia,Ecuador and so on.
4)Our products offer one year warranty.Engineers available to service machinery overseas.

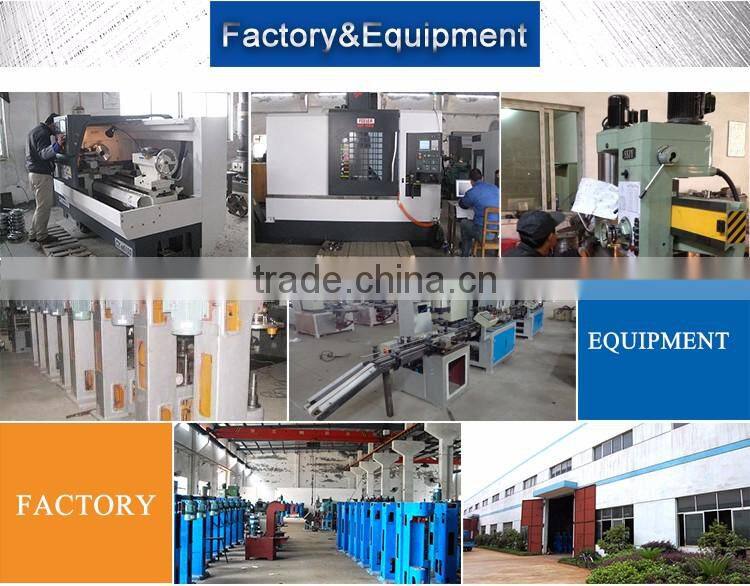

| About Us |
Contact Us
- Jiujiang Yongxin Can Equipment Co., Ltd.
- Contact nameSara kang Chat Now
- Phone86-792-8326978
- AddressNO.5 AN TAI ROAD AUTOMOBILE INDUSTRY AREA, Jiujiang, Jiangxi
