Specifications
1.Home and hotel laundry soap machine2.whole soap machine line
3.maintenance easily
4.stable performance
5.CE certificated

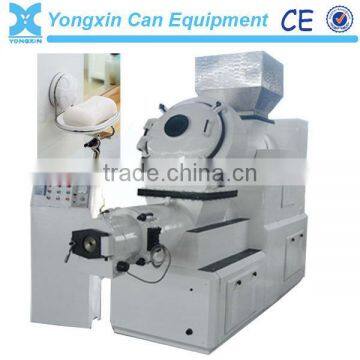

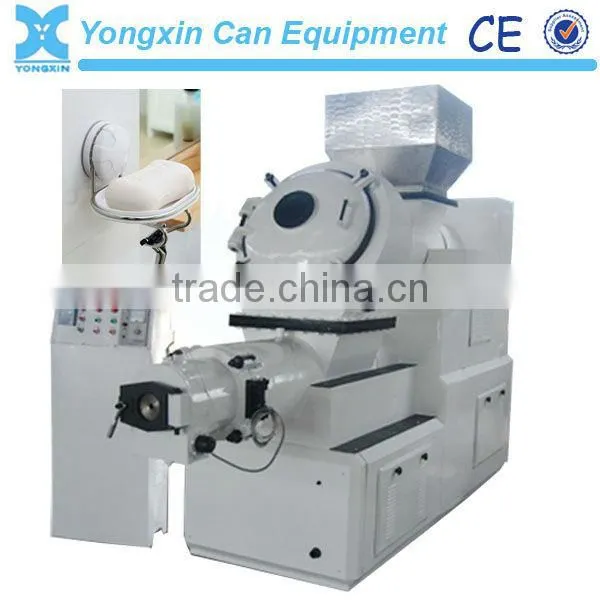

XT-1200 Soap Extruder / soap extruding machine
1.Function XT-series Toilet Soap Strip Output Machine is specialized equipment which is used to produce semi-finished soap of plastic strip-shape after being grinded, extruded and exhausted. The semi-finished soap is to be cut into lumpish soap by toilet soap stamp machine.
2.Features XT-series Toilet Soap Strip Machine is driven by the closed gears. The body of the machine being strongly welded, it is firm, efficient, artistic, less noisy and good quality. Parts of the machine which contact the soap materials in the production are made of high quality stainless steel.
3.Main technical index
Model number |
XT-1200 |
Production capability |
670-1200kg/h |
Outside diameter of screw rod |
300mm |
Rotation speed of screw rod |
upper rod 12 |
lower rod 10-16 | |
Power of motor |
small 15 kw |
large 22kw | |
Measurement |
3818*1000*2288mm |
Weight |
5800kg |
Production Flow Chart(capacity:350Kgs/Hour)
Equipments For Soap Making Production Line
1. Soap mixing machine
| Model | S-125 | |||
| Mixing time: | 4-6 minutes | |||
| Mixing capacity: | 150kgs/time | |||
| Mixing Speed: | 32r/min | |||
| Pressure: | 0.4-0.8Mpa | |||
| Motor power: | 7.5kw | |||
| Dimension: | 2300*800*1400mm | |||
2. Soap grinding machine
| Model | S260 | |||
| Diameter of roller: | 260mm | |||
| Length of roller: | 675mm | |||
| Power: | 7.5kw | |||
| Rate of roller speed: | 1:03:09 | |||
| Motor power: | 7.5kw | |||
| Dimension: | 1650×1350×1100mm | |||
| Weight: | 2318kgs | |||
3.Soap vacuum plodder machine
| Model: | XT-500 | |||
| Capacity: | 500kgs/hour | |||
| Diameter of screw: | 200mm | |||
| First speed&Power: | 15rpm, 11kw | |||
| Second speed&Power: | 8-16rpm,7.5kw | |||
| Vacuum pump power: | 2.2kw | |||
| Dimension: | 3200*1400*2500mm | |||
| Weight: | 4000kgs | |||
4.Conveyor
| Model: | XD-P04 | |||
| Capacity: | 500-1000kgs/h | |||
| Gradient: | ≤40° | |||
| Motor power: | 1.5kw x 4 = 6kw | |||
5.Soap stamper
| Model: | XD-120 | |||
| Capacity: | 80-120pcs/min | |||
| soap's weight | 80g-100g | |||
| Motor power: | 3kw | |||
| Dimension: | 1500×950×1300mm | |||
| Weight: | 1750kgs | |||
6.plastic Packing machine(with date marked)
| Model: | SZ320D | |||
| Capacity: | 50-120pcs/min | |||
| Max Packing width: | 330mm | |||
| Packing Dimension: | L 150-330mm/ W 50-160mm | |||
| Motor power: | 220V 50/60hz 2.6kw | |||
| Weight: | 700kgs | |||
| Remarks : | optional date labeling device | |||
After-sales:
a.Technical support online service provided.
b.Technical files service provided.
c.On-site training service provided.
d.Spare parts replacement and repair service provided
