Home > Packaging & Printing > Packing Machinery > Packing Line > 10-20L Food Oil Chemical Square Tin Can Production Line

10-20L Food Oil Chemical Square Tin Can Production Line

US$ 15,000 - 16,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Application:

Chemical, Food

Packaging Type:

Case

Contact Supplier Request Quote Chat Now

Jiujiang Yongxin Can Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Application Chemical, Food

Packaging Type Case

Packaging Material Wood

Automatic Grade Semi-Automatic

Driven Type Electric

Voltage 380V

Power 1.1KW

Place of Origin Jiangxi, China

Brand Name YX

Model Number GT1B5

Dimension(L*W*H) 1500*1600*1105mm

Weight 1400KG

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

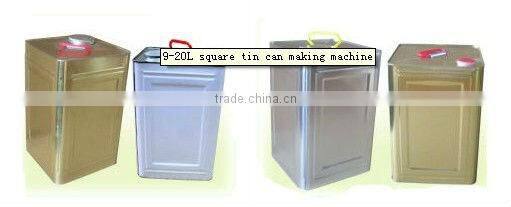

10-20L food oil chemical square tin can production line

Product Description

We supply complete production line for 10-20L square tin can making. Square can is widely used for food, oil or chemical products packing

1. The cutting machine

GT1B5 gang slitter
for steel or other metal shear volume iron,for the canning jar-cover or cans.

The main technical parameters:

Adaptability:Max.Sheet Thickness	0.4mm
Max.Sheet Width	1050mm
Min.Sheet Width	44mm
Using Motor	1.1kw
Net Weight	1400kg
Dimension	150016001105mm

2. Automatic Rolling forming machine

Capacity	40 cans/min
Can Height	Max.420mm
Power	0.25kw
Weight	50kg
Dimension	700mm×400mm×840mm

3. FH18-52 semi-Automatic can body welding machine

1.The main parameters

Linear rate of welding	6-18m/min
Production capability	20~80Cans/min
Applicable can diameter	ø65~ø286mm
Applicable can height	70~420mm
Applicable material	Tinplate steel-based Temper:T2.5-DR8
Applicable material thickness	0.18~0.42mm
Seam welding landing	0.4mm 0.6mm 0.8mm 1.2mm
Seam point distance	0.5~0.8mm
Applicable copper wire diameter	ø 1.38mm ø 1.5mm

4. Square can forming machine

GTFY-18 Square can body forming machine

function

It's combined with process of expanding the container into square,angel tendon pressing and cover panelings.the can body is stretched at the same time,which ensures the can body not be contorted,deformed for rebound,and save energy sources.it's mainly used in the one-off forming of the 5-gallon square container body.

Scope of application	big square containers of 9-20L(need change mold)
Maximum oil pressure	12Mpa
Adaptive material thickness	0.2-0.4mm
Working air Pressure	0.3Mpa
Capacity	10-15 cans per minute
Volume of oil tank	130L
Power of motor	7.5kw
Outline size	14007201200mm
Applied electric source	AC380V 50HZ
Overall Weight	900kg
