Home > Products > Water or Oil Bath Series > Double-layer Glass Reactor Heating Device Circulating Water/oil Bath
Double-layer Glass Reactor Heating Device Circulating Water/oil Bath
- 800 Set / Sets per Month
- Shanghai Tianjin Qingdao Nningbo Lianyungang etc.
- T/T L/C D/P D/A Credit Card PayPal
- Heat treatment vacuum furnace
- Atmopshere box furnace resistance furnace
- tube furnace facotry sale cheap price
- muffle furnace shanghai factory furnace box furnace
- MD series intelligent microwave digestion device for food industry heavy metal detection
- Laboratory high-purity nitric acid purifier ultra-pure hydrochloric acid purification system low-background hydrofluoric acid preparation system
Product Details
Brand Name: | ZZKD | Model Number: | GYY | Place of Origin: | Henan, China |
Product Description

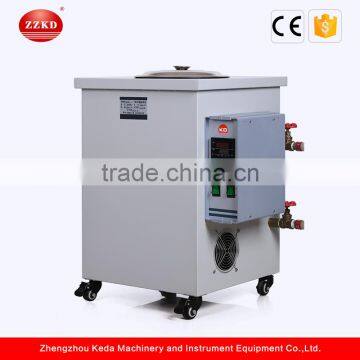

Double-layer Glass Reactor Heating Device Circulating Water/oil Bath
Brief introduction
Double-layer glass reactor heating device circulating water/oil bath is made of electrostatic spray shell, all stainless steel liner. There has a compact structure, safe and convenient, precise temperature control, the output flow control and energy~saving features. This device is designed and manufactured for supporting double layer glass reactor to provide thermostatic circulation heat sources, and also can be used in any occasions which need thermostatic circulation heat sources.
High temperature circulating oil bath is widely used for drying, concentration, distillation, dipping in chemical reagents, dipping medicines and biological products. It can also be used to water bath temperature heating and temperature test, is necessary device for biology, genetics, viruses, aquatic products, environmental protection, medicine, health, biochemical laboratory, analysis room, education scientific research.
Technical parameters
Model | GYY-5L | GYY-10L | GYY-20L | GYY-30L | GYY-50L | GYY-80L | GYY-100L | |
Function | Liquid storage volume (L) | 5 | 10 | 20 | 30 | 50 | 80 | 100 |
| No~load maximum temperature (℃) | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Heating power (KW) | 2.6 | 2.8 | 3.5 | 4.5 | 9 | 9 | 10 |
Cycling performance | Power | 220V/50HZ 380V/50HZ | ||||||
| Pressure | 1.45Mpa | ||||||
| Cycle way | Sealed magnetic pump cycles | ||||||
| Cycling power |
| ||||||
| Flow rate | 15-20L/min | 30-50L/min | |||||
Tempe control performance | Temp control range (℃) | Water bath :RT~99 Oil bath :RT~250 | ||||||
| Temperature error | ≤2.50% | ||||||
Working condition | Power | 380/220V 50Hz | ||||||
| Humidity | 60% | ||||||
| HTF viscosity | Below 500C℃·S·t | ||||||
Currents(A) | 10 |
Features

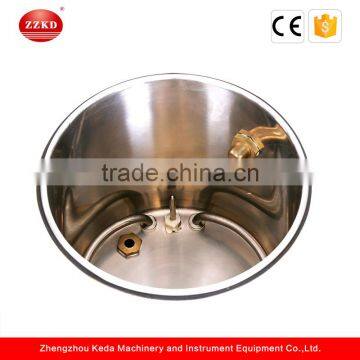

1. This product adopts imported stainless steel plate materials for the tank. Choose high quality plate electrostatic spraying plastics for shell.
2. Electric heating tube will be immersed in the oil, quick heating, high thermal efficiency, power saving, and electronic constant temperature.
3. There are insulating the cotton between shell and liner, excellent heat preservation effect. Available for all kinds of the same high temperature bath pot.
4. High temperature circulating pump adopts full stainless steel magnetic pump, has a stable performance, reliable quality, no leakage, etc.

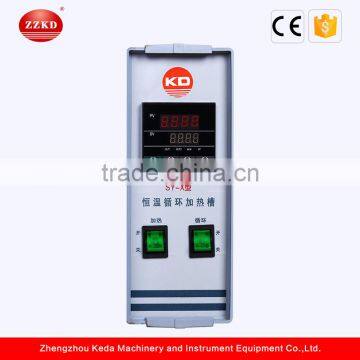

5. Digital display temperature control, simple operation, eye-catching.
6. The PID control, there have advantage temperature control accuracy and small temperature stamping.
7. The circulatory system is made by stainless steel, copper; anti-rust, anti-corrosion, etc.
8. The solid state relay control circuit, contact-less,halogen-light,increase longevity.
9. Vertical structure, with trundle, mobile convenience.
10.The high~performance circulating pump of circulating water/oil bath can provide external loop, constant temperature heat source to the reaction kettle.

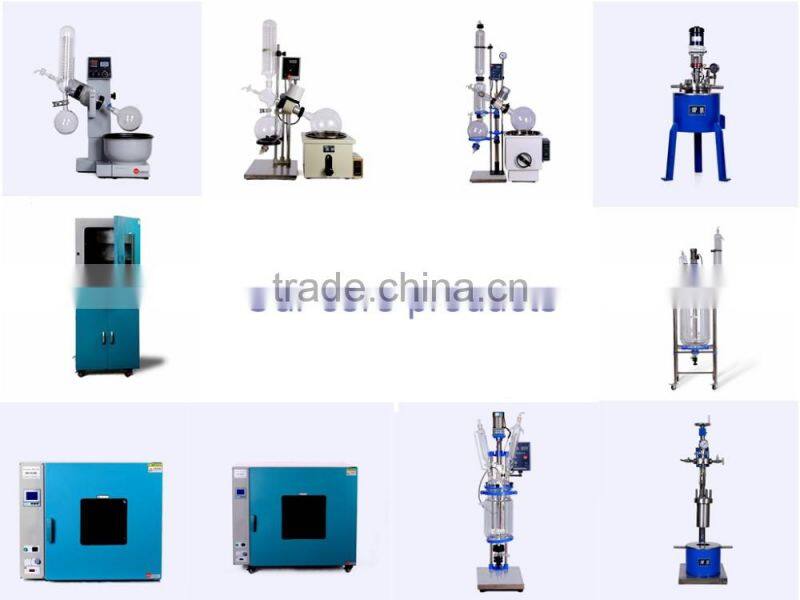

Our products
Related products
HH-S water /oil bath

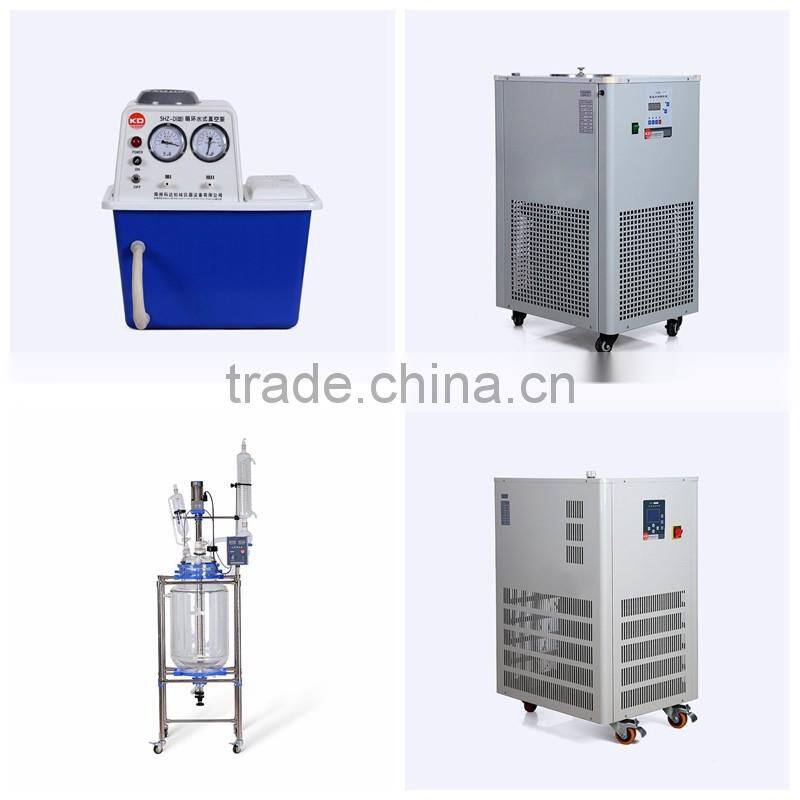

Ancillary equipment
Circulating water vacuum pump: To provide a vacuum source.
Low temperature cooling liquid circulating pump: Low temperature reaction and Re-flux, condensation.
Jacketed glass reactor: Continuous stirred and reaction.
High and low temperature all-in-one: High and low temperature experiment reaction.
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd.
Our company always adheres to the "quality casting brand, professional achieves service" business philosophy, and the main product is rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cooling chiller), vacuum drying oven, blast drying oven,high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high prais in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt, etc.
The quality of the products, also full affirmation and praise by our domestic and foreign customers.
Business Type: Manufacturer, Trading Company;
Location: Henan, China (Mainland);
Year Established: 2009;
Total Revenue : US$1 Million - US$2.5 Million;
Registration No: 410105000067362;
Main Markets: Central America,Mid East,Oceania,Africa,South America and so on.
Service Promise
1. Products quality guarantee is for one year,after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems ,our company will maintain free of charge.
3. Beyond the warranty period ,products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Technology Service
1. We have a mobile repair service team in our company , to carry out maintenance , consulting services in China for many years.
2. Users encounter problems when using our products , please contact us by telephone or email,we will be ready to provide consulting, maintenance and other services immediately.
CE Certification
1. Can I use oil bath instead of water bath ?
Yes.
2. Which heat transfer oil you recommend ?
320 high temperature heat transfer oil, or according your requirement .
3. Are you equipped with heat transfer oil free ?
Sorry, we can not provide heat transfer oil, because oil is prohibited to delivery.
4. What's the minimum order quantity?
One set at present.
5. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
6. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
