Detail Vacuum Pump Specifications
- 1000 Set / Sets per Month
- Tianjin Qingdao Dalian Lianyungang Ningbo Guangzhou etc.
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Henan, China | Brand Name: | ZZKD | Model Number: | SHZ-D(III) |
Theory: | Vacuum Pump | Structure: | Multistage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, electric |
Pressure: | Low Pressure | Application: | Other, water circulating |
Product Description
Brief Introduction:

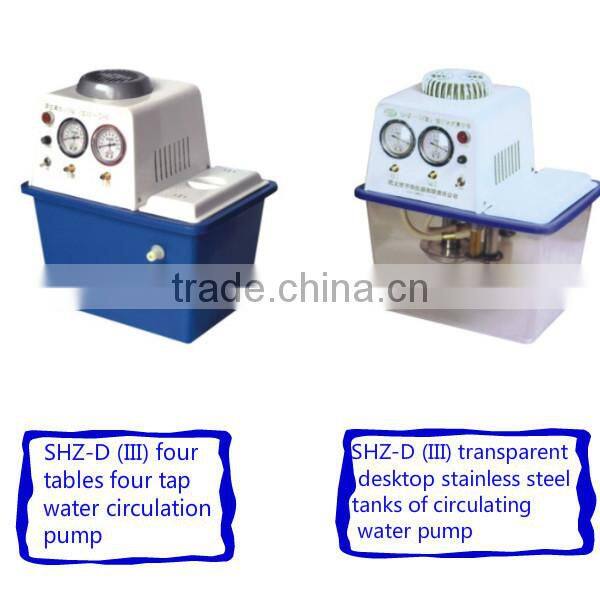

Circulating water multipurpose vacuum pump is the device with circulating water as working fluid, and it adopts jet technology to create negative pressure. According to the appearance is divided into desktop type and vertical type ( vertical type has larger capacity relatively). Desktop type also is divided into anti-corrosion type and stainless steel type, according to motor material. Transparent tank vacuum pump is available.
The pump adopts one modeling shell, small size on the basis of multi-purpose vacuum pump. It has small volume, light weight, beautiful appearance etc characters. Double-meter, double-tap pump and four-meter four-tap, double-side multi-purpose pumps is easy to do visual experiment for teachers as well as to turn off and on for students at any side.
Features:

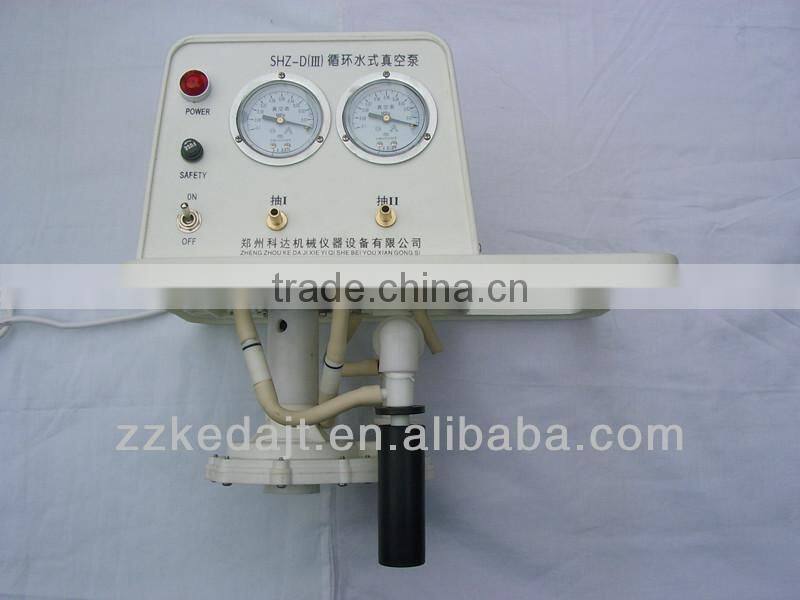

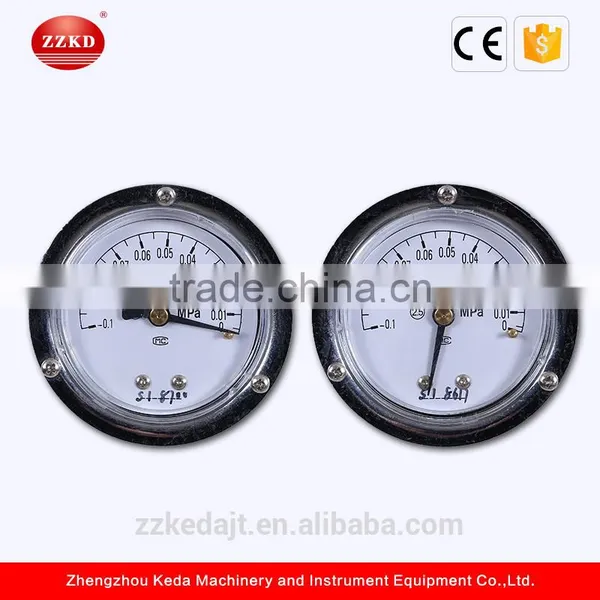

(1)Double taps, two vacuum meters, alone or in parallel.
(2)Newly improved anti-corrosion four taps, with four vacuum meters, alone or in parallel.
(3)Motor material: stainless steel or anti-corrosion material.
(4)Corrosion resistance pump, free-pollution, low noise and move easily. Vacuum regulator is available according to customer’s needs.
(5)Accommodate four people for chemical test, reduces the cost, and also saves the space.
(6)To prevent it to work long hours after high temperature, vacuum degree is reduced, specially add ice hole to add ice when water temperature too high vacuum degree reduced.
(7)Reasonable design, compact structure, security encapsulation.
(8)Absorb the harmful gas, environmental friendly, to ensure physical and mental health.
(9)Resistance to acid and alkali solvent
(10)Special customized motor by well-known manufacturers, fluorine rubber mechanical seal to keep no corrosive gas into the motor.
(11)Water circulation to save precious water resources.
Application:
It provides vacuum condition for evaporation, distillation, crystallization, drying, distillation, filtration pressure, vacuum degassing experiments. Especially suitable for colleges and universities, research institutes, chemical, pharmaceutical, biochemical, food, pesticides, agricultural engineering, biological engineering etc industries’ scientific research, pilot and production .
Technical data:
Model | With machine Performance | The machine performance | Dimension(mm) | Weight | Ultimate vacuum. | Security performance | |||||||
Power | Voltage | Flow | Lift | Body material | Max. pressure | Sucking rate for single tap |
| Tank capacity | |||||
SHZ-D(Ⅲ) | 180 | ~220/50 | 60 | 8 | Anti-corrosion/1Cr18 | 0.098 | 10 | 2 | 15 | 400×280×420 | 15 | 26KPa | Counte rcurrent prevent valve |
SHZ-D(Ⅲ) | 370 | ~220/50 | 60 | 8 | Anti-corrosion | 0.098 | 10 | 4 | 15 | 400×280×420 | 15 | 26KPa | |
Remark | Can equipped with 2L,5L glass reactor or rotary evaporator The vacuum is better when the water temperature is between 4℃ and 10℃ |
Zhengzhou Keda Machinery and Instrument Equipment Co.,Ltd.
Our company sells recycled water vacuum pumps, rotary evaporators, thermostatic magnetic stirrers,
glass reactors, low temperature cooling circulating pumps, oil baths, electric mixers, ovens, water baths, freeze-drying machines, electronic energy-saving temperature control devices, smart thermostats and electric experimental equipment sets.
With solid strength, reasonable prices and excellent services, our company has established long-term cooperative relationships with a number of enterprises.
The vacuum meter will be packed in wooden cases or as your request.
Shipment: By sea,air or as your desire!
Safe,fast and reliable.
Serial No. | Common faults | Problems may happen | Elimination method |
1 | No vacuum or vacuum vague is not accuracy | 1.Motor speed is slow or voltage is too low | Check the voltage stable or not |
2 Vacuum bottles, check valve dirt clogging or corrosion | Clean up the dirt or replace new bottles and new valve core | ||
3.Water inlet interface, filter network blocked | Cleaning,and taking out of internal dirt | ||
4.Impeller loss | Change a new one | ||
5.water into vacuum gauge water or air leakage | Clean the water, make the clock back to zero or replace a new one | ||
6.Vacuum pipes blocked or pipe crack | Clean it or replace the new tube | ||

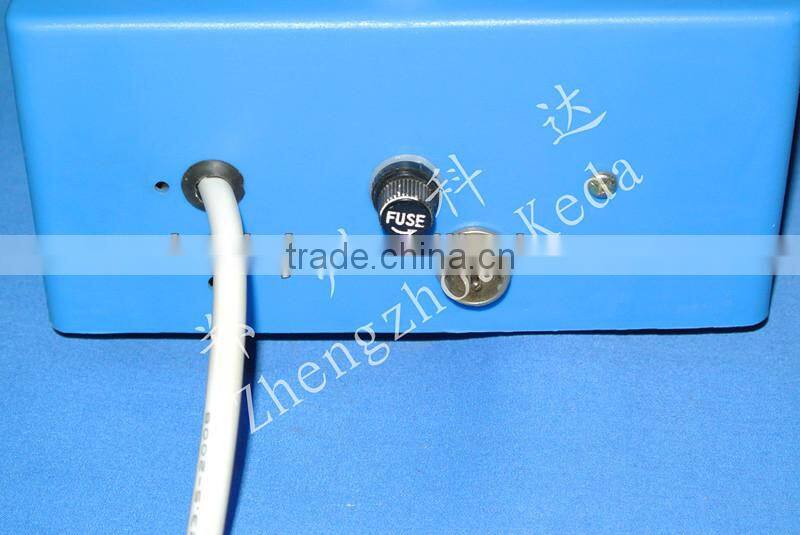

2 | Motor does not work | 1.fuse burn out | Change a new one |
2. Run capacitor breakdown | Replace the new one equal to the original capacity | ||
3. Motor winding burned | Replace the new machine | ||
4. Bearing abrasion , seriously stuck | Replace new bearing | ||
5.The impeller were mountains to death | Clear clutter, correcting impeller position | ||
6.Loose thread virtual welding or line card | Welding, line card is tight | ||
3
| Motor heat, too much noise | 1.Bearing wear | Replace new bearing |
2.The impeller wear deformation | Replace the new impeller | ||
3.Voltage instability or voltage is too low | Check whether the line overload and presence of low voltage phenomenon | ||
4 | Tank water | 1.Filter tube drainage direction is not correct | Adjust the direction of drainage |
2.Water level is too low | Add water to the weir | ||
5 | leaking | 1.Water tank overflow water nozzle loose or seal aging | Tighten the water nozzle or replace the sealing ring |
2.Water tank burst | Replace the water tank |
Products quality guarantee is for one year,after the product was sold.
In the warranty period, the users operate according to instruction and meet problems,
and our company maintains free of charge.
Beyond the warranty period,products problems can also be solved by my company maintenance,
but charge wiring components fees properly.
Hot line:(86)0371-86126825(24h)
Mobile phone:13783441102
Website: /
We are on big sales now if you have any needs pls do not hesitate to contact us,we will reply to you within 24 hours!!!
