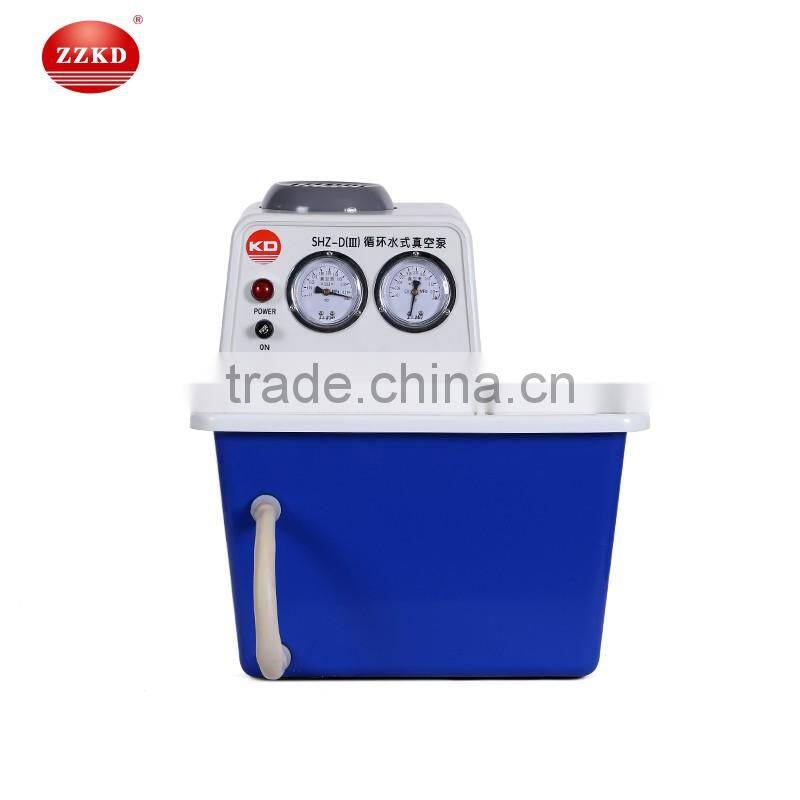

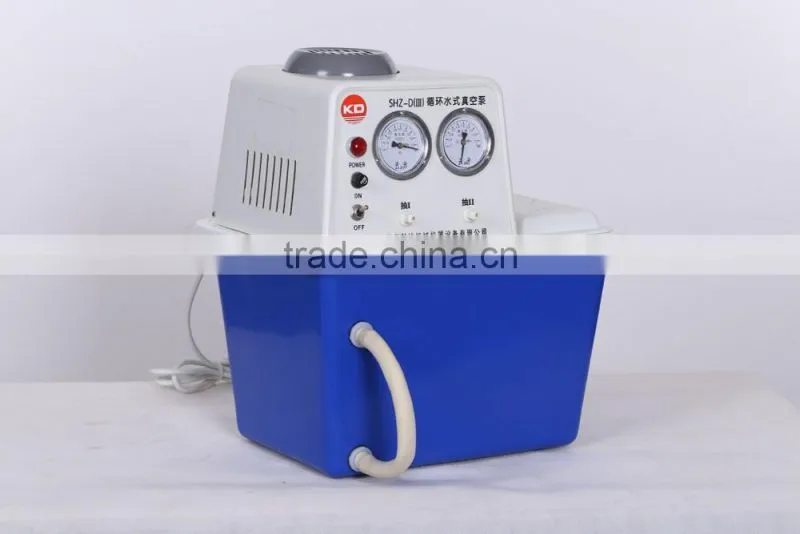

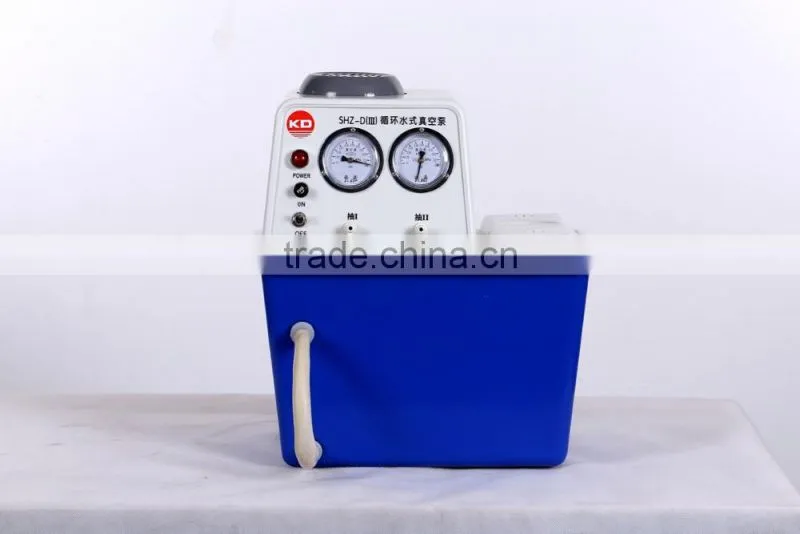

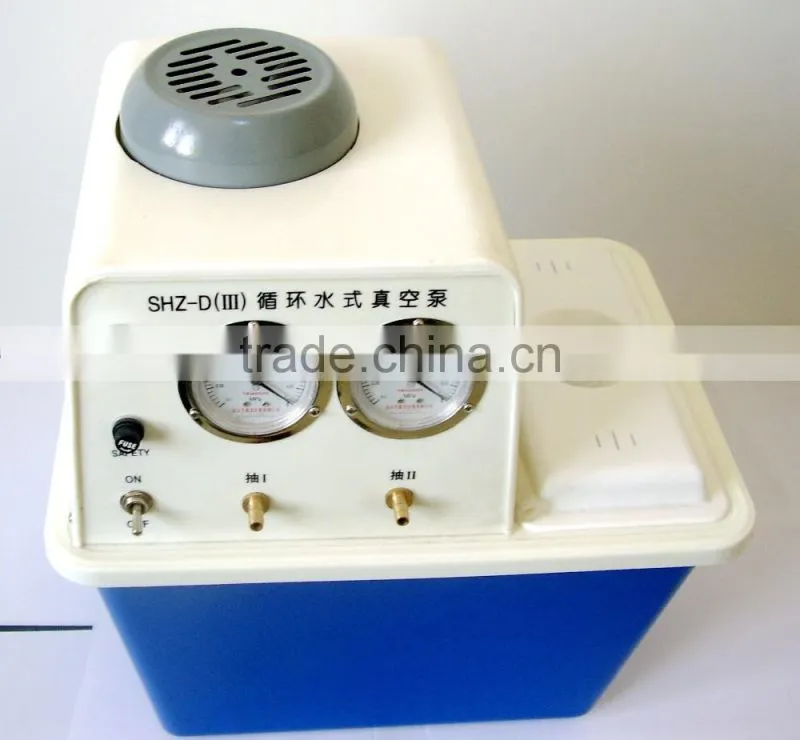

KD Circulating Water Vacuum Pump Systems
- 890 Set / Sets per Month
- Tianjin Qingdao Dalian Shanghai Ningbo Zhengzhou etc.
- T/T L/C D/P D/A Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Henan, China | Brand Name: | ZZKD | Model Number: | SHZ-D |
Theory: | Vacuum Pump | Structure: | Single-stage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, electric |
Pressure: | Low Pressure | Application: | Metering |
Product Description
Brief introduction
Circulating water vacuum pump systems is the device with circulating water as working fluid, and it adopts jet technology to create negative pressure. According to the appearance is divided into desktop type and vertical type ( vertical type has larger capacity relatively). Desktop type also is divided into anti-corrosion type and stainless steel type, according to motor material. Transparent tank vacuum pump is available.
The pump adopts one modeling shell, small size on the basis of multi-purpose vacuum pump. It has small volume, light weight, beautiful appearance etc characters. Double-meter, double-tap pump and four-meter four-tap, double-side multi-purpose pumps is easy to do visual experiment for teachers as well as to turn off and on for students at any side.
Features
♦ Double taps, two vacuum meters, alone or in parallel.
♦ Newly improved anti-corrosion four taps, with four vacuum meters, alone or in parallel.
♦ Motor material: stainless steel or anti-corrosion material.
♦ Corrosion resistance pump, free-pollution, low noise and move easily. Vacuum regulator is available according to customer’s needs.
♦ Accommodate four people for chemical test, reduces the cost, and also saves the space.
♦ To prevent it to work long hours after high temperature, vacuum degree is reduced, specially add ice hole to add ice when water temperature too high vacuum degree reduced.
♦ Reasonable design, compact structure, security encapsulation.
♦ Absorb the harmful gas, environmental friendly, to ensure physical and mental health.
♦ Resistance to acid and alkali solvent
♦ Special customized motor by well-known manufacturers, fluorine rubber mechanical seal to keep no corrosive gas into the motor.
♦ Water circulation to save precious water resources.
Application
It provides vacuum condition for evaporation, distillation, crystallization, drying, distillation, filtration pressure, vacuum degassing experiments. Especially suitable for colleges and universities, research institutes, chemical, pharmaceutical, biochemical, food, pesticides, agricultural engineering, biological engineering etc industries’ scientific research, pilot and production .
Technical Parameter
Model | SHZ-D (Ⅲ) | SHZ-D(Ⅲ) four-meter, four tap | Remark |
Power (W) | 180 | 370 | Can equipped with 2L, 5L glass reactor or rotary evaporator. The vacuum is better when the water temperature is between 4℃ and 10℃. |
Voltage (V/Hz) | 220/50 | ||
Flow (L/min) | 60 | ||
Lift (m) | 8 | ||
Body material | Anti-corrosion /1Cr18 | Anti- corrosion | |
Max. pressure (Mpa) | 0.098 | ||
Sucking rate for single tap(L/min) | 10 | ||
Quantity of tap (Pcs) | 2 | 4 | |
Tank capacity (L) | 15 | ||
Dimension(mm) | 400*280*420 | ||
Weight(kg) | 15 | ||
Ultimate vacuum (kpa) | 26 | ||
Security performance | Anti~corrosion, counter~current prevent valve |
Notes: This machine is double tap or four taps, each vacuum gauge to display the corresponding vacuum degree of suction head.
