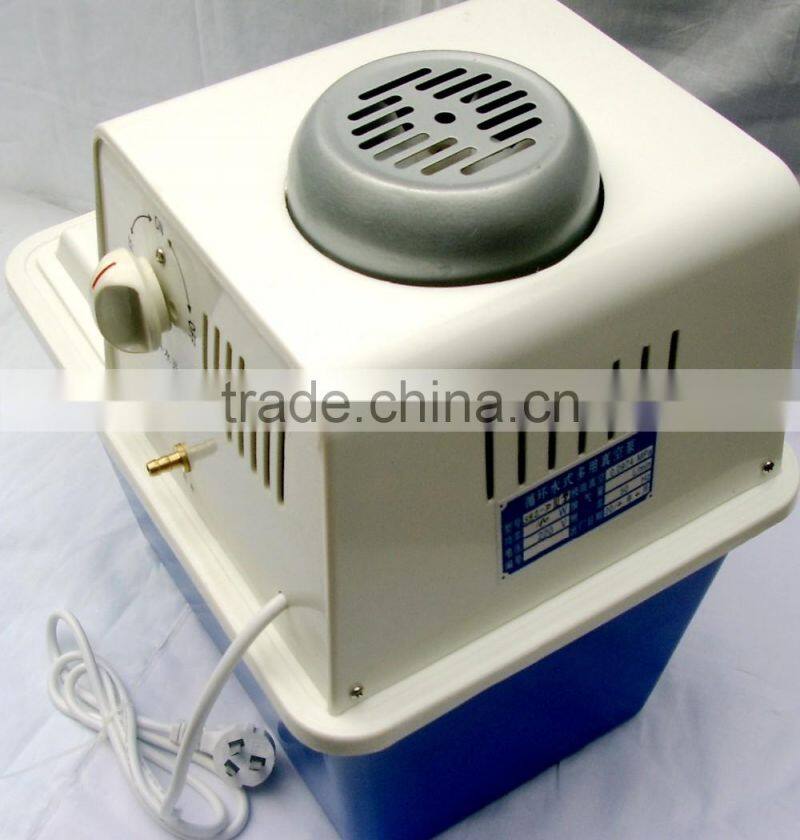

Small Liquid Circulating Vacuum Pump for Lab

Name: Small Liquid Circulating Vacuum Pump for Lab
Brand: ZZKD
SKU: 141526000
Availability: InStock

Zhengzhou Keda Machinery And Instrument Equipment Co., Ltd.

US$ 1 - 600 MOQ: 1 Set

Key Specifications

Place of Origin:

Henan, China

Brand Name:

ZZKD

Model Number:

SHZ--D

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Tianjin Lianyungang Ningbo Guangzhou etc.

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Henan, China

Brand Name ZZKD

Model Number SHZ--D

Theory Vacuum Pump

Structure Single-stage Pump

Usage Water

Power Electric

Standard or Nonstandard Standard

Fuel Other, electric

Pressure Low Pressure

Application Other, Offer vacuum source

Small Liquid Circulating Vacuum Pump for Lab

Detailed description

The small liquid circulating vacuum pump for lab is widely used in medium and large institution,

environmental protection, biochemical, medical, chemical, research and other fields. It has reasonable structure, easy operation, stable performance.

Specifications

♦ Reduced size and improvement made for laboratory use.

♦ The double table, double headed pumping air, may alone or the parallel use, and are equipped with add the add the ice hole.

♦ The moter is made of stainless steel or anti-corrosion material

♦ The maximum vacuum reach 0.098Mpa

♦ Low cost

Technical Data

Model		SHZ-D(Ⅲ)	SHZ-D(Ⅲ) four-meter, four tap	Remark
The machine Performance	Power (W)	180	370	Can equipped with 2L, 5L glass reactor or rotary evaporator. The vacuum is better when the water temperature is between 4℃ and 10℃.
	Voltage (V/Hz)	220/50
	Flow (L/min)	60
	Lift (m)	8
	Body material	Anti-corrosion/1Cr18	Anti-corrosion
The machine performance	Max. pressure (Mpa)	0.098
	Sucking rate for single tap(L/min)	10
	Quantity of tap (Pcs)	2	4
	Tank capacity (L)	15
Dimension(mm)	400280420
Weight(kg)	15
Ultimate vacuum (kpa)	26
Security performance	Anti~corrosion, counter~current prevent valve
