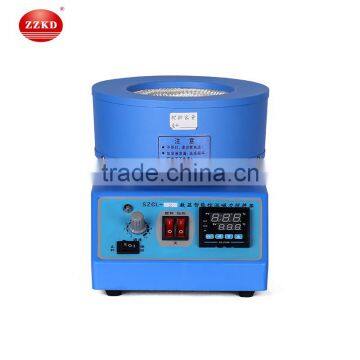

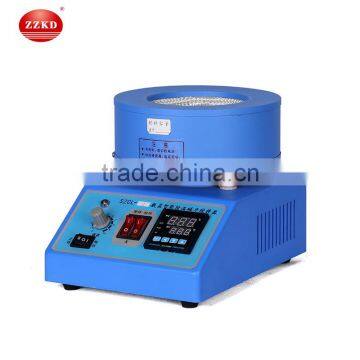

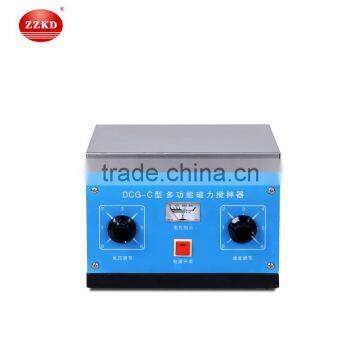

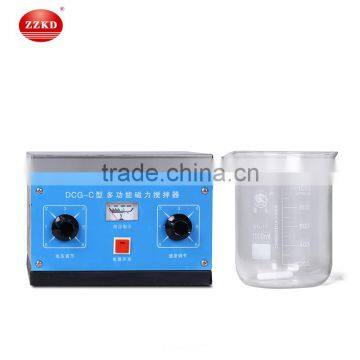

Ceramic Hot Plate with Stirring for Laboratory
About Our Products
Factory Direct Sale
ODM and OEM are all available
High Quality and Reasonable Price
About Us
32-year manufacture in China
Exported almost 100 countries in the world
High quality is our obligation
Great service is our mission
Features
1. Heat Plate material : black Ceramic material
2. Top Dimension : 140 x 140mm, 180 x 180mm , 230 x 230 mm,280 x 280mm
3. Temperature Range : Ambient to 380 °C
4. Heat Capacity for Beaker : 50ML - 15 l
5. Temperature Control : PID , Inner and outer Thermocouple
Techinical parameters
Top Plate Dimension(mm) | 140*140 | 180*180 | 230*230 | 280*280 | |
Heating Temp. Range(°C) | Ambient to 380
| ||||
Heat Control | Attemperation | ||||
Temp. Accuracy | ±1(°C) | ||||
Fixed Safety Circuit | 380(°C) | ||||
Permissible Ambient Temp. | Ambient Temperature to 40(°C) | ||||
Voltage | 220~240V, 50Hz 110V/60Hz | ||||
Power(W) | 260 | 350 | 600 | 750 | |
Stirring Flask Capacity(ml) | 50-500 | 50-2000 | 50-5000 | 50-10000 | |
Overall Dimensions(mm) | 265×155×120 | 325×215×120 | 430×270×150 | 500×330×150 | |
Packing Dimension(mm) | 315×205×170 | 375×265×170 | 480×320×200 | 550×380×200 | |
Shipping Weight(kg) | 2.2±0.2 | 4±0.2 | 7±0.2 | 9.5±0.2 | |
Working time | Continue | ||||
Inner Heat Wire | Cr20 Ni80 | ||||
The related products
Service promise
1. Products quality guarantee is for one year, after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Technology service
1. We have a mobile repair service team in our company, to carry out maintenance, consulting services in china for many years.
2. Users encounter problems when using our products, please contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.
