Home > Products > Hydrothermal Synthesis Reactor Series > 50ml Hydrothermal Teflon Vessel for Lab

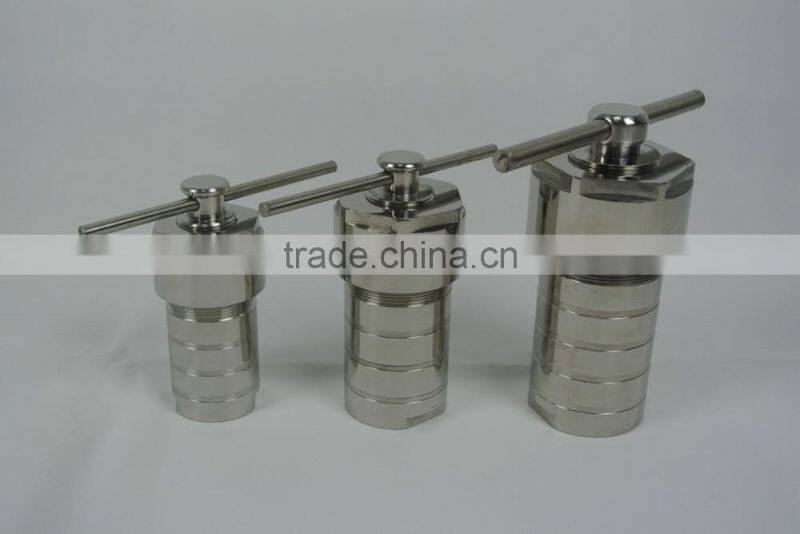

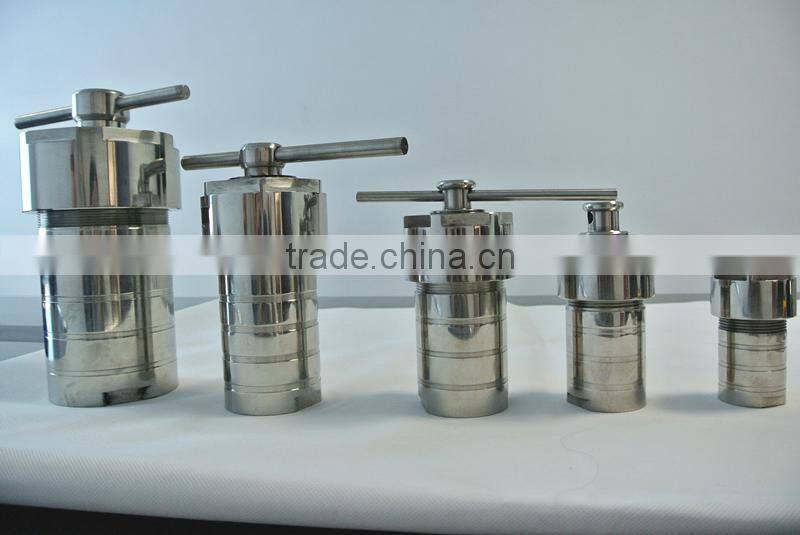

50ml Hydrothermal Teflon Vessel for Lab
- 500 Set / Sets per Month
- Tianjin Qingdao Dalian
- T/T L/C D/P D/A Credit Card PayPal
- Side Entry Mixing Equipment
- Small Jacketed Glass Reactor Double Layer Reaction Systems for Laboratory
- Lab Jacketed Glass Reactor 10 Liter Chemical Reactor for Research
- Mini Lab Jacketed Glass Reactor High Borosilicate Reaction Vessel
- Customized Industrial Chemical Reaction Jacketed Glass Reactor
- GG-17 Jacketed Glass Reactor Heating and Cooling Circulator Mixer Reactor
Product Details
Condition: | New | Automatic Grade: | Manual | Type: | Tower Reactor |
Place of Origin: | Henan, China | Brand Name: | ZZKD | Model Number: | KH-50 |
Voltage: | . | Power(W): | . | Dimension(L*W*H): | . |
Weight: | 2.0kg | Certification: | ISO | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Brief introduction
Hydrothermal teflon vessel is also called high pressure digestion tank, pressure dissolved shells which is finished by high quality stainless steel and PTFE. It with simple appearance, reasonable structure, while acid, alkali and corrosion are all resistance. Hydrothermal synthesis reactor is achieve the goal of rapid digestion of insoluble material by strong acid or alkali and high temperature and high pressure sealed environment in the tank. It is the right hand in sample digestion when it determined the trace elements and trace elements.
Technical data
Hydrothermal Synthesis Reactor | Model | Capacity(ml) | Material | Remarks |
KH-15 | 15 | Kettle body is stainless steel and the liner is PTFE | Max. Pressure is 3 Mpa | |
KH-25 | 25 | |||
KH-50 | 50 | |||
KH-100 | 100 | |||
KH-150 | 150 | |||
KH-200 | 200 | |||
KH-250 | 250 | |||
KH-300 | 300 | |||
KH-400 | 400 | |||
KH-500 | 500 | |||
KH-1000 | 1000 |
Liner temperaure
Liner temperature | ||
Lining color | Safe temperature (℃) | Max.temperature (℃) |
White | 220 | 240 |
gray | 260 | 280 |
Black | 280 | 300 |
Use and precautions
1. The heating should not exceed 200 ℃, heating rate ≤ 55 ℃ min, PID temperature control system can be used to control the temperature, cooling rate ≤ 5 ℃ min, safety pressure is 3 Mpa.
2. When you completed the reaction, please open the kettle cover until the kettle natural cooling to the room temperature.
3. The degree of filling in kettle should no more than 80%.
Notes: When heated to 100 degrees, please keep for 1 hour and then heated to the desired temperature, to ensure the longevity and safety of the equipment.
Product details
1. ZZKD Instruments provides one year warranty for the products described here.
2. The warranty covers part and manufacturing defects. In the case of a part or manufacturing defect, the device shall be repaired or replaced free of charge under the terms of the warranty.
3. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
4. ZZKD Instruments shall not assume liability for any damages incurred as a result of improper handling.
5. If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.
1. What’s the material of the shell?
Usually 304 stainless steel
316 stainless steel is available.
2. What’s the delivery time?
In stock for normal models.
3. How many kinds of your reactor?
Max 240 degree C liner and Max 280 degree C liner.
4. Note
When heated to 100 degrees, hold for 1 hour and then heated to the required temperature to make sure the long life and safe use.
