Laboratory Stirred Single Layer Glass Vessel
- 650 Set / Sets per Month
- Qingdao Shanghai Lianyungang Ningbo Guangzhou etc.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Automatic Grade | Semi-Automatic | |
| Type | Tubular Reactor | Place of Origin | Henan, China | |
| Brand Name | ZZKD | Model Number | F-20L | |
| Voltage | 220V | Power(W) | 90w | |
| Dimension(L*W*H) | 700*600*1600 mm | Weight | 65kg | |
| Certification | CE ISO | Warranty | One Year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

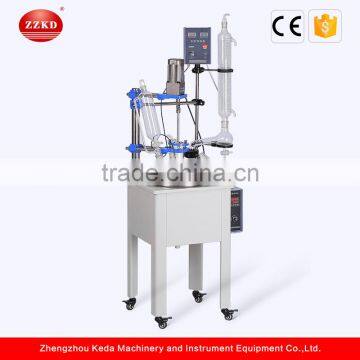

Laboratory Stirred Single Layer Glass Vessel
Function introduction
Single layer glass vessel is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole.
Circulating water vacuum pump can pump into the reactor sorts of liquids and gases. The reflux or distillation is possible under different temperature state.
The single layer glass vessel has water/oil heating bath or heating mantle itself. Water/oil bath temperature is digital display, which can meet constant temperature state, fast temp. rising, accurate controllers.1-50L is circular and more than 50L is cylinder. After heating we can add the cooling coil in the tank to cool the material in short time.
Features

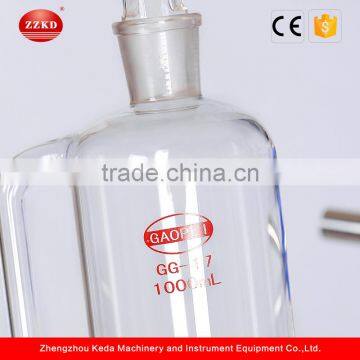

1. GG17 high-borosilicate glass with nice physical-chemical properties; experiment temperature -100 to 400 degree C; Resistant to strong acidic properties of materials; only touching with glass parts & PTFE, no cross-contamination.

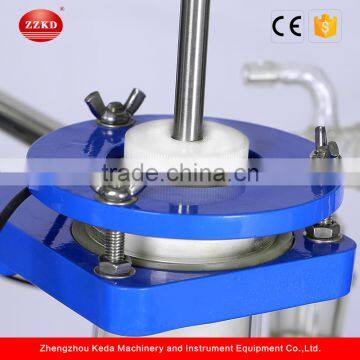

2. Precision Mechanical seal stirring to keep high vacuum degree.
3. Glass(PTFE)discharge valve, no-dead angle mixing, fast no residue discharge.

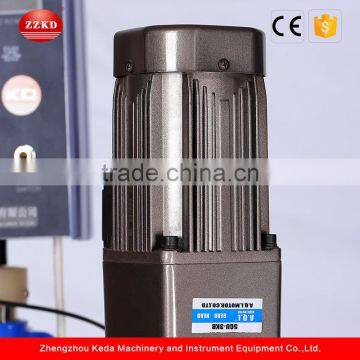

4. Frequency control speed gear motor, smooth running, high torque, automatic booster, no spark, noise free, long life.
5. SUS frame and cast aluminum material kettle body support, simple as well as strong; stable structure.
6. Circulating water/oil bath, heating mantle can supply the heating origin; Cooling mode machine: cool chiller, convenient and practical.
7. Scientific & innovative structure, practical, strong.
Heating principle
The heating coil in the tank heat the transfer medium-water or oil directly,(heating mantle heat the body kettle). Then the hot water or oil pass its hot energy to material in the kettle and stirring at the same time.
F-20L technical data
Model | F-1L | F-2L | F-3L | F-5L | F-10L | F-20L | F-30L | F-50L | F-100L |
Voltage(V) | 220V/50HZ | ||||||||
Stirring Power(W) | 40 | 60 | 120 | 250 | |||||
Stirring Speed(rmp) | 0-1000 | 60~600 | |||||||
Capacity(L) | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | 100 |
Heating Power(KW) | 0.4 | 0.8 | 1.3 | 2 | 3 | 4 | 5 | 5 | 7.5 |
Temperature Using Range | -80℃-250℃ | ||||||||
Voltage 110V or 380V is avaliable.
Mixing power, torgue can be customized according to customers’ demands.
Refrigeration components are optional.
Ancillary equipment
Circulating water vacuum pump: Used to provide a vacuum source.
Cooling chiller: Reflux, condensation and cool the material.
Packaging
-Wooden case or carton packaging
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd.
Our company always adheres to the "quality casting brand, professional achieves service" business philosophy, and the main product is rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cooling chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift platform, etc.
1. Pre-service
24 Hours online service for your consult.
Help choose right model, and a series of service, person, advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery, inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4. Good Packaging
All products are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
5. CE Certification
1. What's the max temperature?
Usually the high borosilicate glass can withstand over 300 degree centigrade and the PTFE stirring bar can withstand about 200 degree centigrade
2. What's the size do you have?
We can offer you 1L, 2L, 5L, 10L, 20L, 30L, 50L, 100L,150L.
3. How many kinds of your glass reactor?
Two types: jacketed glass reactor and single layer glass reactor.
Explosion proof is avaliable.
4. What’s the heating mode of single layer glass reactor?
Oil/water bath heating, and heating mantle
5. Can you offer the supporting facilities?
Yes, we can offer you the vacuum, heating and cooling system as you demand.
