1L-100L Lab S Double-layer Jacketed Glass Reactor
- Qingdao Shanghai
- T/T Credit Card
You May Like
-
2013 Hot Selling GG17 Borosilicate Glass Lab Jacket Glass Reactor 20L
-
1-100L High Vacuum Pharmaceutical Mixing Jacketed Glass Chemical Reactor
-
S-50L Explosion-proof Laboratory Cylindrical Double Layer Chemical Glass Reactor Price
-
2013 New Product Laboratory Reasearch Chemicals Vacuum Glass Reactor
-
20L Jacketed Glass Reactor
-
2014 Latest 1L 100L Chemical Glass Reactor Equipment
Product Details
| Condition | New | Automatic Grade | Semi-Automatic | |
| Type | Reaction Kettle | Place of Origin | Henan, China | |
| Brand Name | S | Model Number | keda | |
| Voltage | 220V/50Hz | Warranty | one year |
Product Description
Specifications
1.1-100L2.GG17
3.Synthetic chemical
4.Pilot

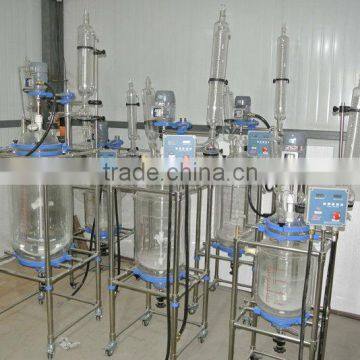

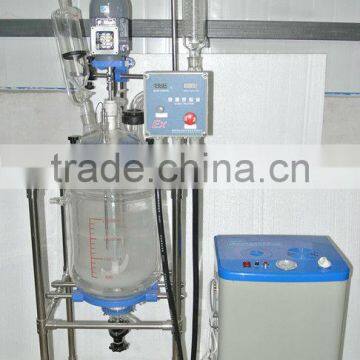

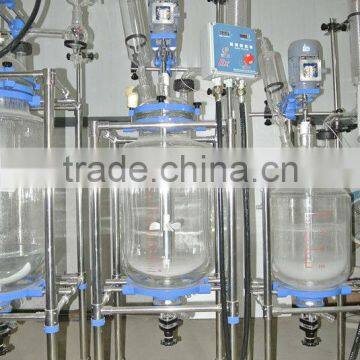

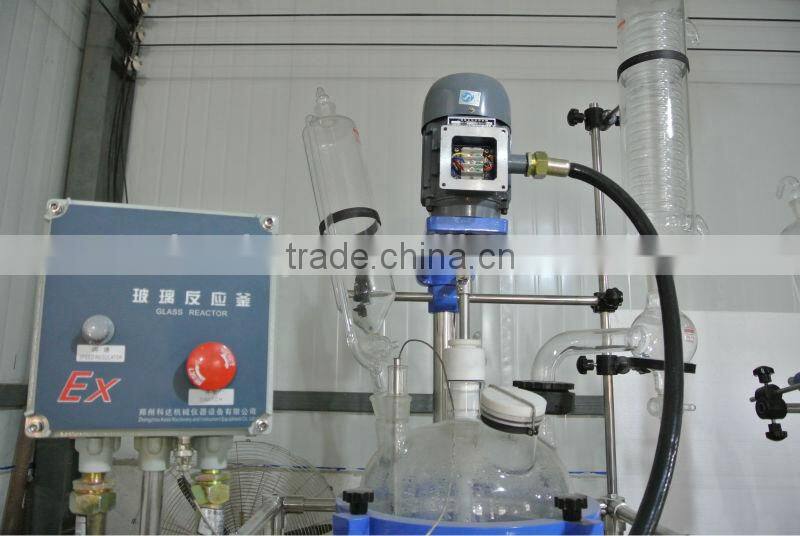

1L-100L lab S double-layer jacketed glass reactor
Detailed description
Based on actual customer requirements and standards for the production of new frequency control double glazing reactor, absorbed the advantages of international and domestic similar products. For the modern chemical, fine chemical, biological pharmacy, new material synthesis experiment and production of the ideal equipment.
Specifications
(1) Use borosilicate glass (GG17), has excellent physical and chemical properties.
(2) Frequency mixing, smooth and reliable, torque, no spark.
(3) Seal PTEF components, proprietary technology, keeps the market similar products the best vacuum (about -0.095mpa), leading, and equipped with debris collecting trough.
(4) A whole new stainless steel frame structure(the joints three links and stone are all stainless steel), a compact, sturdy walking type, angle wheel with brake, easy to move.
(5) Minimal or no dead PTEF discharge valve, the reactor body and the lid according to customer requirements.
(6) The heating (cooling) of the reaction interlayer solution after the reaction can be completely ruled out, not effusion.
(7) Cooling or heating, can according to customer requirements and matching products.
The matching equipment
Working principle
Reaction kettle for double glass design, within layer put reaction material, while may also pumping vacuum do mixing reaction; sandwich may connected heat source (frozen liquid, water or electric sets) do cycle heating or cooling reaction kettle within, may according to using requirements in atmospheric or negative pressure conditions, for mixing reaction, and can control reaction solution of evaporation and return.
Technical parameters
Model | S-10L | S-20L | S-30L | S-50L |
Stirring power(W) | 120 | 120 | 180 | 250 |
Stirring speed(r/mp) | 60~780 | 60~780 | 60~780 | 60~780 |
Motor torque(g/cm) | 10000 | 12000 | 12000 | 15000 |
Reaction flask(L) | 10 | 20 | 30 | 50 |
Discharge way | Bottom | PTFE Suck Discharging valve | ||
1.We are one of the leaders for Jacketed Glass Reactor, so we have the confidence in providing the professional products that you want.
2.We guarantee high quality and competitive price and one year warranty.
3. For more details, please feel free to contact us .
