Home > Products > Glass Reactor Series > 2017 New Corossion Resistance Glass Vessel
2017 New Corossion Resistance Glass Vessel
- 600 Set / Sets per Month
- Qingdao Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Lab Jacketed Glass Reactor 10 Liter Chemical Reactor for Research
- Mini Lab Jacketed Glass Reactor High Borosilicate Reaction Vessel
- Customized Industrial Chemical Reaction Jacketed Glass Reactor
- GG-17 Jacketed Glass Reactor Heating and Cooling Circulator Mixer Reactor
- 1-5L Single Layer Pyrex Borosilicate Tank Stirred Heated Glass Reactor
- 10L Digital Extraction Synthesis Laboratory Single Glass Reactor
Product Details
Condition: | New | Automatic Grade: | Semi-Automatic | Type: | Reaction Kettle |
Place of Origin: | Henan, China | Brand Name: | ZZKD | Model Number: | F-10L |
Voltage: | 220v | Power(W): | 40w | Dimension(L*W*H): | 1250*550*550mm |
Weight: | 42KG | Certification: | ISO CE | Warranty: | 12 months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
2016 New Corossion Resistance Glass Vessel
Function introduction of corossion resistance glass vessel :
The single layer glass reactor has water/oil heating bath or heating mantle itself. Water/oil bath temperature is digital display, which can meet constant temperature state,fast temp. rising, accurate controllers.1-50L is circular and more than 50L is cylinder. After heating we can add the cooling coil in the tank to cool the material in short time.
Features of corossion resistance glass vessel :
1.GG17 high-borosilicate glass with nice physical-chemical properties; experiment temperature -100 to 400 degree C; Resistant to strong acidic properties of materials; only touching with glass parts & PTFE, no cross-contamination.
2.Precision Mechanical seal stirring to keep high vacuum degree.

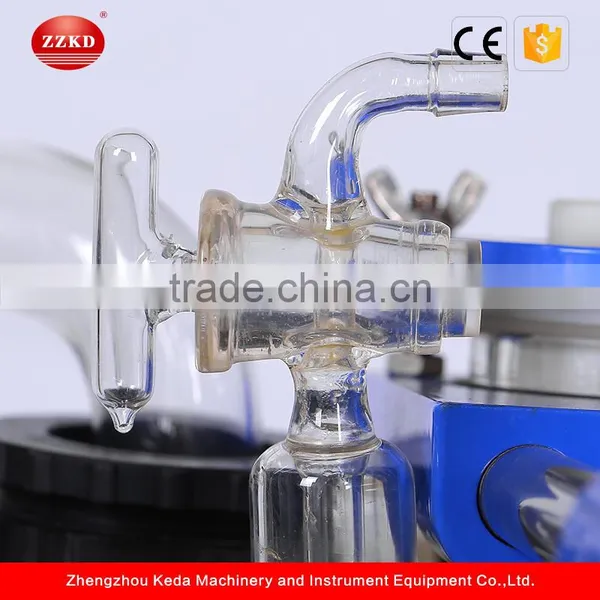

3.Glass(PTFE)discharge valve, no-dead angle mixing, fast no residue discharge.

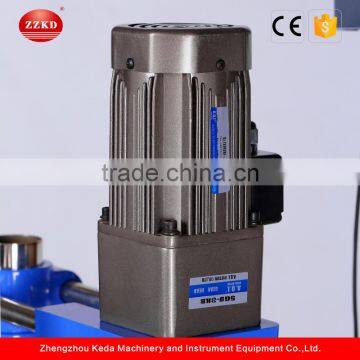

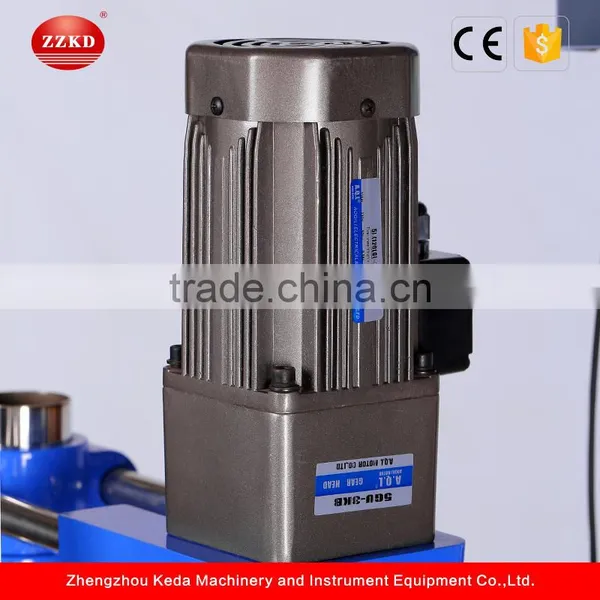

4.Frequency control speed gear motor, smooth running,high torque, automatic booster , no spark, noise free, long life.
5.SUS frame and cast aluminum material kettle body support, simple as well as strong; stable structure
6.Circulating water/oil bath, heating mantle can supply the heating origin; Cooling mode machine:cool chiller, convenient and practical
8.Scientific & innovative structure, practical, strong.
Heating principle of corossion resistance glass vessel :
The heating coil in the tank heat the transfer medium-water or oil directly,(heating mantle heat the body kettle). Then the hot water or oil pass its hot energy to material in the kettle and stirring at the same time.
Ancillary equipment of corossion resistance glass vessel :

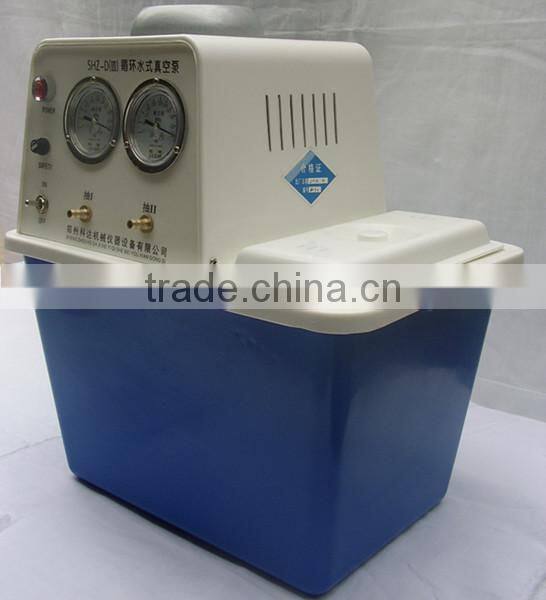

Circulating water vacuum pump:Used to provide a vacuum source

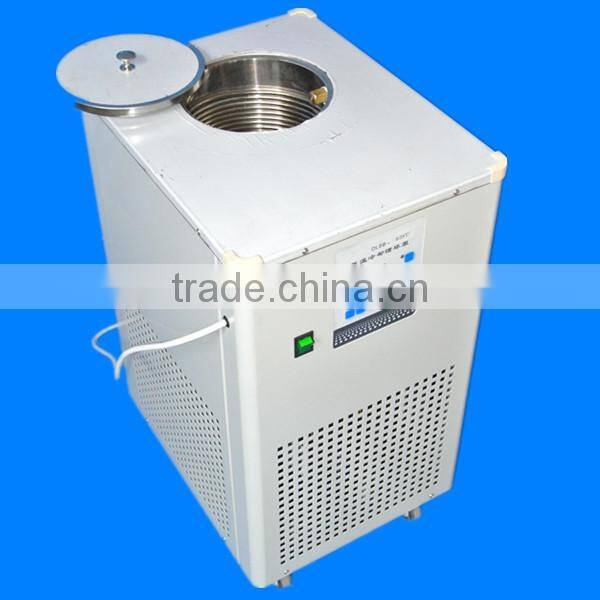

Cool chiller: Reflux, condensation and cool the material

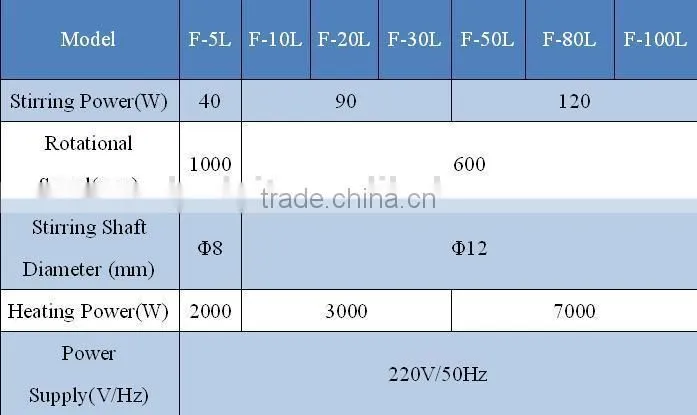

Technical Parameters of corossion resistance glass vessel :
Notes of corossion resistance glass vessel :
1.Please check whether the glass kettle intact or not,whether each interface is consistent or not. Please handle with care.
2.Wipe each interface with a soft cloth (napkin available),then apply a little vacuum grease.( Vacuum grease must be covered to prevent gray sand from entering after using.)
3. Each interface can not be over-tightened,loosening them periodically, avoid long-term furrowed causing connector tightened deadly.
4.First turn on the power switch, and then let the machine run from slow to fast speed. When the reaction is over, let the machine into static state , then off the switch.
5.Every PTFE switch can not be over-tightened, which is easy to damage the glass.
6.Please wipe the various traces of oil, stains, solvents left on surface to stay with a soft cloth after you completing the experiment.
7.After the shutdown, loosen each PTFE switch. Long time keeping still in working condition causes PTFE piston deformation.
8.Clean seals regularly.Method: Remove the seal ring, check the shaft plot dirt or not, wipe it with a soft cloth,then coat with a little vacuum grease, and re-install it to keep the shaft and seal smooth.
9.Keep the electrical parts dry, non-moisture!!
10.It’d better purchase the original authentic parts,use other machine parts may cause fatal damage.
11.Any repair or inspection be sure to cut off power and water.
Packaging
-Export wooden or carton packing
-Both neutral and customized packaging can be available
Shipping
-We can ship the goods to you per the below shipping methods and you can choose the appropriate one
based on your timeline and budget. Also you can definitely choose to use your own shipping agent.
Keda Machinery and Instrument Equipment Co.,Ltd.Our company sells recycled water vacuum pumps, rotary evaporators,thermostatic magnetic stirrers, glass reactors, low temperature cooling circulating pumps, oil baths, electric mixers, ovens, water baths, freeze-drying machines, electronic energy-saving temperature control devices, smart thermostats and electric experimental equipment sets.
With solid strength, reasonable prices and excellent services, our company has established long-term cooperative relationships with a number of enterprises.
1,What's the max temperature?
Usually the high borosilicate glass can withstand over 300 degree centigrade and the PTFE stirring bar can withstand about 200 degree centigrade.
2,What's the size do you have?
We can offer you 1L,2L,5L, 10L, 20L, 30L, 50L, 100L,150L.
3,What’s the heating mode of single layer glass reactor?
Oil/water bath heating, and heating mantle.
4,Can you offer the supporting facilities?
Yes, we can offer you the vacuum, heating and cooling system as you demand.
