KD 10L 50L Glass Reactor Machine for Lab
- 620 Set / Sets per Month
- Shangha Qingdao Dalian Shenzhen Lianyungang Ningbo etc.
- T/T L/C D/P D/A Credit Card PayPal
- Lab Jacketed Glass Reactor 10 Liter Chemical Reactor for Research
- Mini Lab Jacketed Glass Reactor High Borosilicate Reaction Vessel
- Customized Industrial Chemical Reaction Jacketed Glass Reactor
- GG-17 Jacketed Glass Reactor Heating and Cooling Circulator Mixer Reactor
- 1-5L Single Layer Pyrex Borosilicate Tank Stirred Heated Glass Reactor
- 10L Digital Extraction Synthesis Laboratory Single Glass Reactor
Product Details
Condition: | New | Automatic Grade: | Semi-Automatic | Type: | Tubular Reactor |
Place of Origin: | Henan, China | Brand Name: | ZZKD | Model Number: | F-10L |
Voltage: | 220V 50/60Hz | Power(W): | 120W | Dimension(L*W*H): | 630*560*1000 mm |
Weight: | 100KG | Certification: | CE ISO | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
KD 10L 50L Glass Reactor Machine for Lab
Brief introduction

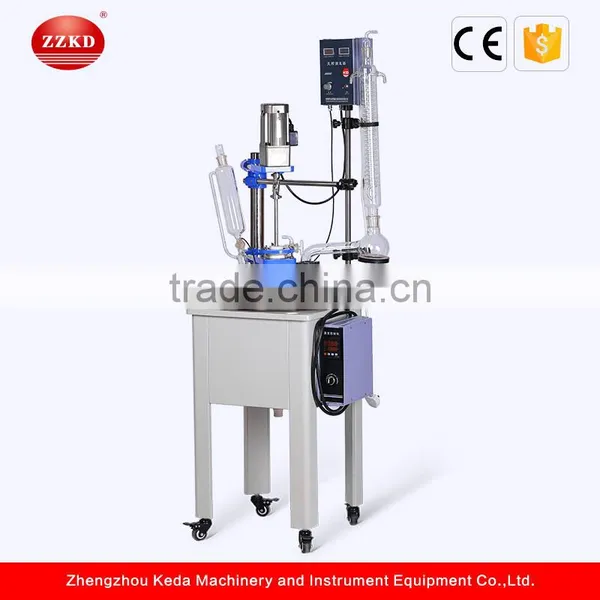

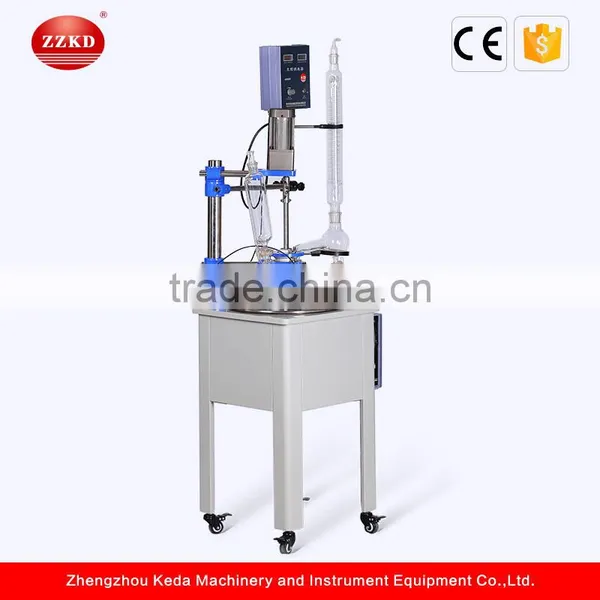

Single layer glass reactor is an equipment which is a collaboration of vacuum state, distillation, reflux, stirring, oil/water heating, heating mantle. It can do all kinds of biochemical reactions and synthesis reactions at a constant temperature condition. It is also a colsed system on the whole.
Circulating water vacuum pump can pump into the reactor sorts of liquids and gases. The reflux or distillation is possible under different temperature state.

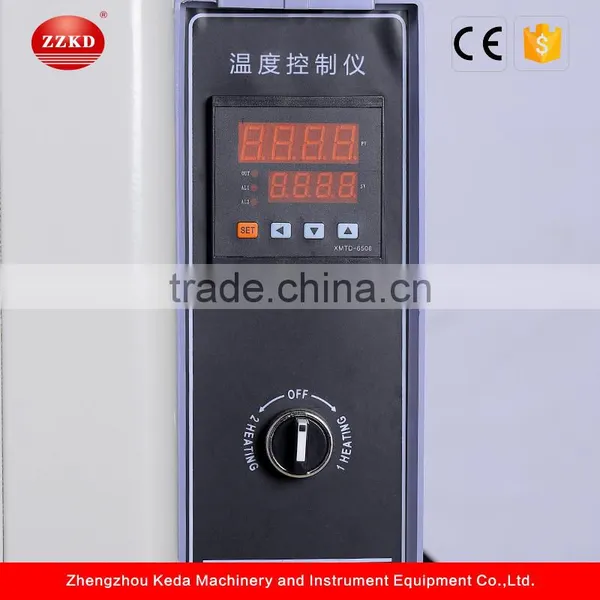

The single layer glass reactor has water/oil heating bath or heating mantle itself. Water/oil bath temperature is digital display, which can meet constant temperature state, fast temp. rising, accurate controllers.1-50L is circular and more than 50L is cylinder. After heating we can add the cooling coil in the tank to cool the material in short time.
Features
1. GG17 high-borosilicate glass with nice physical-chemical properties; experiment temperature -100 to 400 degree C; Resistant to strong acidic properties of materials; only touching with glass parts & PTFE, no cross-contamination.

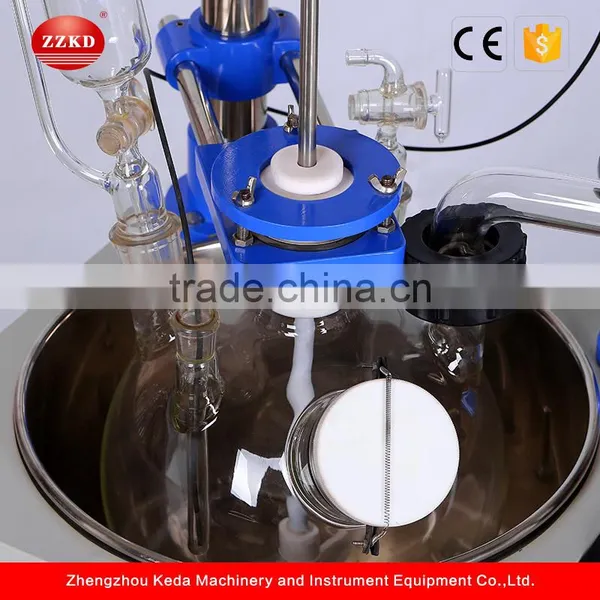

2. Precision Mechanical seal stirring to keep high vacuum degree.
3. Glass(PTFE)discharge valve, no-dead angle mixing, fast no residue discharge.
4. Frequency control speed gear motor, smooth running, high torque, automatic booster, no spark, noise free, long life.
5. SUS frame and cast aluminum material kettle body support, simple as well as strong; stable structure.
6. Circulating water/oil bath, heating mantle can supply the heating origin; Cooling mode machine: cool chiller, convenient and practical.
7. Scientific & innovative structure, practical, strong.
Heating principle
The heating coil in the tank heat the transfer medium-water or oil directly(heating mantle heat the body kettle). Then the hot water or oil pass its hot energy to material in the kettle and stirring at the same time.
Technical Data
Model | F-1L | F-2L | F-3L | F-5L | F-10L | F-20L | F-30L | F-50L | F-100L |
Voltage (V/Hz) | 220 50/60 | 380 50/60 | |||||||
Stirring Power (W) | 60 | 120 | 180 | ||||||
Stirring Speed (rmp) | 0-1000 | 60~600 | |||||||
Capacity(L) | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | 100 |
Heating Power(kW) | 0.5 | 0.8 | 1.2 | 1.5 | 3 | 4.5 | 6 | 9 | |
Heating Mantle Power (kw) | 0.53 | 0.65 | 0.73 | 1.1 | 2.1 | 3 | 3.8 | 5 | ...... |
Temperature Using Range(℃) | RT-250 | RT-350 | ||||||||
Motor Torque (g/cm) | 2000 | 2400 | 4800 | 1000 | 1200 | 1500 | 3000 |
TIPS:
1. Voltage 110V or 380V is available.
2. Stirring power, torgue, refrigeration components can be customized.
3. Customized configuration is available.
Ancillary equipment
Circulating water vacuum pump: Used to provide a vacuum source.

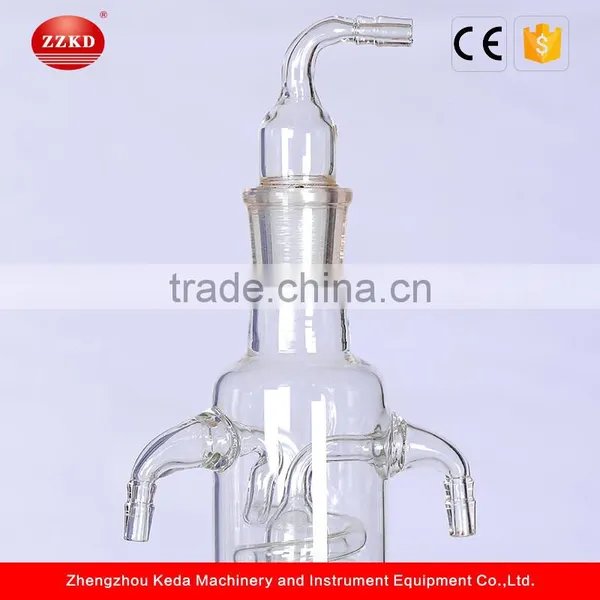

Cool chiller: Reflux, condensation and cool the material.
Packaging
-Wooden case packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
zhengzhou keda Machinery and Instrument Equipment Co., Ltd, established in 1981,is a famous manufacturer of Lab equipment located in the central China. We specialized in rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cooling chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift table and so on.
Service promise
1. Products quality guarantee is for one year, after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Technology service
1. We have a mobile repair service team in our company, to carry out maintenance, consulting services in china for many years.
2. Users encounter problems when using our products, please contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.
1, What's the max temperature?
Usually the high borosilicate glass can withstand over 300 degree centigrade and the PTFE stirring bar can withstand about 200 degree centigrade
2, What's the size do you have?
We can offer you 1L, 2L, 5L, 10L, 20L, 30L, 50L, 100L,150L.
3, How many kinds of your glass reactor?
Two types: jacketed glass reactor and single layer glass reactor.
Explosion proof is available
4, What’s the heating mode of single layer glass reactor?
Oil/water bath heating and heating mantle
5, Can you offer the supporting facilities?
Yes, we can offer you the vacuum, heating and cooling system as you demand.
6, What's the minimum order quantity?
One set at present.
