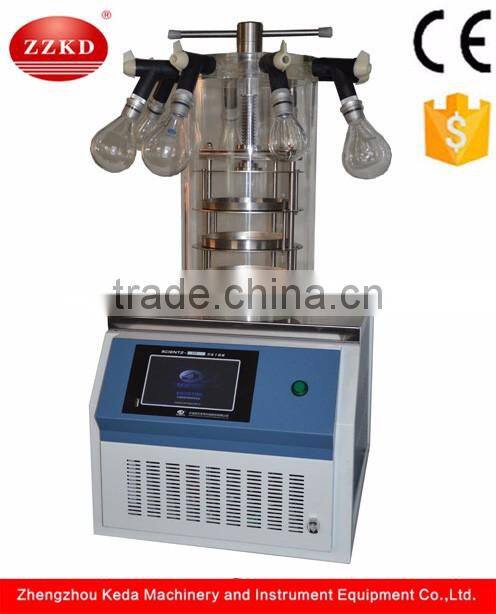

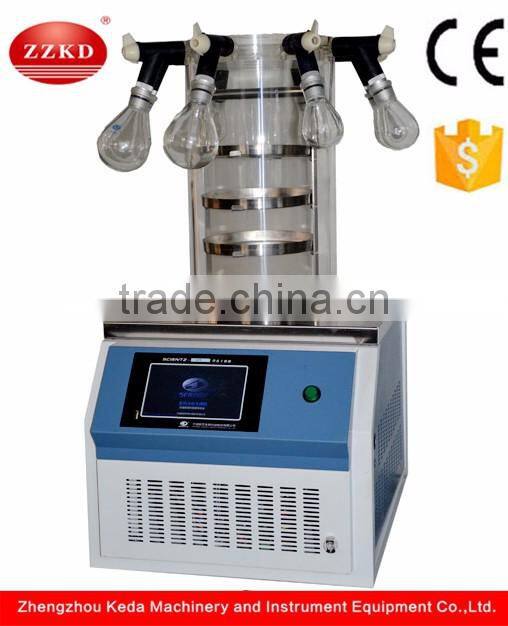

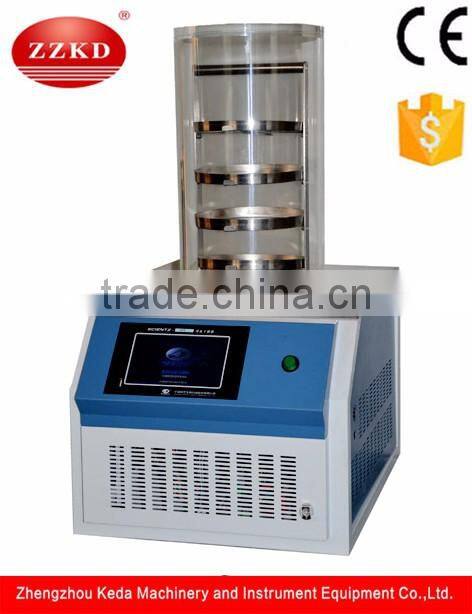

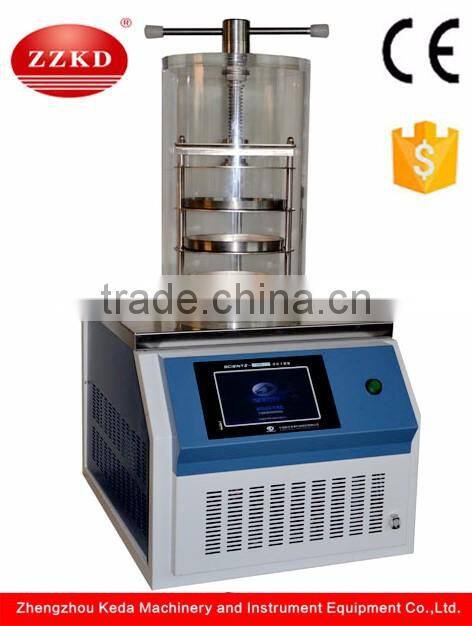

The New Practical Lyophilizer
Characteristics
1. Accord with international standards of Green environmental friendly;
7" True~color Touch Screen, Chinese English Bilingual Interface, display drying curve and history curve;
2. U disk Can storage lyophilized data;
3. Upload software can print curve;
4. Embedded circuit design, 128 M FLASH, can save dozen times Lyophilized data;
5. Large opening trap, no coil inside, with samples pre-freeze function;
6. Imported refrigeration compressor, low noise;
7. Stainless steel sample holder, common sample plate spacing adjustable;
8. Small size and easy to operate.
Technical Data
12ND | Ordinary | Top-Press | Ordinary Multi-Manifolds | Top-Press Multi-Manifolds |
No-load Temperature | <-56℃ | |||
Freeze Area | 0.12 m2 | 0.076 m2 | 0.12 m2 | 0.076 m2 |
Plate Load Capacity | 1.5 L | 1 L | 1.5 L | 1 L |
Ability to Capture Water | 4Kg | |||
Vacuum Degree | <10Pa | |||
Machine Dimension(W*D*H) | 600*460*(730+450) mm | |||
Sample Tray Size | 4×Φ200mm | Ø 3×180 mm | 4×Φ200mm | Ø 3×180 mm |
Power | 950W | |||
Power Supply | 110V/60Hz or 220V/50Hz | |||
interlayer spacing | 70 mm | |||
Cold trap size | Ø215×160 mm | Ø215×216 mm | ||
The number of Schering bottles | Ø22: 260 | Ø22: 165 | Ø22: 260 | Ø22: 165 |
Ø16: 480 | Ø16: 285 | Ø16: 480 | Ø16: 285 | |
Ø12: 920 | Ø12: 560 | Ø12: 920 | Ø12: 560 | |
N.W./ G.W | 120KG/135KG | 125KG/140KG | 135KG/150KG | 140KG/155KG |
We can according to customers' special needs, of course, we also have our own flagship products, as follows
We have the most convenient and efficient transport partners, to ensure that your goods sent to your hands in the shortest time.
1. ZZKD Instruments provides one year warranty for the products described here.
2. The warranty covers part and manufacturing defects. In the case of a part or manufacturing defect, the device shall be repaired or replaced free of charge under the terms of the warranty.
3. Beyond the warranty period, product problems can also be solved by our company, but charge component cost and maintenance cost properly.
4. ZZKD Instruments shall not assume liability for any damages incurred as a result of improper handling.
5. If you encounter problems when using our products, please contact us by telephone or e-mail, we will be ready to provide consulting, maintenance and other services immediately.
zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. established in 1981, is a famous manufacturer of Lab equipment located in the central China.The main products include glass reactor, water circulating vacuum pump, freeze drying machine, rotary evaporator, low temp., cooling liquid circulating pump and so on.
Our company has become a pacesetter of the lab instrument in China. Our products have been exported to the countries such as the UK, Greece, Poland, theUS, Australia, Brazil, South Africa, Ghana, Egypt, Iran, Pakistan, Thailand, India,Singapore, Malaysia and so on earning wide recognition among the users.
Though our foreign trade is not for long, we do have a history of more than 30 years ofour domestic trade. To assure the good quality & good service is our consistent aim.
1. What's the minimum order quantity?
One set at present.
2. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4. How will package glass equipment?
We package these glass equipment in good and non fumigation standard plywood.
5. Can you accept OEM terms?
Sure.
