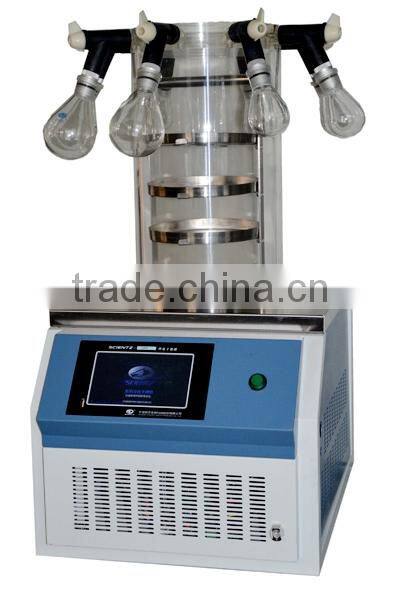

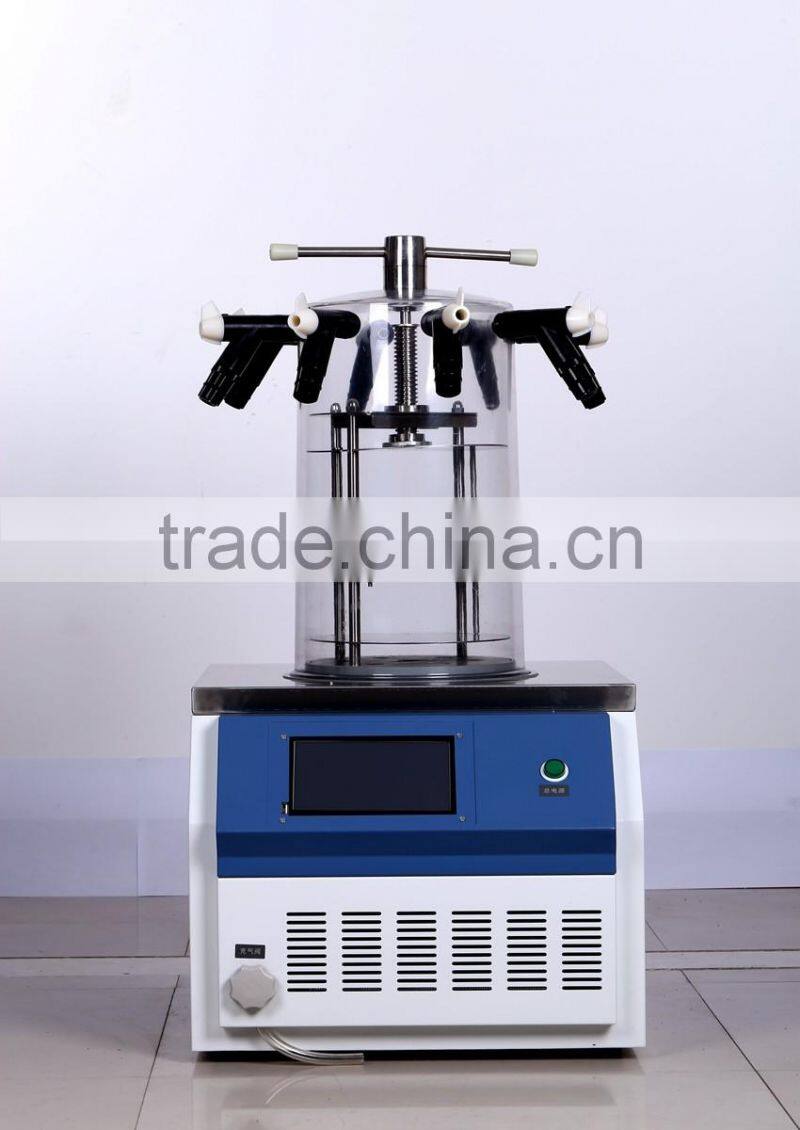

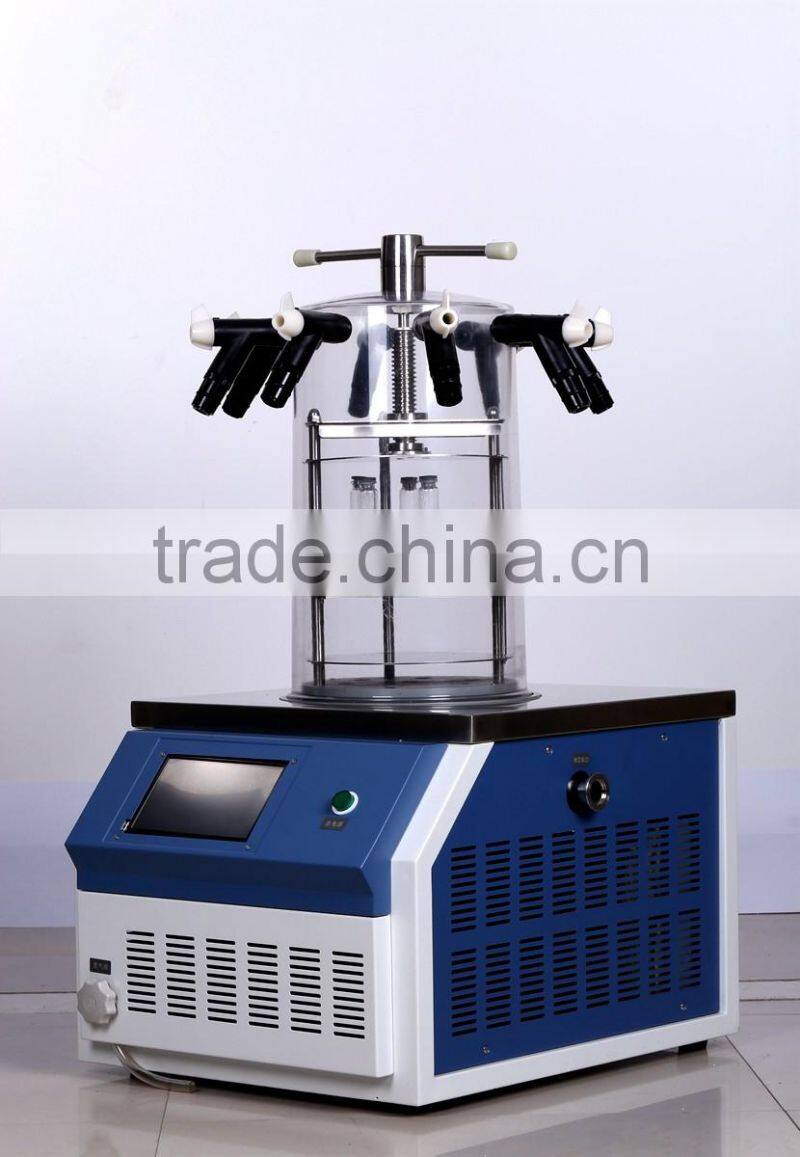

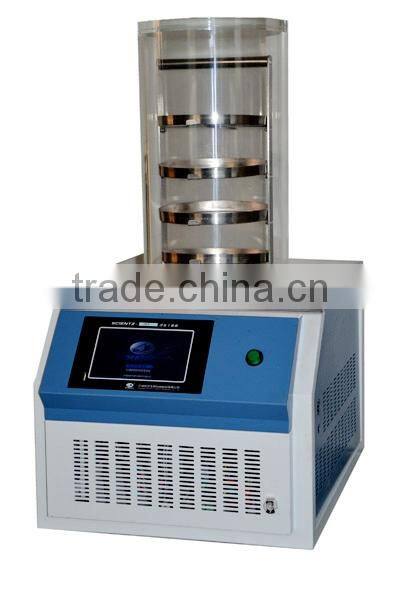

2017 Electric Heating New Vacuum Freeze Dryer
Main features
♦ Microprocessor controls.
♦ Enviroment-friendly, conform to international standard(CE, ISO)
♦ Communication interface and LCD display include drying curve, vacuum, condenser temp, run time, ambinent temperature.
♦ With pre-freezing for samples, widely open condenser, without inner coil .
♦ Large refrigerating capacity and slight noise of Danfoss compressor.
♦ The pre-cooling shelf can be used as draft tube to accelerate drying speed
♦ Condenser and the operation panel are made of 304 stainless steel, which is corrosion-resistant and easy to clean.
♦ Transparent bell-cap drying kiln is safe and easy to observe.
♦ Stainess steel sample shelf, the space among common sample tray can be adjustable.
♦ Novel design, small size and simple operation.
♦ For water based samples, the -55°C condenser is the perfect choice. For samples containing solvents or with low eutectic points, -80°C condenser provides maximum performance.
♦ For labs that need quick turn-around, electric heating defrost is optional .
♦ Nitrogen inflation valve is optional
Specifications
1. Desktop design, compact, taking up a small table.
2. Imported closed compressor, high reliability, low noise.
3. Cold trap made of stainless steel.
4. Patented design draft tube , quick drying.
5. Well inflation valve, rechargeable dry nitrogen or inert gas.
6. Transparent bell drying room, secure and intuitive.
7. Stainless steel sample holder, adjustable sample tray spacing.
8. Combined with a variety of vacuum pumps.
9. Digital display of temperature and vacuum.
10. Sample temperature display (optional).
Technical parameter
10ND | Ordinary | Top-Press | Ordinary Multi-Manifolds | Top-Press Multi-Manifolds |
No-load Temperature (℃) | <-56 | |||
Freeze Area(m2) | 0.12 | 0.076 | 0.12 | 0.076 |
Plate Load Capacity (L) | 1.5 | 1 | 1.5 | 1 |
Ability to Capture Water (Kg) | 3 | |||
Vacuum Degree(Pa) | <10 | |||
Machine Dimension (W*D*H) mm | 450*580*(380+450) | |||
Sample Tray Size (mm) | 4×Φ200 | Ø 3×180 | 4×Φ200 | Ø 3×180 |
Power(w) | 950 | |||
Power Supply | 110V/60Hz or 220V/50Hz | |||
Inter~layer spacing | 70 mm | |||
Cold trap size(mm) | Ø215×160 | |||
The number of Schering bottles | Ø22: 260 | Ø22: 165 | Ø22: 260 | Ø22: 165 |
Ø16: 480 | Ø16: 285 | Ø16: 480 | Ø16: 285 | |
Ø12: 920 | Ø12: 560 | Ø12: 920 | Ø12: 560 | |
N.W./ G.W | 90KG/ 105KG | 95KG/110KG | 105KG/120KG | 110KG/125KG |
Pictures | |
| |
|
Application
♦ For fruit
♦ For flower
♦ For chinese medicine
Our flagship product
Packaging
-Wooden case packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL,TNT,EMS,FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
| Name | 2016 Electric Heating New Vacuum Freeze Dry |
| 1 Unit | It is aways shipped by international express |
| 2-3unit | Aways shipped by air |
| more than 3 unit | It is shipped by sea |
Above shipping way is based on 3 years' feedback from customers. Certainly it also can be choosed by youeself.
zhengzhou Keda Machinery and Instrument Equipment Co., Ltd, established in 1981, is a famous manufacturer of Lab equipment located in the central China.The main products include glass reactor, water circulating vacuum pump, freeze drying machine, rotary evaporator, low temp cooling liquid circulating pump and so on.
Present, we have become a pacesetter of the lab instrument in China.Our products have been exported to the countries such as the UK, Greece, Poland, the US, Australia, Brazil, South Africa, Ghana, Egypt, Iran, Pakistan, Thailand, India, Singapore, Malaysia and so on earning wide recognition among the users.
Though our foreign trade is not for long, we do have a history of more than 30 years ofour domestic trade. To assure the good quality & good service is our consistent aim
Service Promise
1. Products quality guarantee is for one year, after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Technology Service
1. We have a mobile repair service team in our company, to carry out maintenance, consulting services in China for many years.
2. Users encounter problems when using our products, please contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.
1. What's the minimum order quantity?
One set at present.
2. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4. How will package glass equipment?
We package these glass equipment in good and Non fumigation standard wooden case.
5. Can you accept OEM terms?
Sure.
