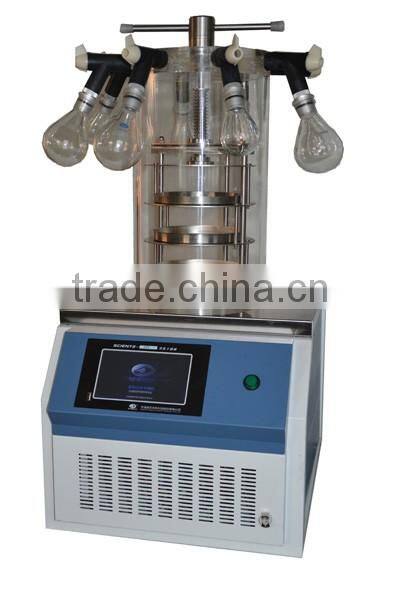

Most Popular Mini Freeze Dryer Machine China Manufacture
♦ Accord with international standards of Green environmental friendly

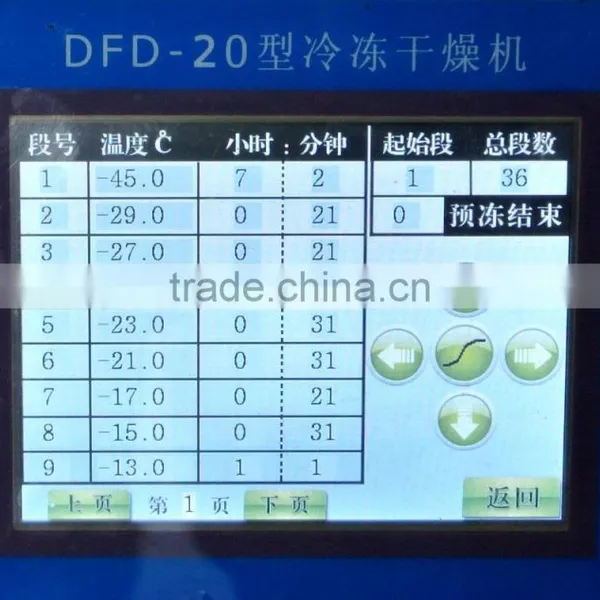

♦ 7" True-color Touch Screen, Chinese English Bilingual Interface, display drying curve and history curve;
♦ U disk Can storage lyophilized data;
♦ Upload software can print curve;
♦ Embedded circuit design, 128 m flash, can save dozen times Lyophilized data;
♦ Large opening trap, no coil inside, with samples pre-freeze function
♦ Imported refrigeration compressor, low noise

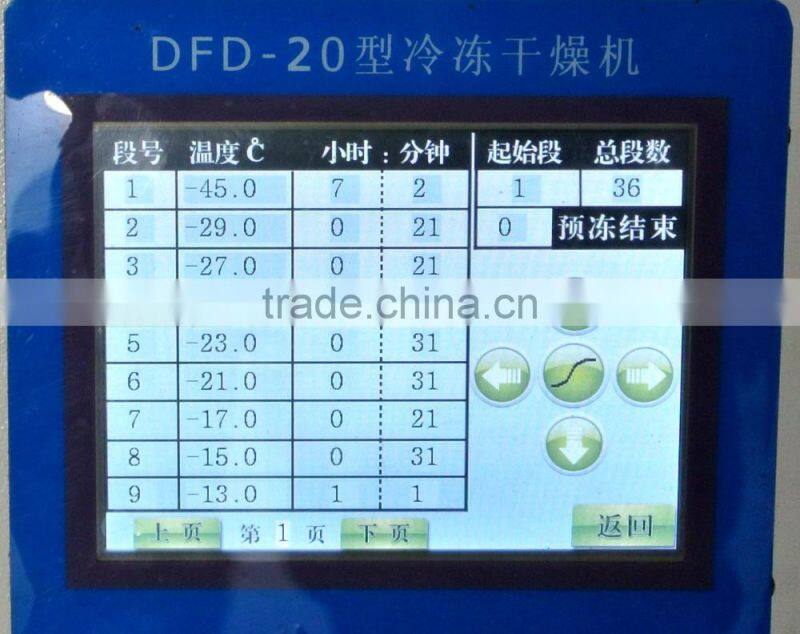

♦ The control system has 36 lyophilized curve program selection, each program contains a 40-stage temperature control settings, enabling lyophilization process parameters record variety of materials, some lyophilized material time direct the transfer of the corresponding program .
♦ The company's unique dot heating temperature curve calculation method, heating is more stable, no overshoot, more accurate temperature control.
♦ The configuration inflation valve, rechargeable dry inert gas.
1. Freeze-drying machine applies a technical method by which moisture-bearing samples frozen in advance become dry in the vacuum owing to vaporizing away the moisture.
2. The samples frozen can be well-storage for a long time and returned to their former state once being watered without losing their original biochemical properties.
3. The freeze drying technology is especially ideal for those bio-products sensitive to antibiotic, vaccines, blood products, enzymesand hormones.
4. This machine is also suitable for sample freezing experimentsin labs and small~scale
production.
5. The Series can be divided into four type: Ordinary, Top-Press, Ordinary Multi-Pipeline, Top-Press Multi-Pipeline, T-Frame with Pre-Freeze Function.
1. The freeze dryer system is designed for laboratory lyophilization procedures.It is CFC free so it will not endanger the environment.The unit is easy to install and maintain.Proper care and maintenance of this produt will result in many years of dependable service.
2. It is suitable for heat-sensitive material such as antibiotics, vaccines, blood products, enzymes hormones and other biological tissue.
3. Freeze dryer is a technical method , which pre-freeze the aqueous items, and then drying by sublimation in vacuum, the frozen item can be kept for long-term storage, and also can restore the original biochemical characteristics after adding water.
Technical parameter
12ND |

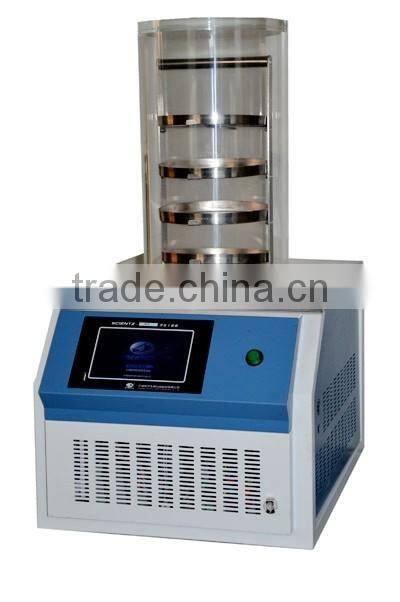

Ordinary |

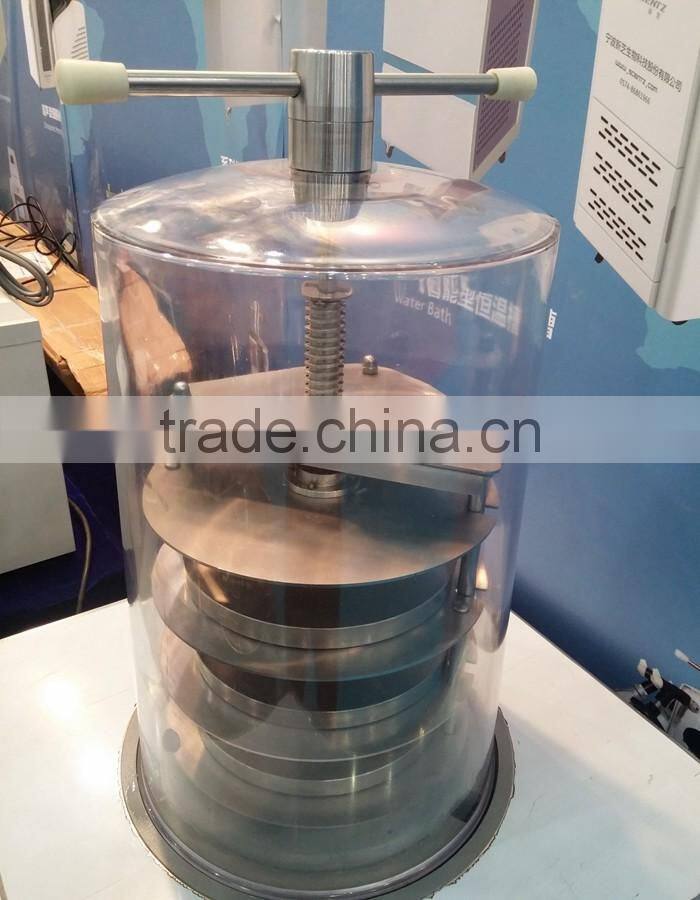

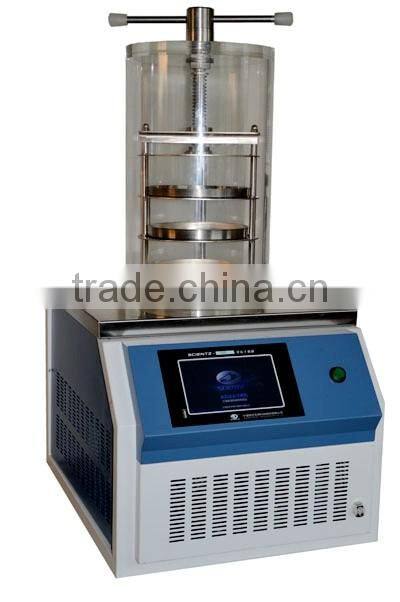

Top-Press |

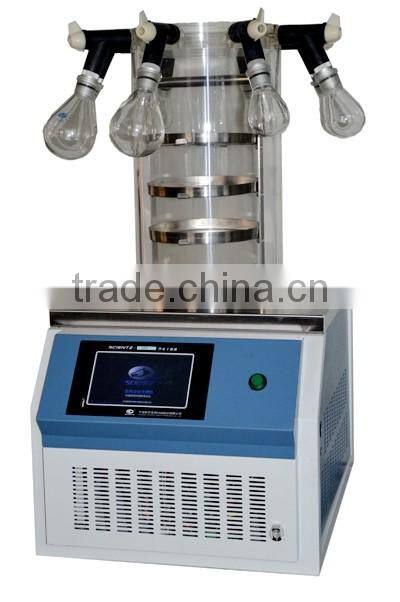

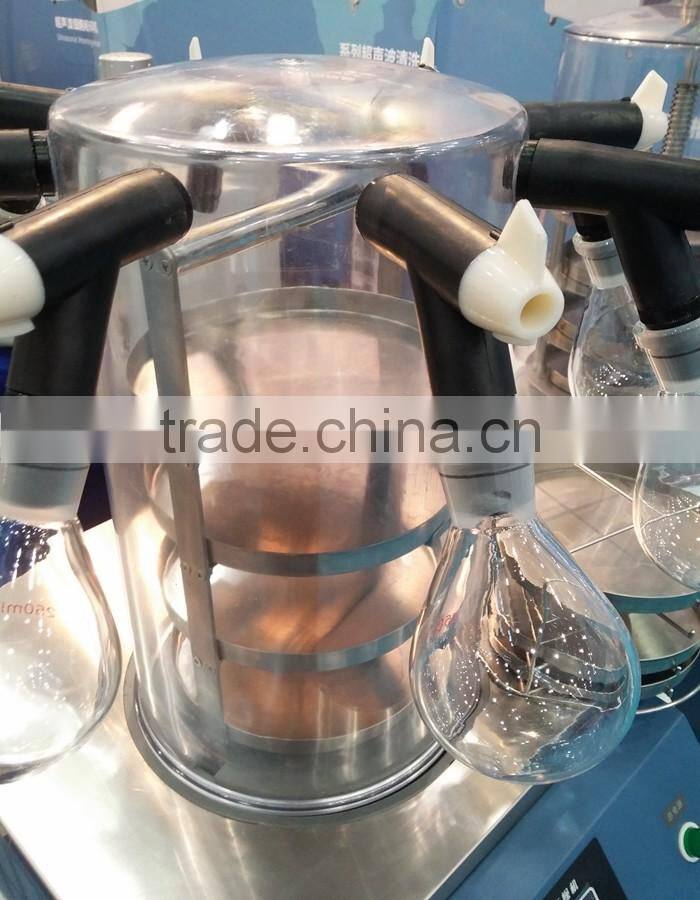

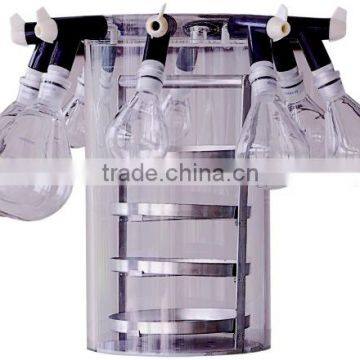

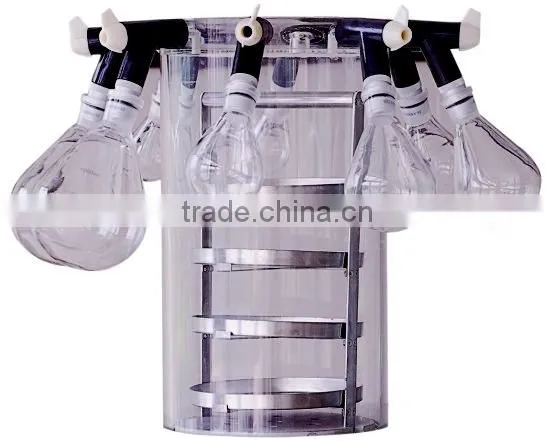

Ordinary Multi-Manifolds |
Top-Press Multi-Manifolds |
No-load Temperature(℃) |
<-56℃ |
|||
Freeze Area |
0.12 m2 |
0.076 m2 |
0.12 m2 |
0.076 m2 |
Plate Load Capacity(L) |
1.5 |
1 |
1.5 |
1 |
Ability to Capture Water(Kg) |
4
|
|||
Vacuum Degree(Pa) |
<10
|
|||
Machine Dimension(W*D*H)mm |
600*460(730+450)
|
|||
Sample Tray Size(mm) |
4×Φ200 |
Ø 3×180 |
4×Φ200 |
Ø 3×180 |
Power(W) |
950
|
|||
Power Supply |
110V/60Hz or 220V/50Hz |
|||
Interlayer spacing(mm) |
70
|
|||

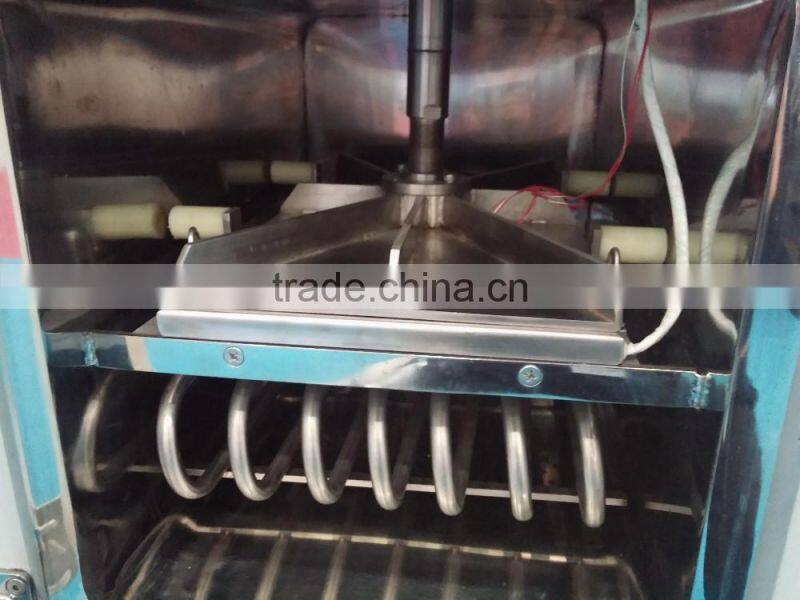

Cold trap size(mm) |
Ø215*160 |
Ø215*216 |
||
|
The number of Schering bottles
|
Ø22: 260 |
Ø22: 165 |
Ø22: 260 |
Ø22: 165 |
Ø16: 480 |
Ø16: 285 |
Ø16: 480 |
Ø16: 285 |
|
Ø12: 920 |
Ø12: 560 |
Ø12: 920 |
Ø12: 560 |
|
N.W./ G.W |
120KG/135KG |
125KG/140KG |
135KG/150KG |
140KG/155KG |
Product details
Packaging
-Wooden case packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
Service promise
1. Products quality guarantee is for one year, after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Technology service
1. We have a mobile repair service team in our company, to carry out maintenance, consulting services in china for many years.
2. Users encounter problems when using our products, please contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.
1. What's the minimum order quantity?
One set at present.
2. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4. How will package glass equipment?
We package these glass equipment in good and non fumigation standard plywood.
5. Can you accept OEM terms?
Sure.
