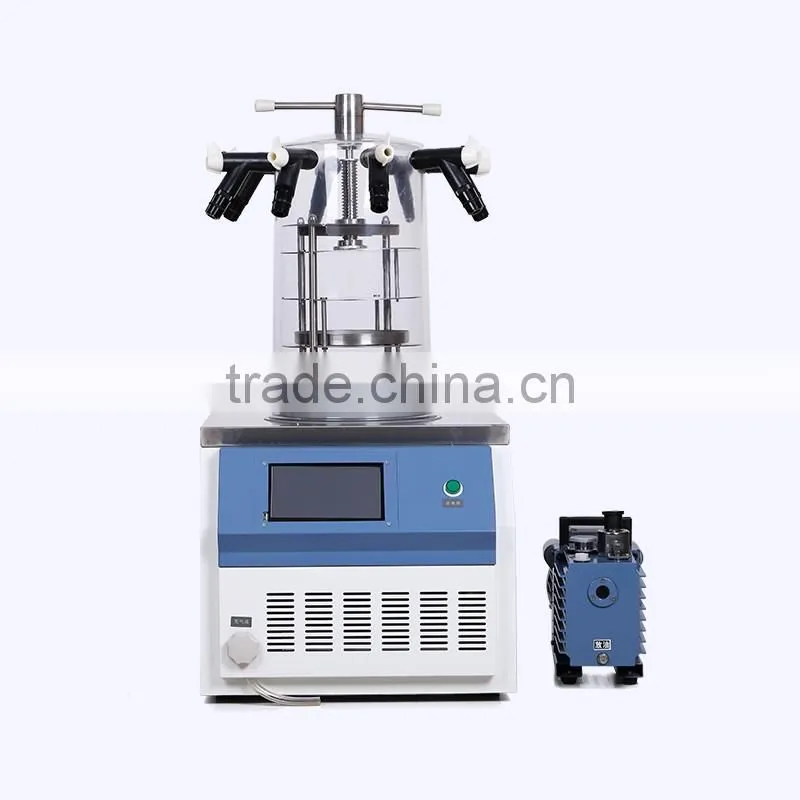

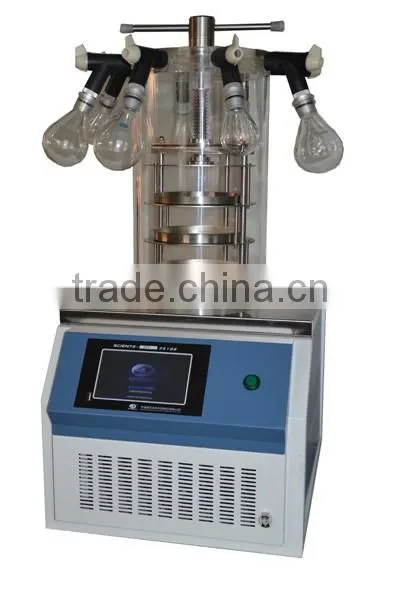

<KD> 3Kg / 24 Hours Bench-top Freeze Dryer in Laboratory
KD-10N freeze dryer is applicable for freeze-drying test of laboratory samples and suitable for samll amount of production.
Features
1. Environment-friendly, conform to international standard (CE/ROHS).
2. Communication interface & LCD dispaly include drying curve, vacuum ondenser temp, run time, and ambient temperature.
3. Large refrigerating capacity and slight noise of Danfoss compressor.
4. Condenser and the operation are made of 304 stainless steel, which is corrosion-resistant and easy to clean.
5. Transparent bell-cap drying kiln is safe and easy to obserbe.
6. Stainless steel sample shelf, the space among common sample tray can be adjusted.
7. Novel design, small size and simple operation.
8. For water based samples. the-55°C condenser is the perfect choice with effective cost. For samples cotaining solvents or with lower eutectic points.

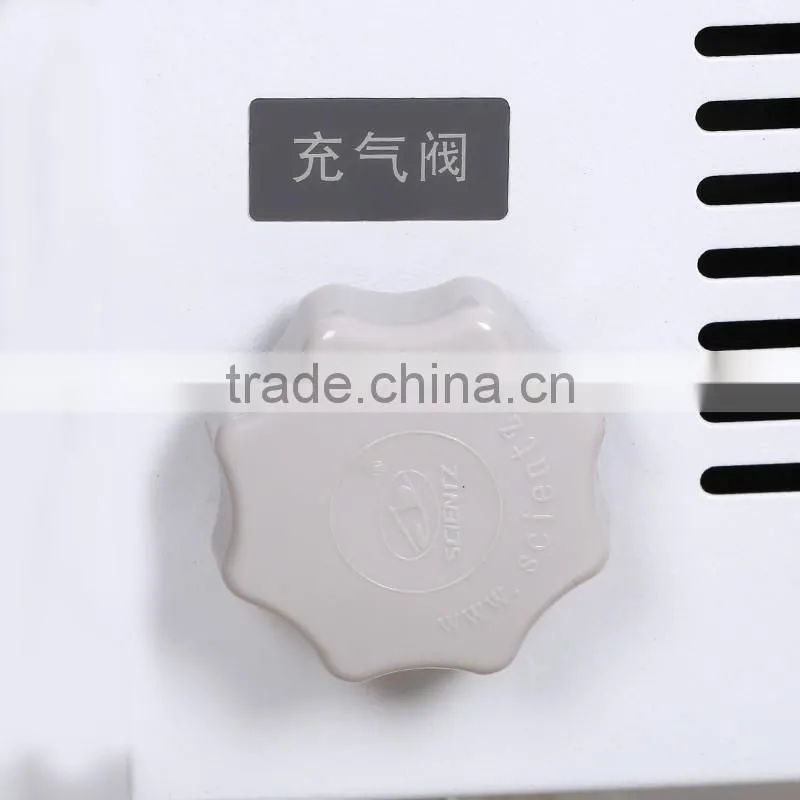

9. Matched with Nitrogen inflation valve.
10. For labs that needs quick turn-around, elctric heating defrost is optional.

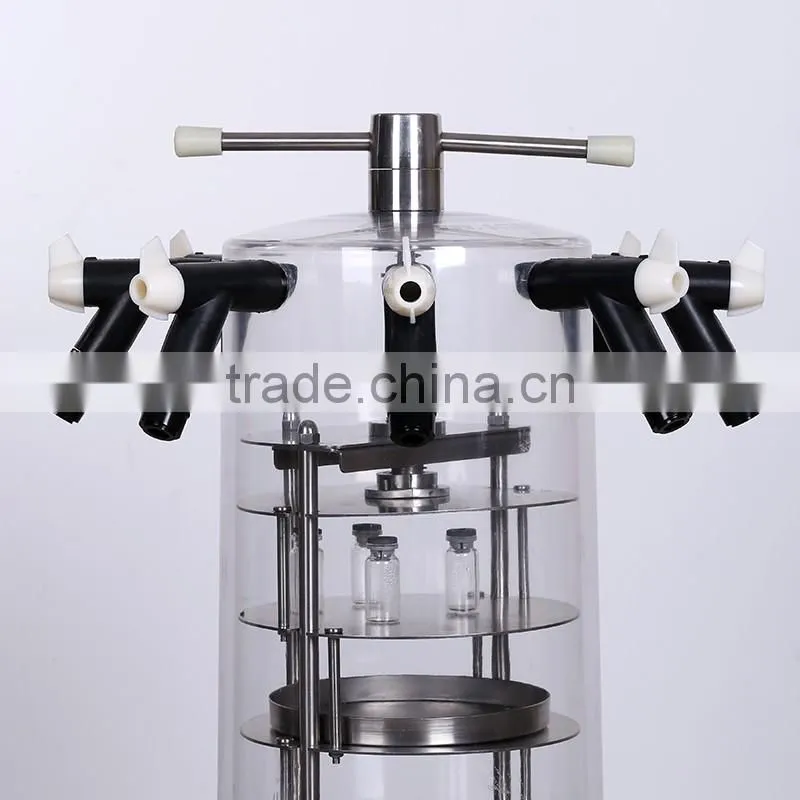

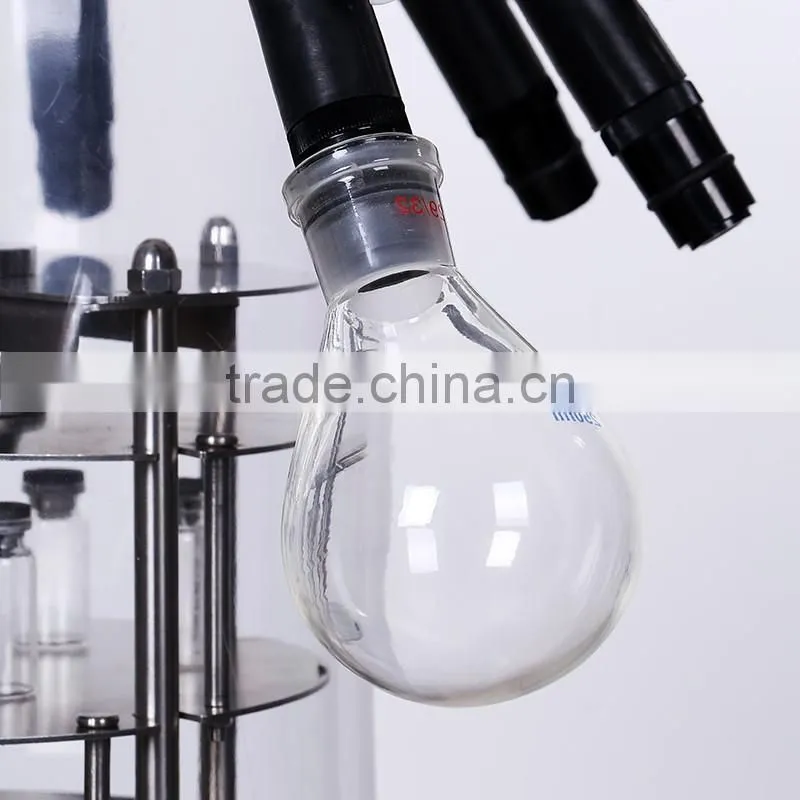

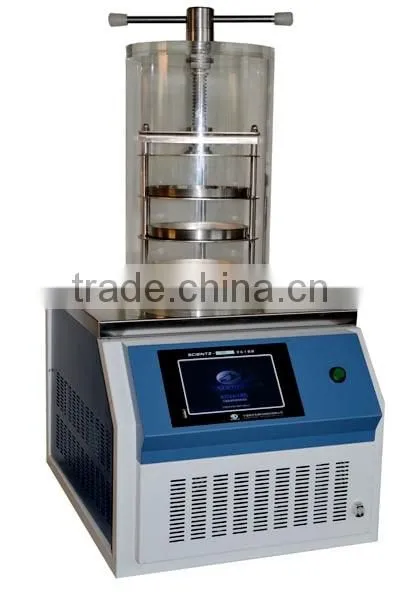

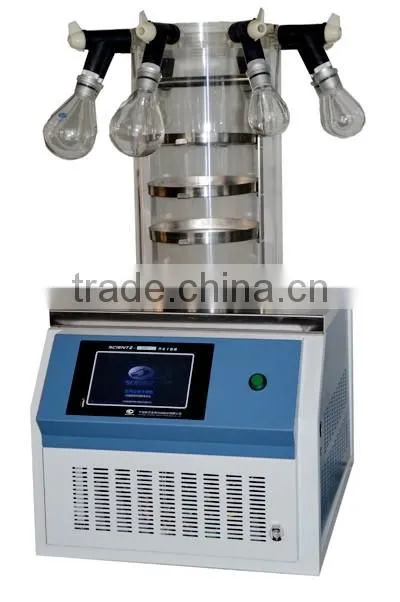

11. It includes the 4 types: Regular type, Multi-manifold type, top-press type, and multi-manifold top-press type.
Technical Data
10N Freeze Dryer | ||||
10N | Ordinary | Top-Press | Ordinary Multi-Manifolds | Top-Press Multi-Manifolds |
No-load Temperature | <-56℃ | |||
Freeze Area(m2) | 0.12 | 0.08 | 0.12 | 0.08 |
Plate Load Capacity(L) | 1.5 | 1 | 1.5 | 1 |
Ability to Capture Water (Kg) | 3 | |||
Vacuum Degree | <10Pa | |||
Machine Dimension (W*H*D)mm | 450*580*(380+450)
| |||
Sample Tray Size(mm) | 4×Φ200 | Ø 3×180 | 4×Φ200 | Ø 3×180 |
Power(w) | 950 | |||
Power Supply | 110V/60HZ or 220V/50HZ | 110V/60HZ or 220V/50HZ | 110V/60HZ or 220V/50HZ | 110V/60HZ or 220V/50HZ |
Interlayer spacing(mm) | 70
| |||
Cold trap size(mm) | Ø215×160 | |||
The number of Schering bottles | Ø22: 260 | Ø22: 165 | Ø22: 260 | Ø22: 165 |
Ø16: 480 | Ø16: 285 | Ø16: 480 | Ø16: 285 | |
Ø12: 920 | Ø12: 560 | Ø12: 920 | Ø12: 560 | |
N.W./ G.W | 80KG/95KG | 85KG/100KG | 95KG/110KG | 100KG/115KG |
Product details
Other models
Packaging
-Wooden packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
Service Promise
1. Products quality guarantee is for one year, after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Technology Service
1. We have a mobile repair service team in our company , to carry out maintenance , consulting services in China for many years.
2. Users encounter problems when using our products , please contact us by telephone or email,we will be ready to provide consulting, maintenance and other services immediately.

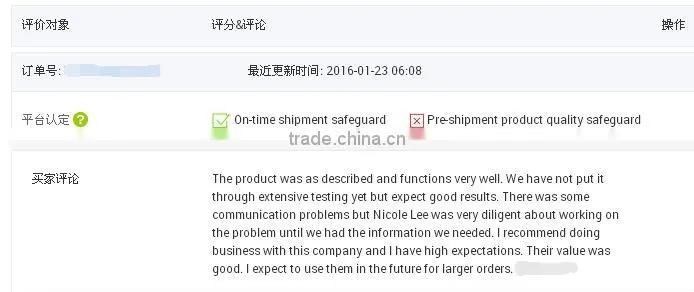

Customer evaluation
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd. is specialized in R & D, production, sales, teaching and chemical biology pharmacy equipment integrated company.Company tenet: keeping reputation, valuing contracts, supplying lower prices and better quality equipments to serve the cause of China's scientific research.
Our company always adheres to the "quality casting brand, professional achieves service" business philosophy, and the main product is rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cooling chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath, magnetic heating stirrer,hydrothermal synthesis reactor, heating mantle, lift platform, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high prais in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc.
The quality of the products, also full affirmation and praise by our domestic and foreign customers.
Business Type: Manufacturer, Trading Company;
Location: Henan, China (Mainland);
Year Established: 2009;
Total Revenue : US$1 Million - US$2.5 Million;
Registration No: 410105000067362;
Main Markets: Central America, Mid East, Oceania, Africa, South America and so on.
1.What's the minimum order quantity?
One set at present.
2.What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4.How will package glass equipment?
We package these glass equipment in good and Non fumigation standard wooden case.
5.Can you accept OEM terms?
Sure.
