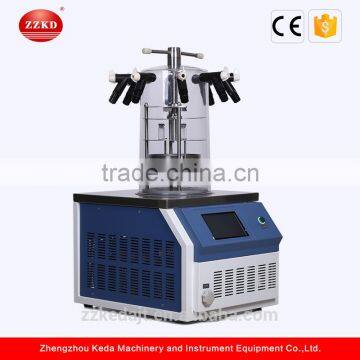

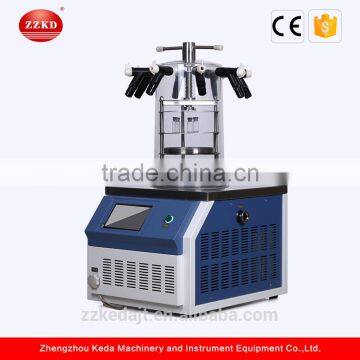

(KD) Manifold Freeze Dryer Lyophilizer With 8 Eggplant Shape Bottle
Features
1)Microprocessor controls
2)Enviroment-friendly, conform to international standard(CE, ISO)
3)Communication interface and LCD display include drying curve, vacuum, condenser temp.., run time, ambinent temperature
4) With pre-freezing for samples, widely open condenser, without inner coil
5) Large refrigerating capacity and slight noise of Danfoss compressor
6) The pre-cooling shelf can be used as draft tube to accelerate drying speed
7) Condenser and the operation panel are made of 304 stainless steel, which is corrosion-resistant and easy to clean.
8) Transparent bell-cap drying kiln is safe and easy to observe
9) Stainess steel sample shelf, the space among common sample tray can be adjustable
10) Novel design, small size and simple operation
11) For water based samples, the -55°C condenser is the perfect choice. For samples containing solvents or with low eutectic points, -80°C condenser provides maximum performance
12) For labs that need quick turn-around, electric heating defrost is optional
13) Nitrogen inflation valve is optional
Technical Data
10N Freeze Dryer | ||||
10N | Ordinary | Top-Press | Ordinary Multi-Manifolds | Top-Press Multi-Manifolds |
No-load Temperature | <-56℃ | |||
Freeze Area(sq.m.) | 0.12 | 0.08 | 0.12 | 0.08 |
Plate Load Capacity | 1.5 L | 1 L | 1.5 L | 1 L |
Ability to Capture Water | 3Kg | |||
Vacuum Degree | <10Pa | |||
Machine Dimension (W*H*D)mm | 450*580*(380+450)
| |||
Sample Tray Size(mm) | 4*Φ200 | Ø 3*180 | 4*Φ200 | Ø 3*180 |
Power(w) | 950 | |||
Power Supply | 110V/60HZ or 220V/50HZ
| |||
Interlayer spacing(mm) | 70 mm
| |||
Cold trap size(mm) | Ø215×160 | |||
The number of Schering bottles | Ø22: 260 | Ø22: 165 | Ø22: 260 | Ø22: 165 |
Ø16: 480 | Ø16: 285 | Ø16: 480 | Ø16: 285 | |
Ø12: 920 | Ø12: 560 | Ø12: 920 | Ø12: 560 | |
N.W./ G.W | 80KG/95KG | 85KG/100KG | 95KG/110KG | 100KG/115KG |
Freeze Sample
Our product
Company information
Zhengzhou KEDA Company is a professional Lab instrument company. Our company mainly produces Rotary Evaporator, Vacuum Oven, Glass Reactor, Pressure Reactor. At the same time we also engage in other Lab instrument. Trying best to supply high quality and competive price products for customers from world.
