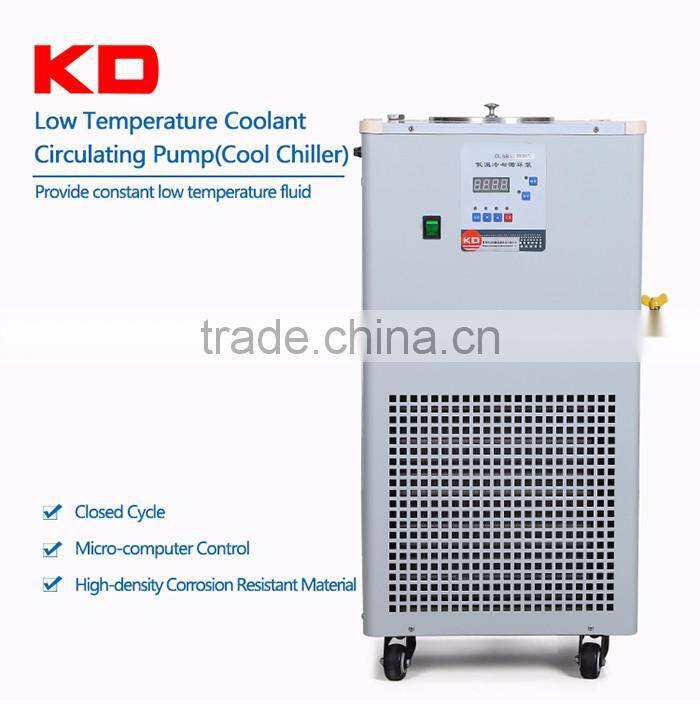

Big Capacity Low Temperature Coolant Pump

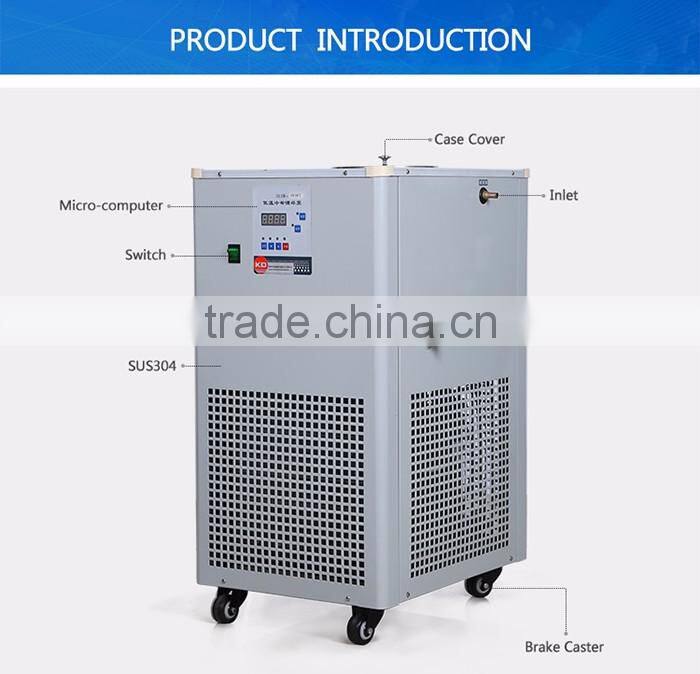

Product Description
Brief Introduction:

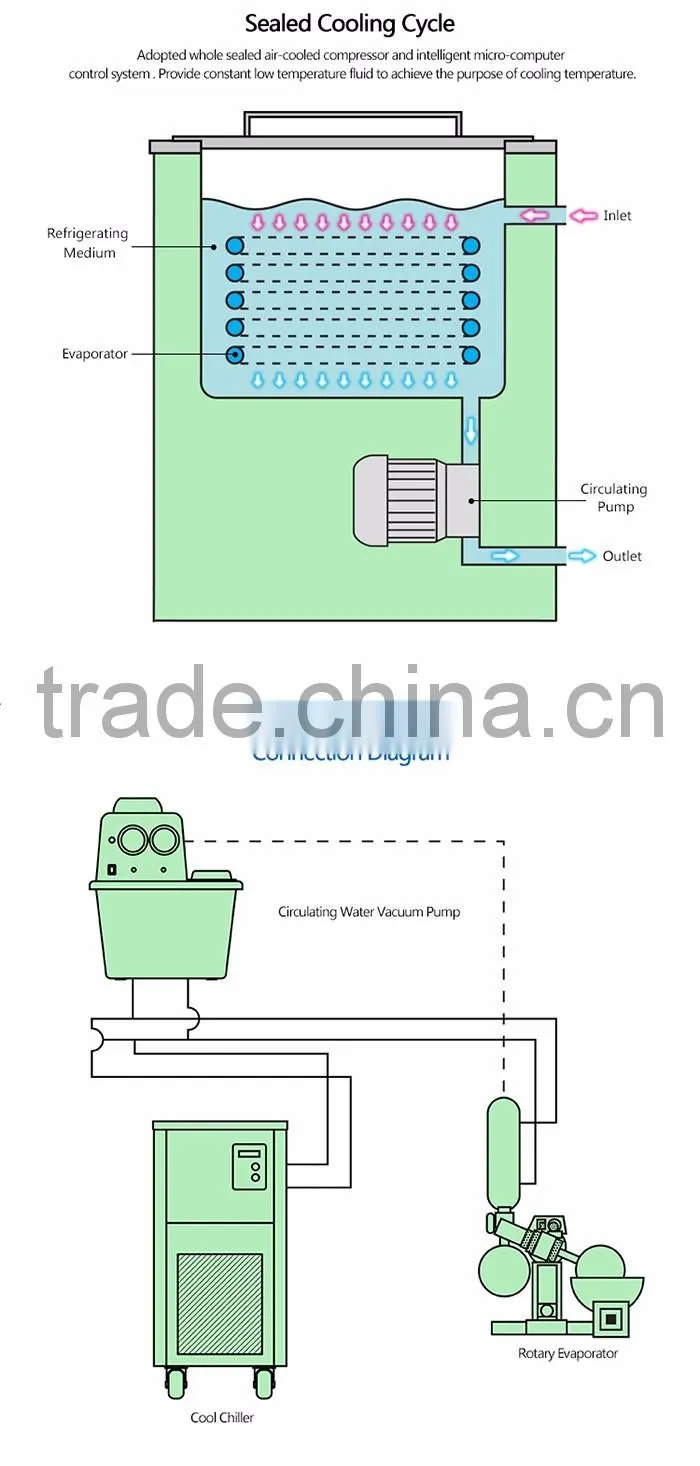

Refrigerated circulators adopt mechanical refrigeration, the main function is to provide low temperature liquid for rotary evaporator, glass reactor and so on to achieve the chemical reaction under low temperature condition.It is particularly suitable for the chemistry, biology, food industry, metallurgical industry, scientific research, genetic engineering, polymer engineering when need to maintain low temperature.
Product Features:
1. Air-cooled and hermetically sealed compressor units (import) with dependable quality;
2. The dedicated and high-quality relays, protective devices and capacitors of the refrigerating units;
3. Digital Read Out of temperature and microprocessor controller for temperature, simple and easier to see;

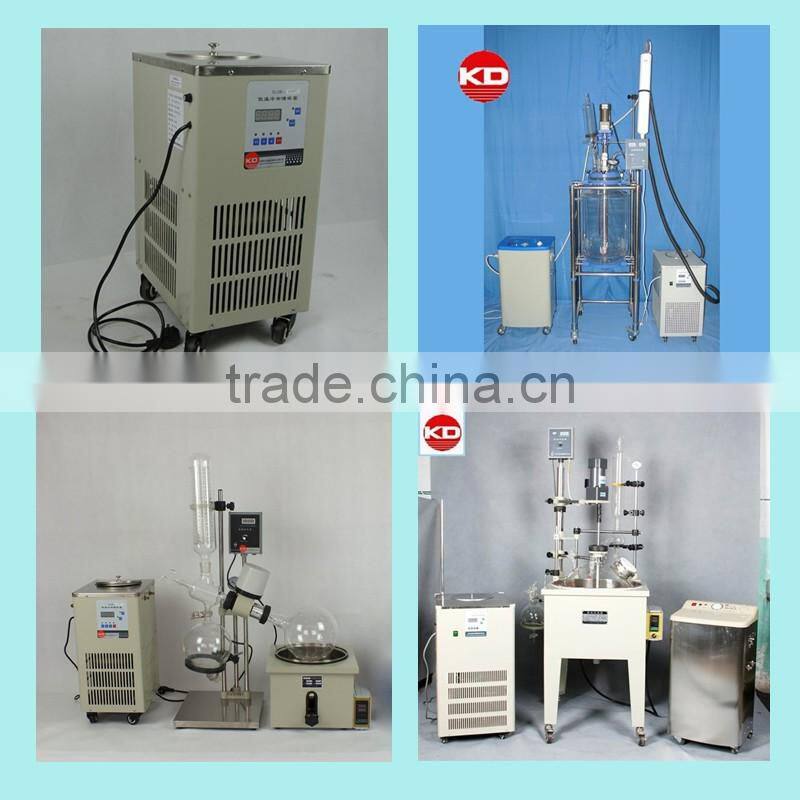

4. It can be matched with a variety of instruments (rotary evaporators, fermentation tanks, chemical reactors, freeze-drying equipments, pharmaceutical reactors, etc.);
5. Bigger cooling capacity and faster cooling speed, which have greatly improved the working efficiency;
6. It can effectively ensure the normal use of all kinds of precision instruments under the working conditions such as lacking water, the poor quality,pressure and temperature of water, and high temperature;
7. The flow of circulating pump can be either adjusted or customized, which has greatly met the actual needs of different customers;
8. All models of this machine can be matched reasonably between the low temperature and the cooling capacity or capacity basing on the requirements of customers.
◊ Original full closed compressor unit, circulating pump of international famous manufacturer, advanced performance, reliable quality.
◊ Refrigeration unit special relay, protection, capacitor, refrigeration parts, are imported high-quality original device;

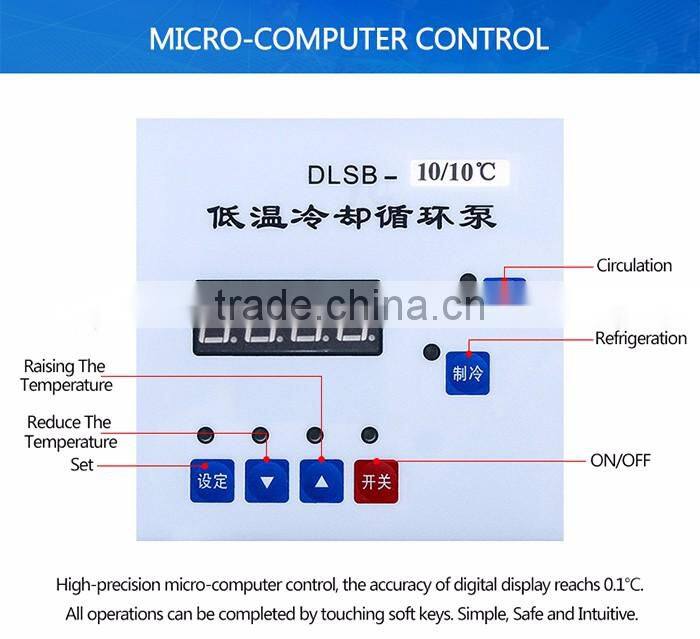

◊ Digital temperature display, microcomputer temperature controller, simple operation, eye-catching.

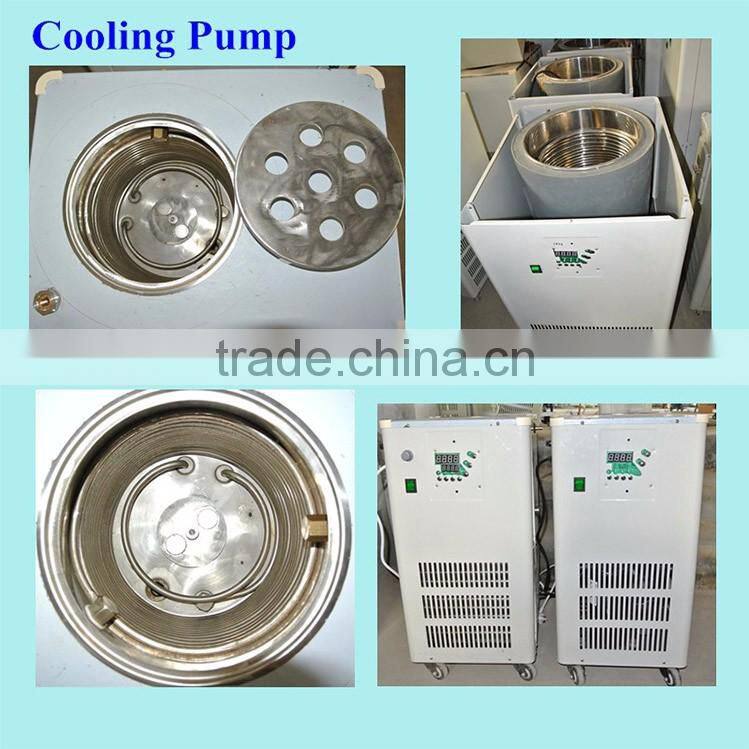

◊ Circulation system uses anticorrosive material, have rust and corrosion resistant; have the function to reduce liquid pollution.
◊ With an electric stirrer in the machine and be stirred directly.

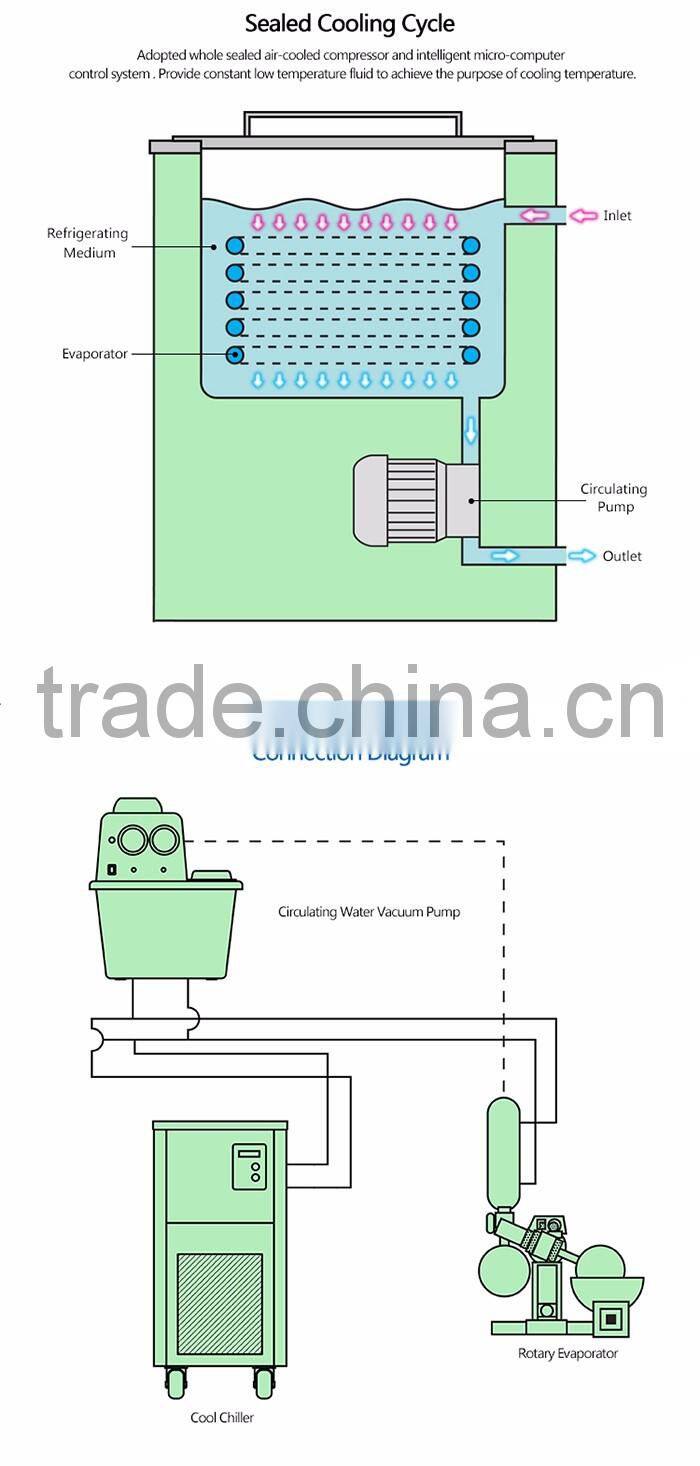

◊ (40)-(60) °C, under the condition of the experiment, the cooling liquid can be transported to the use of place; there is a circulating pump inside.

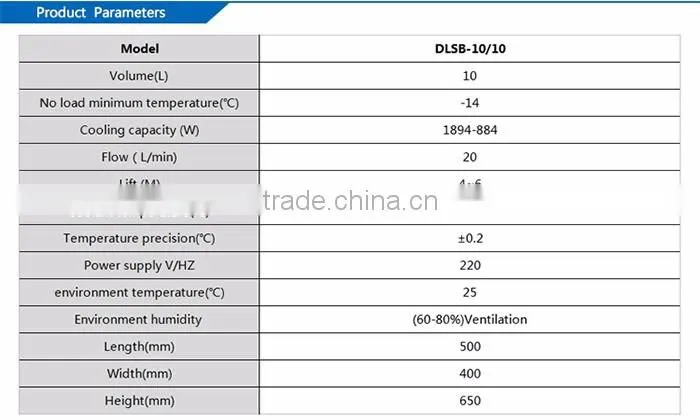

Technical Parameters:
Various Types of Cool Chiller
According to the volume of cryogenic cooling bath circulation pump divided into : 5L,10L,20L,30L,40L,50L,60L,80L,100L.
Each volume according to the lowest temperature can divide into : -10℃,-20℃,-25℃ ,-30℃,-40℃,-60℃, -80℃,-120℃.
Model | DLSB-10/10 | DLSB-10/20 | DLSB-10/25 | DLSB-10/30 | DLSB-10/40 | DLSB-10/60 | DLSB-10/80 | DLSB-10/120 | ||||||
Refrigerant Performance
| Volume | 10L | ||||||||||||
No Load Min. Temp. (℃) | -14 | -23 | -28 | -32 | -42 | -62 | -82 | -122 | ||||||
Cooling Capacity (W) | 1894-884 | 2733-813 | 3256-990 | 2036-1022 | 2628-748 | 3679-510 | 3679-160 | 4997-120 | ||||||
Circulating Performance
| Flow | 20L/min | ||||||||||||
Lift | 4-6m | |||||||||||||
Temperature Control Performance
| Coolant Temp. (℃) | -10 | -20 | -25 | -30 | -40 | -60 | -80 | -120 | |||||
Temp. Precision (℃) | ±0.2 | |||||||||||||
Working Condition
| Power Supply (V) | 220 | 220 | 220 | 220 | 220 | 220/380 | 220/380 | 380 | |||||
Environment Temp (℃) | 25 | |||||||||||||
Environment Humidity | (60-80%) Ventilation | |||||||||||||
Machine Dimensions
| Length (mm) | 500 | 550 | 550 | 580 | 580 | 730 | 880 | 900 | |||||
Width (mm) | 400 | 420 | 420 | 450 | 450 | 660 | 670 | 700 | ||||||
Height(mm) | 650 | 680 | 680 | 680 | 680 | 880 | 900 | 900 | ||||||
Please read it carefully before using the instrument:
1. The machine's power standard is 220 v, should be equipped with reasonable grounding system and the safety of the standard three pole socket.
2. Before use, please put into the liquid medium (water, alcohol, antifreeze can also be), medium level should not lower than cold tube and 20 mm below the workbench is advisable. Don't let sand , acid-base class material or debris into the cooling system or the circulation pump, to prevent clogging or corrosion liner and coil.
3. Recurring observe the slot liquid level height, when the liquid level is too low, should be timely to add liquid medium.
4. When pump working temperature is lower, should pay attention not to open the cover. Never put your hand into the groove, to prevent frostbite.
5. The Pump working environment, temperature ≤ 25 ° C , humidity ≥ 60 ℃, no obstacles in the instrument around 300 mm. Indoor open flame is strictly prohibited.
6. When the liquid outer loop, the client shall pay special attention to the robustness of the out pipe joint, fight off, in order to avoid liquid leakage.
7. After use, all switch should be closed and cut off power supply.
8. The instrument should be regular cleaning, if the pump unused for a long time, you should put out the medium, and deep clean, maintain a clean and tidy work in mesa and the operation panel.
9. Don't try to open and repair equipment personal, any question, just make a call !
Applications:
Shipment Safe and Efficient
Packaging details: In WOODEN CASE, CARTON BOX or as your customized.
Shipping: Shipped by express,sea and air.The most suitable one could be chosen according to your budget and timeline.
Delivery detail: Within 3-7 working days after payment.
Technology Service
1. Pre-service
24 Hours online service for your consult.
Help choose right model,and a series of service,person,advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4. Good Packaging
All products are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
Tel: +86-371-53780197
Fax: +86-371-60920178
/
http://zzkedajt.en.china.cn/
1 . How can I choose a reasonable model from so many models ?
We can supply temperature range from - 10 to -120 Celsius degree; Capacity from 5L-100L.
2. OEM is ok?
Yes, we can do artwork including printing, logo etc. for you if you provide us the content and tell us where to put.
3. My location voltage is 110V, how can we handle this ?
Don’t worry! You can equipped with a voltage regulator, or we can customized 110V for you.
4. What’s the transportation mode you can choose?
◊ For small orders, we will send the goods by International Express like FedEx, DHL, TNT or UPS. Usually it takes 3-7 work days to arrive.
◊ If big quantity we will ship by ocean transportation, it takes one month to arrive.
◊ If urgent, you can select shipping by air, but freight charge will be more expensive than sea transportation.
Any inquiry is warmly welcomed!
