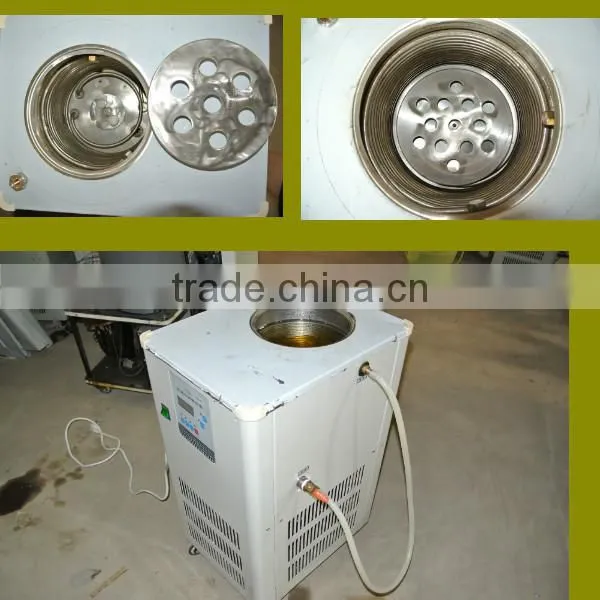

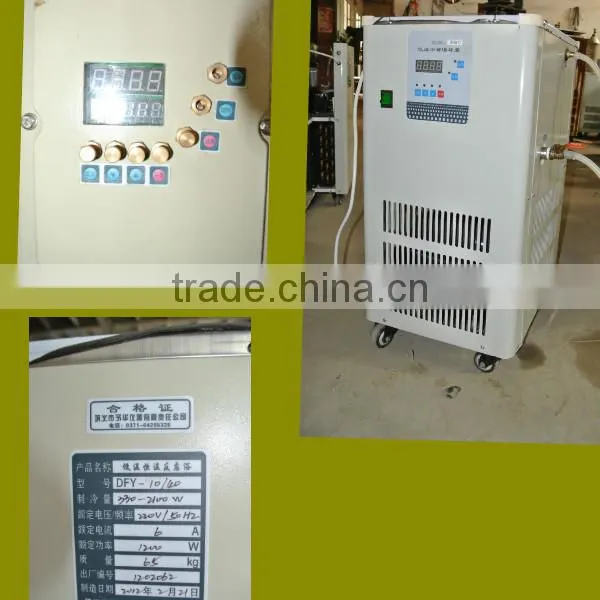

Hot Seller DFY Series Laboratory Thermostat Controlled Water Baths
Detailed description: laboratory thermostat controlled water baths
Cryostat reaction bath (tank) is a company with reference to the similar products of physics and chemistry equipment to improve manufacturing a new type of experimental apparatus. It applies to scientific research, biology, physics, medicine, chemical and other departments to carry out low temperature experiments.
Specifications: laboratory thermostat controlled water baths
(1)It can replace dry ice and the liquid nitrogen to make low temperature and provide low temperature condition for the related equipments.
(2)At the bottom, installation of magnetic stirring, mixing in two segments, so that the temperature of the stainless steel tank can be more even and improve the accuracy of temperature control.
Specific configuration:
1. Compressor: Danfoss original
2. Oil separator with the Danfoss original
3. Ternary compound cascade refrigeration.
4. Has high and low pressure control.
5. Refrigerant using R50D, R13, R14.
6.Controller of the company consciously developed the microcomputer controller, delay protection function.
7. Use the balance of heat and cold legal system, so that the temperature accuracy of±0.2°C.
8. Shell with high-quality cold rolled plate, electrostatic spray.
Technical parameters
Specification |
Storage volume(L) |
Adjustable range for zero load (°C) |
Temperature fluctuation degree(°C) |
Refrigerating capacity(W) |
Circulating pump flow(L/min) |
Practical opening diameter(mm) |
DFY-5/10 |
5 |
-10-98 |
±0.1 |
1248-319 |
20 |
Φ 285 |
DFY-5/20 |
5 |
-20-98 |
1248-319 |
|||
DFY-5/25 |
5 |
-25-98 |
1814-447 |
|||
DFY-5/30 |
5 |
-30-98 |
2653-627 |
|||
|
DFY-5/40
|
5 |
-40-98 |
1956-602 |
|||
DFY-5/60 |
5 |
-60-98 |
1956-330 |
|||
DFY-5/80 |
5 |
-80-98 |
1956-180 |
|||
DFY-5/120 |
5 |
-120-98 |
3808-160 |
NOTE : 10L/20L/30L/40L/50L/80L/100L are available
Detail is the witness of the quality
.
| Packaging Detail: | In wooden case or as your customized |
| Delivery Detail: | 3-7 work days after payment |
