Better Design Cooling System Vacuum Pump
- 630 Set / Sets per Month
- Shanghai Tianjin Dalian
- T/T Credit Card PayPal
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Henan, China | Brand Name: | ZZKD | Model Number: | DLSB-10L |
Theory: | Vacuum Pump | Structure: | Gear Pump | Usage: | Other, supply cold medium quality |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, Electric |
Pressure: | High Pressure | Application: | Metering |
Product Description
Better Design Cooling System Vacuum Pump
Brief introduction

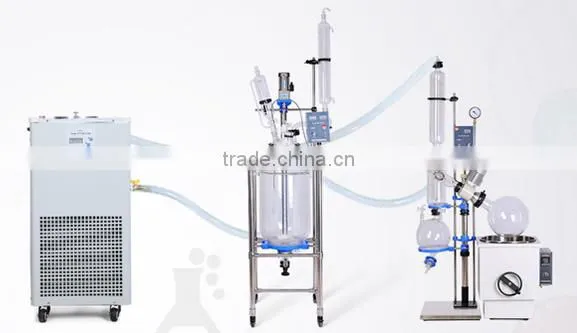

Low-temperature circulating pump also know as low temperature cooling water / liquid circulation pump. This device adopt mechanical refrigeration cryogenic liquid cycle equipment, the main function is provide low temperature liquid, low temperature water bath. It can also connect with rotary evaporator, vacuum freeze drying oven, cycle water vacuum pump, magnetic stirrer and so on, to achieve the chemical reaction or drug store under low temperature condition. We can also be customized large-capacity according to the needs of users.
Features
♦ Air-cooled hermetic imported compressor group, reliable quality.
♦ Exclusive and high quality of relays, protectors, and capacitors.
♦ Microprocessor controller, displays clear, simple operation.
♦ It is a good ancillary equipment of various instruments, such as rotary evaporators, glass reactors, freeze drying equipment, drugs reactors, etc.
♦ Large cooling capacity, cooling speed, and greatly improve working efficiency.
♦ Under the condition of poor water quality, water pressure, water temperatures and high temperature, our machine can effectively protect all kinds of precision equipment for normal use.
♦ Circulation pump flow can be adjusted or customized to meet the practical needs of different customers.
♦ All models of the machine temperature and cooling capacity can be customized according to the customer's actual needs, to meet the different experimental match.
Technical parameter
Model | DLSB-10/10 | DLSB-10/20 | DLSB-10/25 | DLSB-10/30 | DLSB-10/40 | DLSB-10/60 | DLSB-10/80 | DLSB-10/120 | |
Refrigerant Performance | Volume | 10L | |||||||
No Load Min. Temp. (℃) | -14 | -23 | -28 | -32 | -42 | -62 | -82 | -122 | |
Cooling Capacity (W) | 1894-884 | 2733-813 | 3256-990 | 2036-1022 | 2628-748 | 3679-510 | 3679-160 | 4997-120 | |
Circulating Performance | Flow(L/min) | 20 | |||||||
Lift(m) | 4-6m | ||||||||
Temperature Control Performance | Coolant Temp. (℃) | -10 | -20 | -25 | -30 | -40 | -60 | -80 | -120 |
Temp. Precision (℃) | ±0.2 | ||||||||
Working Condition | Power Supply | 220V/50Hz | 220V/50Hz 380V/50Hz | 380V/50Hz | |||||
Environment Temp (℃) | 25 | ||||||||
Environment Humidity | (60-80%) Ventilation | ||||||||
Machine Dimensions | Length (mm) | 500 | 550 | 550 | 580 | 580 | 730 | 880 | 900 |
Width (mm) | 400 | 420 | 420 | 450 | 450 | 660 | 670 | 700 | |
Height (mm) | 650 | 680 | 680 | 680 | 680 | 880 | 900 | 900 |
Product details
Application:
Packaging
-Plywood or carton packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
1. Pre-service
24 Hours online service for your consult.
Help choose right model and a series of service, person advise.
2. Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request
--Choose payment term you convienent.
--Promptly production and delivery, inform you in time.
--Can provide invoice value as you like to decrease your tax.
3. After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
4. Good Packaging
All products are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
5. CE Certification
zhengzhou keda Machinery and Instrument Equipment Co., Ltd, established in 1981, is a famous manufacturer of Lab equipment located in the central China. We specialized in rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), low temperature cooling fluid circulating pump(cool chiller), vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer(lyophilizer), water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift table and so on.
1 . How can I choose a reasonable model from so many models ?
We can supply temperature range from - 10 to -120 Celsius degree; Capacity from 5L-100L.
2. OEM is ok?
Yes, we can do artwork including printing, logo etc. for you, if you provide us the content and tell us where to put.
3. My location voltage is 110V, how can we handle this ?
Don’t worry! you can equipped with a voltage regulator or we can customized 110V for you (quantity exceed 10 sets ).
4. What’s the transportation mode you can choose?
For small orders, we will send the goods by International Express like Fedex, DHL, TNT or UPS. Usually it takes 3-7 working days to arrive. If big quantity we will ship by ocean transportation,
it takes one month to arrive.Iff urgent, you can select shipping by Air, but freight charge will be more expensive than sea transporation.
