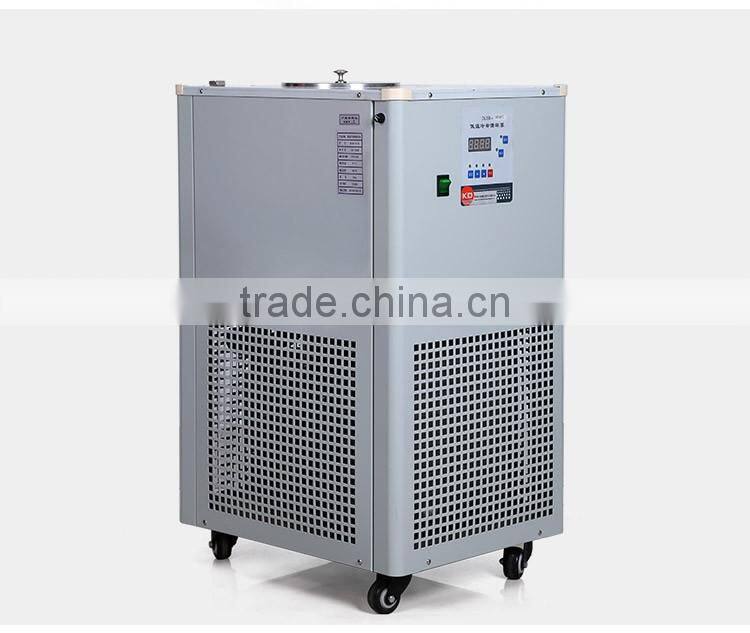

Laboratory Machine Coolant PumpBrief introduction

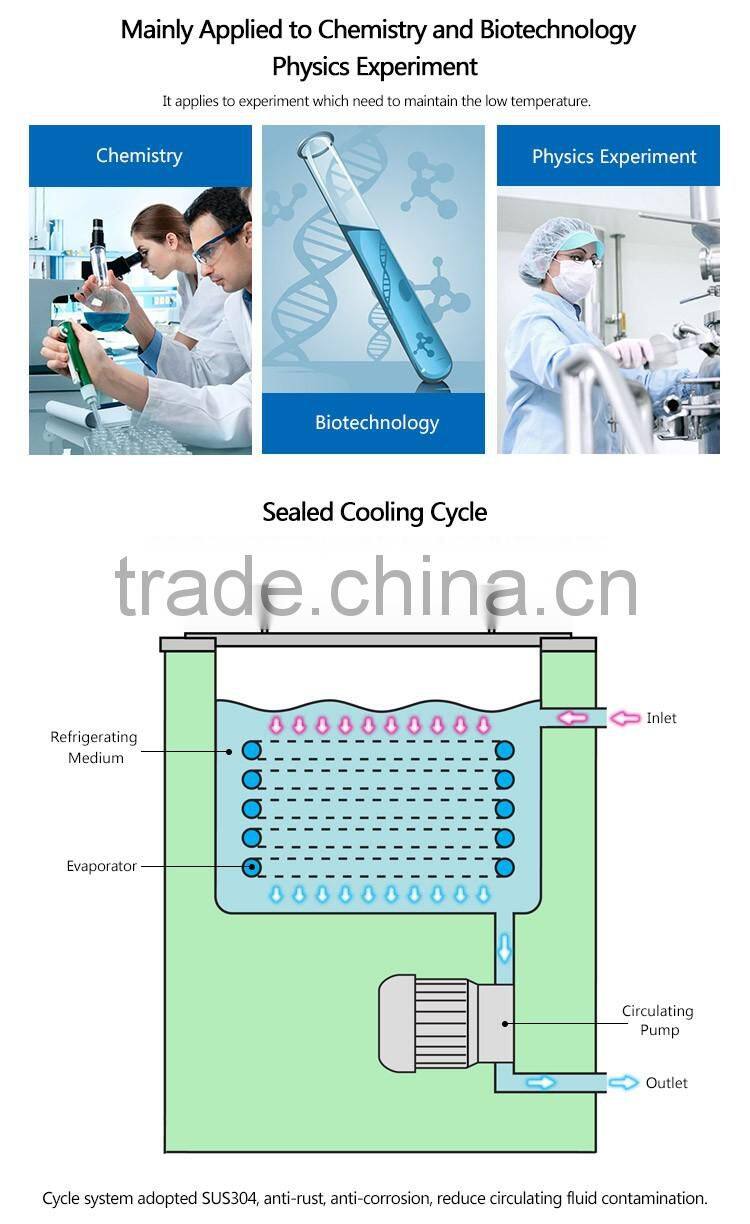

Laboratory machine coolant pump is also know as low temperature cooling water / liquid

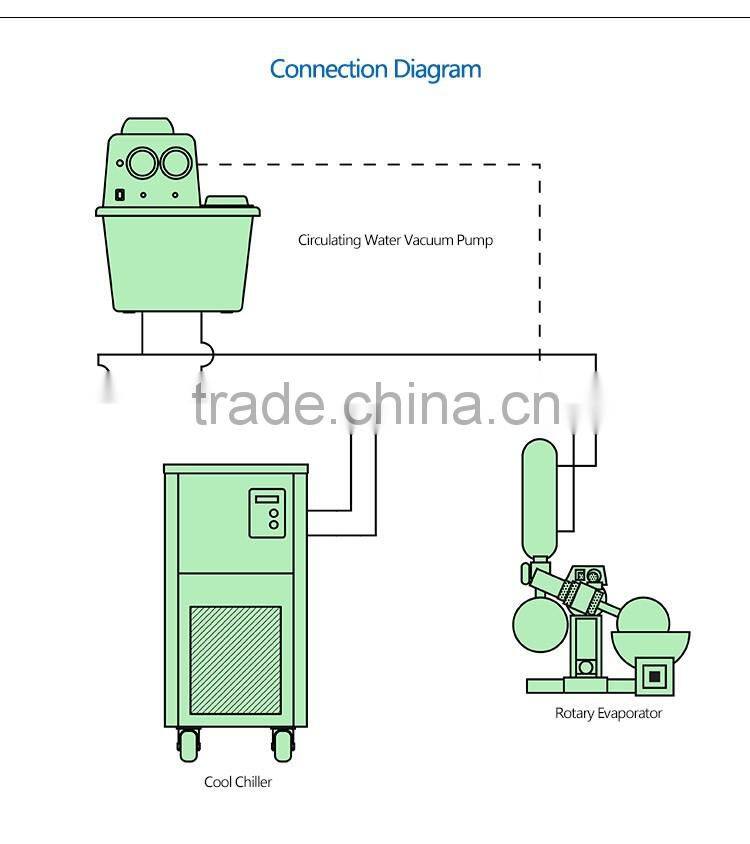

circulation pump. This device adopt mechanical refrigeration, the main function is provide low temperature liquid, low temperature water bath . It can also connect with rotary evaporator, vacuum freeze drying oven, cycle water vacuum pump, magnetic stirrer and so on, to achieve the chemical reaction or drug store under low temperature condition.
Product features
♦ Air-cooled and hermetically sealed compressor units (import) with dependable quality;
♦ The dedicated and high-quality relays, protective devices and capacitors of the refrigerating units;
♦ Digital Read Out of temperature and microprocessor controller for temperature, simple and easier to see;
♦ It can be matched with a variety of instruments (rotary evaporators, fermentation tanks, chemical reactors, freeze-drying equipments, pharmaceutical reactors, etc;
♦ Bigger cooling capacity and faster cooling speed, which have greatly improved the working efficiency;
♦ It can effectively ensure the normal use of all kinds of precision instruments under the working conditions such as lacking water, the poor quality,pressure and temperature of water, and high temperature;
♦ The flow of circulating pump can be either adjusted or customized, which has greatly met the actual needs of different customers;
♦ All models of this machine can be matched reasonably between the low temperature and the cooling capacity or capacity basing on the requirements of customers.

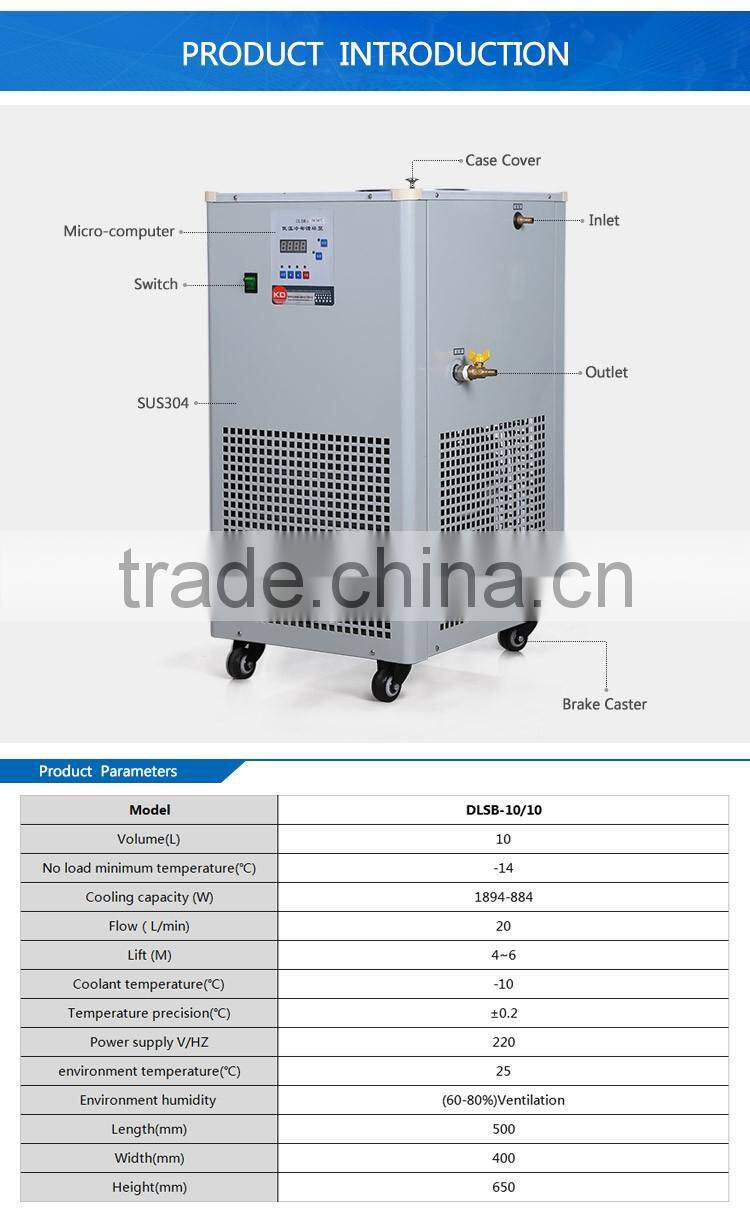

Technical parameter
Model | DLSB-10/10 | DLSB-10/20 | DLSB-10/25 | DLSB-10/30 | DLSB-10/40 | DLSB-10/60 | DLSB-10/80 | DLSB- 10/120 | |
Refrigerant Performance | Volume | 10L | |||||||
No Load Min. Temp. (℃) | -14 | -23 | -28 | -32 | -42 | -62 | -82 | -122 | |
Cooling Capacity (W) | 1894-884 | 2733-813 | 3256-990 | 2036-1022 | 2628-748 | 3679-510 | 3679-160 | 4997-120 | |
Circulating Performance | Flow (L/min) | 20 | |||||||
Lift(m) | 4-6 m | ||||||||
Temperature Control Performance | Coolant Temp. (℃) | -10 | -20 | -25 | -30 | -40 | -60 | -80 | -120 |
Temp. Precision (℃) | ±0.2 | ||||||||
Working Condition | Power Supply | 220V/50Hz | 220V/50Hz 380V/50Hz | 380V/50Hz | |||||
Environment Temp (℃) | 25 | ||||||||
Environment Humidity | (60-80%) Ventilation | ||||||||
Machine Dimensions | Length (mm) | 500 | 550 | 550 | 580 | 580 | 730 | 880 | 900 |
Width (mm) | 400 | 420 | 420 | 450 | 450 | 660 | 670 | 700 | |
Height (mm) | 650 | 680 | 680 | 680 | 680 | 880 | 900 | 900 | |
Packaging
-Plywood or carton packaging;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, TNT, EMS, FedEX and so on and you can also choose the appropriate one based on your timeline and budget. Besides, you can definitely choose to use your own shipping agent.
Service promise
1. Products quality guarantee is for one year, after the product was sold.
2. In the warranty period, the users operate according to instruction but meet problems, our company will maintain free of charge.
3. Beyond the warranty period, products problems can also be solved by my company maintenance, but charge wiring components fees properly.
Technology service
1. We have a mobile repair service team in our company, to carry out maintenance, consulting services in china for many years.
2. Users encounter problems when using our products, please contact us by telephone or email, we will be ready to provide consulting, maintenance and other services immediately.
Zhengzhou Keda Machinery and Instrument Equipment Co., Ltd.
Our company always adheres to the "quality casting brand, professional achieves service"
business philosophy, and the main product is rotary evaporator, jacketed glass reactor, single layer glass reactor, circulating water vacuum pump, low temperature reaction bath (slot), cooling chiller, vacuum drying oven, blast drying oven, high-pressure reaction kettle, freeze dryer, water/oil bath, magnetic heating stirrer, hydrothermal synthesis reactor, heating mantle, lift jack, etc. Besides, we act as agents of some domestic and foreign famous enterprise products, sustaining high prais in domestic junior colleges and universities, scientific research units, etc. Our products are sold to USA, Australia, Asia, Brazil, Iran, Egypt etc.
The quality of the products, also full affirmation and praise by our domestic and foreign customers.
1. What's the minimum order quantity?
One set at present.
2. What kind of payment term do you accept?
Normally we accept TT, Paypal, Western Union, Alibaba Escrow, and L/C. The exactly term with be discussed during the deal.
3. How will you delivery these goods?
It will be decided according to your quantity. Normally we will choose International Express, Air and sea.
4. How will package glass equipment?
We package these glass equipment in good and Non fumigation standard wooden case.
5. Can you accept OEM terms?
Sure.
