J-1500C Flat Jogging Jig Saw/Woodworking Jig Saw Machine

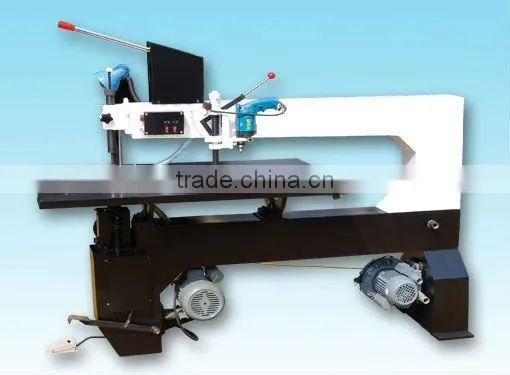

J-1500C Flat Jogging Jig Saw/Woodworking Jig Saw Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Band Saw
Use:
Woodworking
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Band Saw
Use Woodworking
Style Vertical
Place of Origin Zhejiang, China
Brand Name Tonghe
Model Number J-1500C
Usage Wood & Plastic Plate
Voltage 380/220V
Power(W) 980W
Dimension(L*W*H) See table below
Certification ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

1.This machine is suitable for four to open the seam super souvenir sheet of a variety of die production sawing.
2.The chuck with automatic saw blade clamping device can be quickly, effectively clamping the saw blade.
3.On the first card position, the table angle can be flexibility in adjusting the positioning, saw version adaptable.
4.The choice of a large work surface, ground into a mirror surface, with the flotation system, a large format die cutting operation more convenient and flexible.

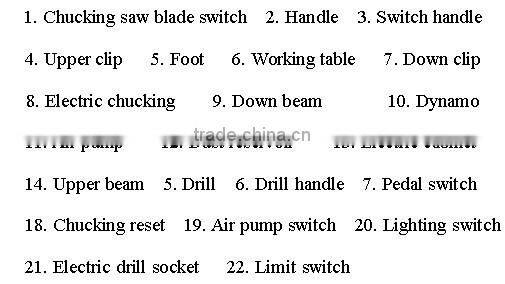

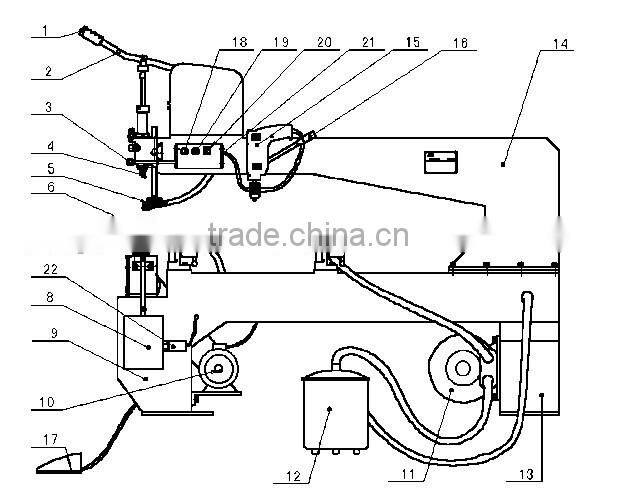

J-1500C Flat Jogging Jig Saw/Woodworking Jig Saw Machine

J-1500C Flat Jogging Jig Saw/Woodworking Jig Saw Machine

Specifications

Max.scope of work(mm)

800

1000

1200

1500

Table size (mm)

600*900

700*1000

800*1200

1000*1300

Saw Blade trip (mm)

30

30

30

30

Saw Blade thickness(mm)

0.3-3

0.3-3

0.3-3

0.3-3

Max.thickness(mm)

40

40

40

40

Sheet Category

Wood
Plastic Plate

Wood
Plastic Plate

Wood
Plastic Plate

Wood
Plastic Plate

Speed(times/min.)

1300

1300

1300

1300

Total powerW)

980

980

980

980

Voltage (V)

220/380

220/380

220/380

220/380

Model ABC Description:

Type A: pedal with cards, hairdryer dust;

Type B: pedal with cards, Suction dust, air-cushion suspension;

Type C: electrical equipment cards, Suction dust, air-cushion suspension.

Maintenance

1. The screws of every part should be checked often. Once there are loose ones, fasten them in time.

2. Clear dust reservoir periodically to prevent the too much dust from having bad effect on air floating.

3. Add lubricant oil periodically to avoid being lack of oil to work.

3.1.The square guide of upper clip needs lubricating with grease once half an month.

3.2.Ensure that the surface level of lubrication oil in gearbox of down clip is higher than the oiwindow line.
