Home > Products > Woodworking Machine > J-1200B Jogging Jig Saw Machine

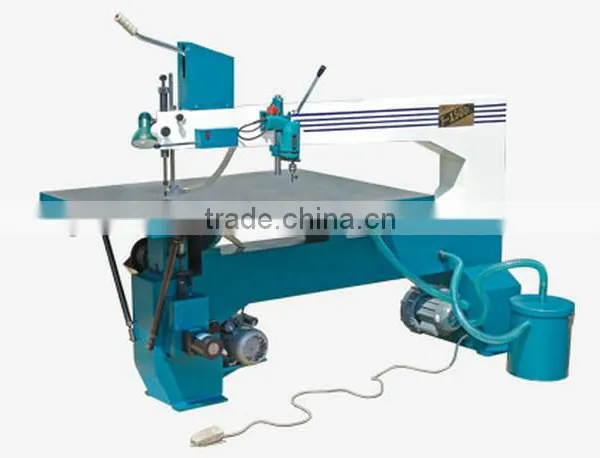

J-1200B Jogging Jig Saw Machine
- Ningbo or Shanghai
- T/T Money Gram Credit Card
You May Like
Product Details
| Condition | New | Type | Band Saw | |
| Use | Woodworking | Style | Vertical | |
| Place of Origin | Zhejiang, China | Brand Name | Tonghe | |
| Model Number | J-1200B | Usage | Wood & Plastic Plate | |
| Voltage | 380/220V | Power(W) | 980 | |
| Dimension(L*W*H) | See table below | Certification | ISO | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1.This machine is suitable for four to open the seam super souvenir sheet of a variety of die production sawing.
2.The chuck with automatic saw blade clamping device can be quickly, effectively clamping the saw blade.
3.On the first card position, the table angle can be flexibility in adjusting the positioning, saw version adaptable.
4.The choice of a large work surface, ground into a mirror surface, with the flotation system, a large format die cutting operation more convenient and flexible.
Specifications
Max.scope of work(mm) | 800 | 1000 | 1200 | 1500 |
Table size (mm) | 600*900 | 700*1000 | 800*1200 | 1000*1300 |
Saw Blade trip (mm) | 30 | 30 | 30 | 30 |
Saw Blade thickness(mm) | 0.3-3 | 0.3-3 | 0.3-3 | 0.3-3 |
Max.thickness(mm) | 40 | 40 | 40 | 40 |
Sheet Category | Wood | Wood | Wood | Wood |
Speed(times/min.) | 1300 | 1300 | 1300 | 1300 |
Total powerW) | 980 | 980 | 980 | 980 |
Voltage (V) | 220/380 | 220/380 | 220/380 | 220/380 |
Model ABC Description:
Type A: pedal with cards, hairdryer dust;
Type B: pedal with cards, Suction dust, air-cushion suspension;
Type C: electrical equipment cards, Suction dust, air-cushion suspension.
Maintenance
1.The screws of every part should be checked often.Once there are loose ones, fasten them in time.
2.Clear dust reservoir periodically to prevent the too much dust from having bad effect on air floating.
3.Add lubricant oil periodically to avoid being lack of oil to work.
3.1.The square guide of upper clip needs lubricating with grease once half an month.
3.2.Ensure that the surface level of lubrication oil in gearbox of down clip is higher than the oil window line.
