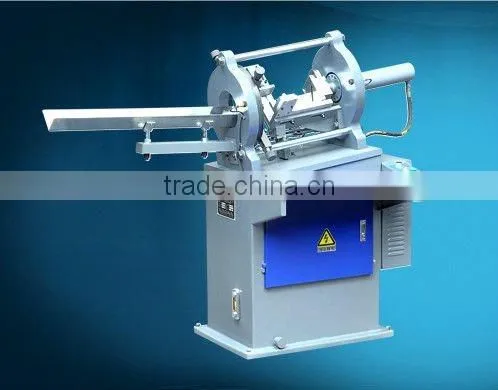

Hydraulic Paper Cards Die Punching Machine

Hydraulic Paper Cards Die Punching Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Punching Machine
Computerized:
No
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Punching Machine
Computerized No
Place of Origin Zhejiang, China
Brand Name Tonghe
Model Number LPM Series
Voltage 380/220V
Power(W) 1500-4000
Dimension(L*W*H) It depends
Weight It depends
Certification CE/ISO
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

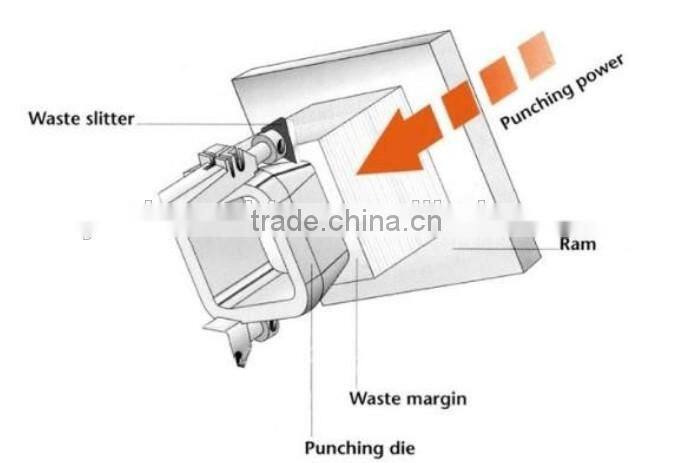

Suitable for the production of labels,playing cards, aluminum plastic, New year card, note book, envelopes of any design or size .with an average production of about 900.000 production of high precision  hourly. This machine adopts hydraulic pressure system. with a push-cube self-adjusting to every position of the "V" hold where the pack is positioned in order to obtain a homogeneous pression and distribution of the paper .the working table has a photoelectric cell which gives maximum safety to the operator and allows a quick change of the hollow punch and is adaptable both for low and medium production. The working process is completely stability. The die cutting products surface is smooth, and the size is unified and regular with high precision.

Hydraulic Paper Cards Die Punching Machine

Hydraulic Paper Cards Die Punching Machine
Main Technical Variables

Model

150

220

280

400

500

Max. Punching Size

100*100mm

150*150mm

190*190mm

270*270mm

340*340mm

Min.Punching Size

55*40mm

95*60mm

105*75mm

120*120mm

150*150mm

Stack Height

200mm

250mm

250mm

250mm

250mm

Cutting Pressure

16KN

30KN

40KN

50KN

50KN

Working Speed

76mm/s

66mm/s

65mm/s

65mm/s

65mm/s

Power

1.5kw

2.2kw

3kw

4kw

4kw

Net Weight

300kg

360kg

560kg

900kg

1140kg

Packing Size

1700*650
*1230mm

1800*700
*1360mm

1850*740
*1400mm

1900*840
*1400mm

1950*850
*1500mm

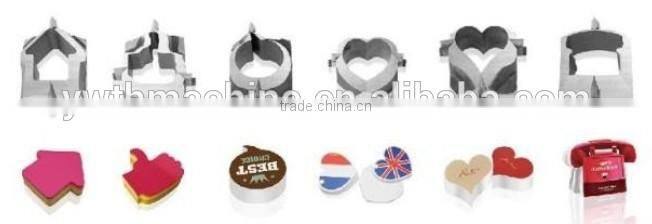

NOTE: The quality of paper products and knife are in a great relationship. Our company’s knife is after completion of the process of the six high-quality die, characterized by high accuracy, high hardness, wear-resistant, Durable.
