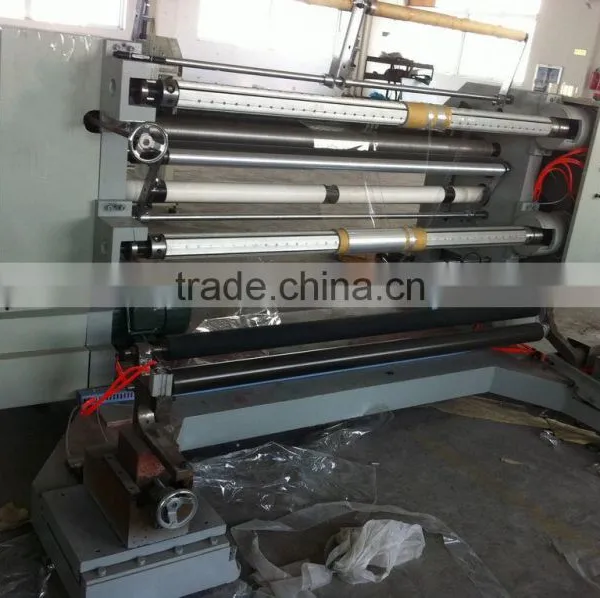

1300mm/51 Inch Micro Computer Control Automatic Roll Slitting Machine

Specifications

Suitable for slitting & rewinding such roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil laminated with film & paper,etc

 Features

1. Vertical striping model;
2. Independent microcomputer control screen making easy operation.
3. Magnetic powder control for tension of reeling and unreeling.
4. Auto metering with material running, auto photoelectric error correction for unreeling.
5. Equipped with side waste scrap air-blowing sending air-blowing sending or reeling devices.
6. Dual-aire swelling shaft reeling, smooth and level end face splitting.
7. Disc knife accessories must be selected for splitting aluminum foil and paper.

Model No.	TVS/1300
Max.Width of Unwinding material	1300mm
Max.diameter of Unwinding Roll	Φ600mm
Width of Rewinding Roll	30-1300mm
Speed of Slitting and Rewinding	5-160m/min.
Motor Power	3.5KW
Weight of Machine	1800kg
Machine Dimension	2600*1110*1400mm
