Specifications

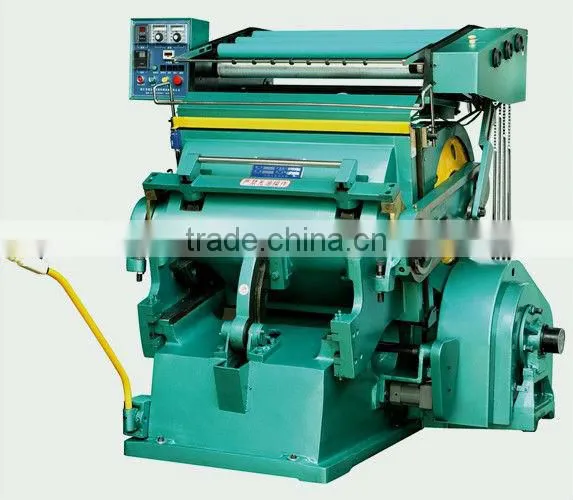

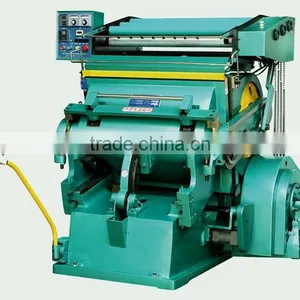

Widely used for thermo-printing & creasing various products, such as cardboard, leather and plastic etc.This machine is a kind of special equipment used for thermo-printing and creasing various products, such as cardboard, leather and plastic etc.
1.It is suitable for thermo-printing various paper products with electrochemical aluminum and also used as a creasing and cutting machine for mould cutting and creasing cardboard cases and boxes. 2.Concave-convex thermo-printing of various high-grade and fine printed products can also be conducted on this machine for obtaining stereoscopic exquisite and beautiful packing and decorating products.
3.The machine is controlled by a chip micro processor, with the foil-feeding rubber roller of electrochemical aluminum driven by the stepping motor.
4.The operator can use two or three group stepping motor and according to the different size of printing box to set length and leapfrog parameters to make the most effective using of electrochemical aluminum.
5.The purpose of this model is to ensure that the system runs stably and reliably so that the machine can be maintained by anybody.
Effective area of flat plate | 750*520mm |
Area of large lettering plate | 650*460mm |
Total electro thermal power | 4.5KW |
Adjustable range of temperature | 1-199degrees |
Continuous lettering speed | 25 strokes /min |
Common foil feeding | 1-460mm |
Times of skip | 1-99 |
Resolution of foil feeding | 1mm |
Motor power | 2.2kW/4 poles |
Machine weight | 2000kg |
Packaging Size (L*W*H) | 1440*1690*1790mm |
