Home > Products > Paper Converting Machine > High Speed Round/Square Paper Plate Making Machine

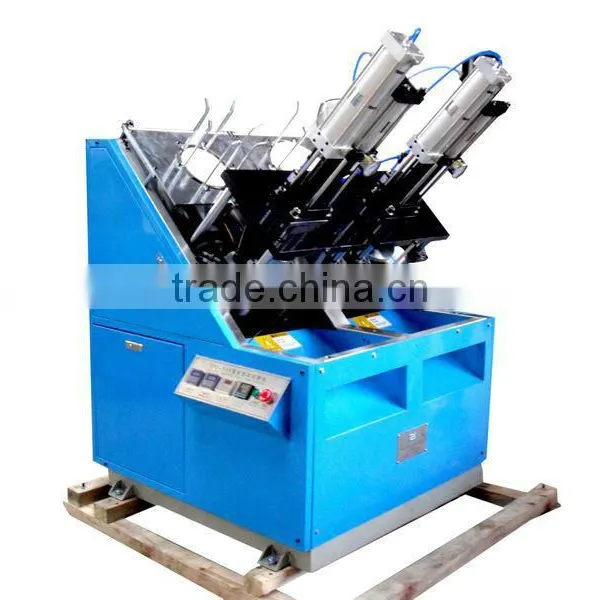

High Speed Round/Square Paper Plate Making Machine
- 30 Set / Sets per Month
- Ningbo or Shanghai
- T/T
- Semi Automatic Packing Line , Toilet Roll Packaging Machine Price
- Semi Automatic Packing Line , Toilet Roll Tissue Packaging Machine
- Semi Automatic Tissue Paper Packing Machine , Tissue Rolls Packing Machine
- Tissue Rolls Packing Machine , Automatic Packing Machine
- Tissue Roll Packing Machine , Semi Automatic Toilet Roll Packing Machine
- Manual Cutter for Cutting Paper , Paper Cutting Machine Small Size
Product Details
Condition: | New | Product Type: | Paper Plate Machine | Processing Type: | Paper Folding Machine |
Place of Origin: | Zhejiang, China | Brand Name: | Tonghe | Model Number: | ZDJ-300 |
Voltage: | 220V | Power(W): | 4.2KW | Dimension(L*W*H): | 1300*1000*1750mm |
Weight: | 300KG | Certification: | CE | Warranty: | 1 year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.TWO independent work stations2.Make 4-12inch paper dish
3.15-25pcs/staion/min.
4.With 2 free molds
Characteristics
1.ZDJ-300 paper plate forming machine is developed and designed as the requirement of market.
2.It is pneumatic type automatic paper dish forming machine with owned unique illtellent property right, which has functions as automatic paper feeding, forming, dish ejecting, temperature constant controlling, automatic counting, fast working speed, safe operation and easy maintenance, etc.
3.This machine has two working stations, two molds installed in the machine, you can produce two sizes paper plates at the same time or let the two molds the same to get double speed.
Technical specifications
Dish size | 4-12inch |
Raw material | Cardboard, Compound paper or ivory board |
Suitable paper weight | 180-600gsm (Recommend 350-450gsm) |
Air flow | 1m3/min |
Electrical Supply | 220V 50Hz |
Total power | 4.2KW |
Rated Productivity | 15-25pcs/min (one working position)*2 |
Weight | 300kg |
Air pressure | >0.6mpa |
Appearance size | 1300*1000*1750mm |
