Automatic Single PE Coated Paper Bowl Forming Machine

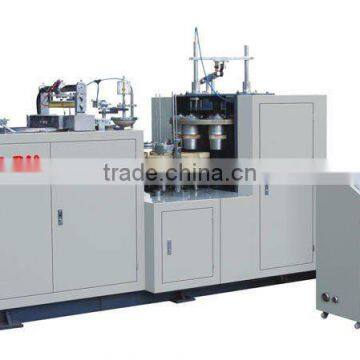

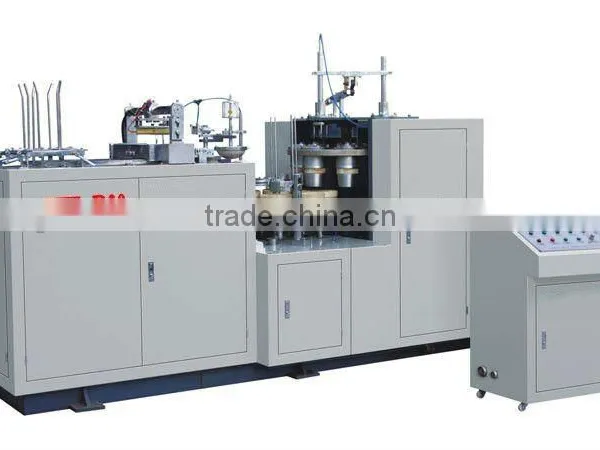

Automatic Single PE Coated Paper Bowl Forming Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Paper Bowl Machine
Processing Type:
Paper Folding Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Paper Bowl Machine
Processing Type Paper Folding Machine
Place of Origin Zhejiang, China
Brand Name Tonghe
Model Number JWZ-D30
Voltage 220/380V
Power(W) 8KW
Dimension(L*W*H) 2830*1450*1900 mm
Weight 1800KG
Certification CE
Warranty One year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Single PE Coated Paper Bowl Making Machine
2.Bowl size:20-50oz
3.Avaliable to make any special size

Features



1.Model JWZ-D30 Paper Bowl Forming Machine is an automatic machine with multi-working station, which has the function of photocell detection, failure alarm, counter and the advantages of humanism design, safer operation and easier maintenance.



2.It makes one-side-PE-film-coated paper bowls after running a whole procedure of automatic pre-printed-fan-shape-paper feeding, two-step pre-heating, bowl-side-body sealing(heater), silicone-oil lubricating(for top curling), bottom punching, two-step bottom heating, bottom pre-folding, bottom knurling, top curling and bowl discharging.



3.It is an ideal equipment of making soup paper bowls,noodle bowls, bigger paper cups and other large food cone-shaping containers, etc.



Technical specifications



Paper Bowl Size 20--50oz, height up to 125 mm (mold exchangeable)
Raw Material

One-side PE(polyethylene) film coated/laminated paper

Suitable Paper Weight 140gsm--320 gsm (Recommend 170--280 gsm)
Rated Productivity 35-45pcs / min.
Voltage220V/380V 50Hz or other
Total Power 8KW
Package Size (L x W x H) 2830*1450*1900 mm
Electric Control Box Size 750*570*1070 mm
Working Air Source Air pressure:0.6MPa, Air Out-put: 0.6m3/minute
Total Weight 1800KGS
Remark:Customer shall buy one air compressor to make paper bowls
