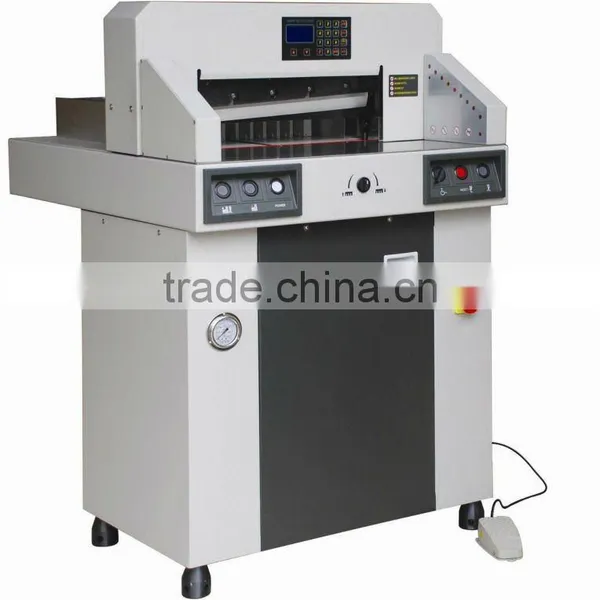

It is a hydraulic paper cutting machine that can set 100 programs, each program can set 20 cuts, it is with two different motors for paper presser and paper cutter, it is for cutting paper sheets, books and photo albums.
Features
1. Inclined blade cutting patented technology: Any paper can be cut easily with inclined blade design.
2. Optical cutting line: Indicating line, high-visible.
3. Patented appearance: Simple, exquisite metal technics and removable design, being applied to graphic printing office.
4. Adjustable gap of blade carrier patented technology: ± 0.2mm cutting precision, long service time.
5. Spin cutter with outer fine adjustment technology: Outer adjustment, easy operation.
6. Pushing paper with double guide rod technology device: Double-rod paper-push ensuring the precision of pushing.
7. IR grating protective circuit design: Making according to CE standard to guarantee safety with front echelette grating & back plastic cover protective design.
8. Human design for keeping books: Save space, it's easy to put and take books on the plain stage of machine.
9. Blade with double row holes design: Increasing the frequency of the use of blade, reduce cost.
10. Double Hydraulic with strong power system design: Imported motor with strong power, Imported hydraulic components for ensure quality.
11. Oscillating oil cylinder patented technology: Oil cylinder oscillating design makes balanced cutting power.
12. Partial pressure technology for hydraulic system: Effectively overcome the creasing for book cover.
13. Balance adjustment design for machine: Easy to move, and adjust the balance of machine.
14. Intelligent control, LCD: Optimization and upgrading program, pressing, cutting time and calibrating spot of pushing size can be set at will, 100 programs can be set fpr program series. Each program 20 cuts.
Main Technical Parameters
Max. Cutting Size | 670mm |
Min. Cutting Size | 30mm |
Cutting Thickness | 80mm |
Cutting Precision | ±0.3mm |
Pressing paper Mode | Hydyaulic |
Cutting paper mode | Hydyaulic |
Pushing paper Mode | Program |
Display | Liquid Crystal Display |
Program | Yes |
Power Supply | AC220V(110)±10% 50HZ(60HZ)3.1KW |
Net Weight | 480kg |
Machine Dimension(H*D*W) | 1310*990*1290mm |
