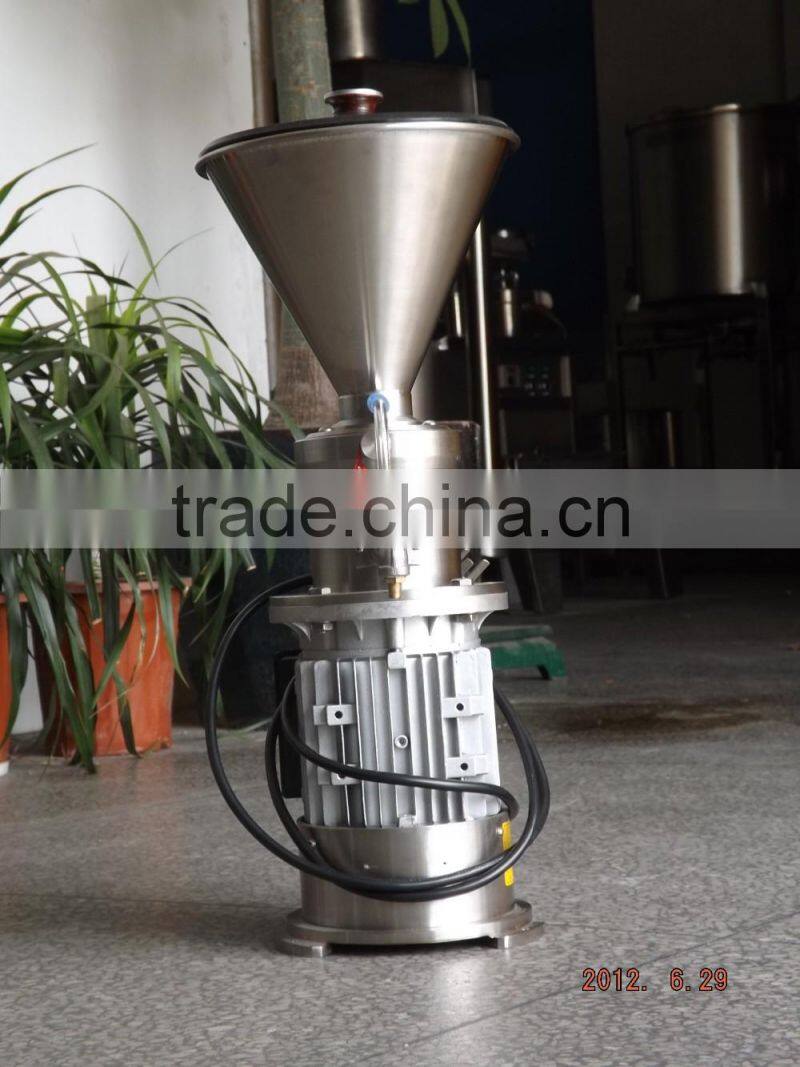

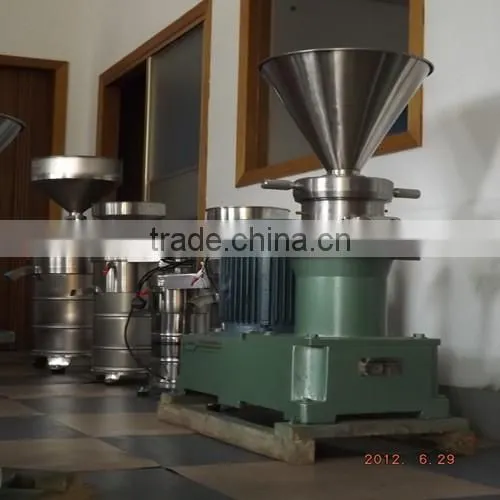

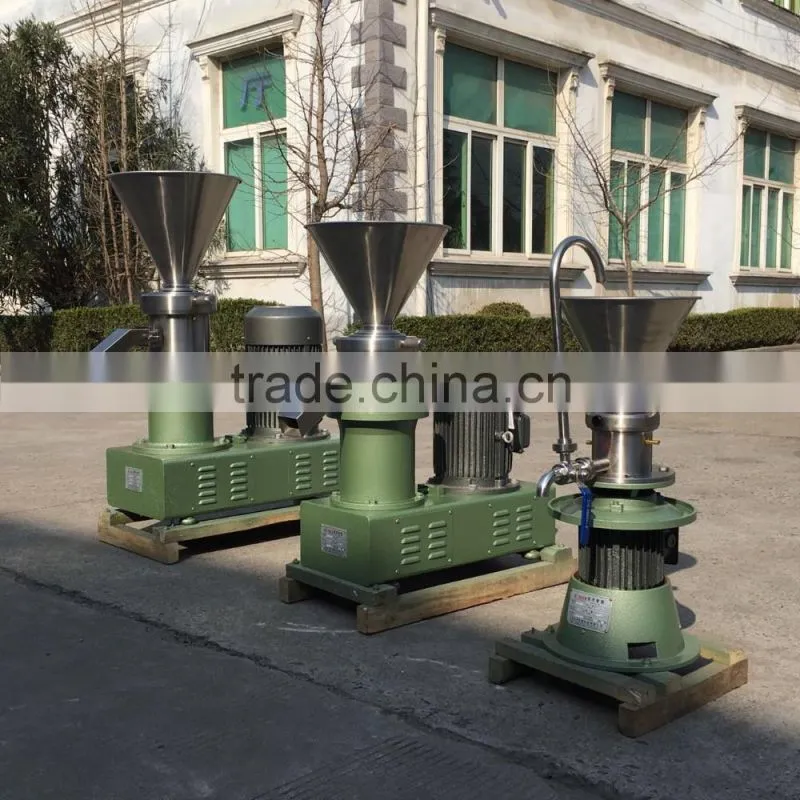

JMS-80 Vertical Peanut Butter Grinding Machine
About the product:
| Model | JMS-80 |
| Voltage | 380V/50HZ |
| Power | 4KW |
| Material fineness | 2-50 (um ) |
| Input(soybean) | 0.2-1.5T/h |
| Weight | 150kg |
| Size | 95*45*80cm |
Working principle:

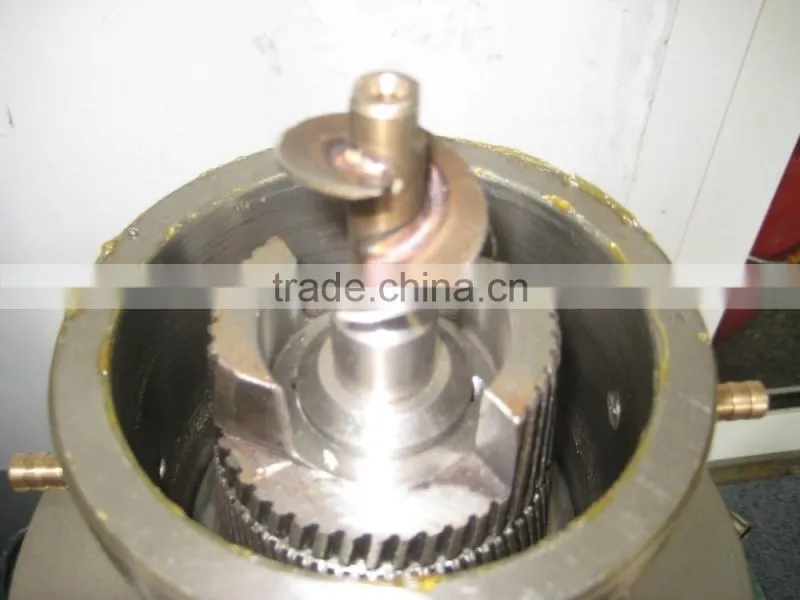

The working principle of the colloidal mill is that: Under the effect of centrifugal force and being run by relatively high speed between the rotating gear and the fixed gear, the liquid and the semi-liquid materials is efficiently emulsified, homogenized, dispersed and mixed during the course of being cut, milled and shocked with high frequency. After that you can get the satisfied and processed material.
Application Scope:
The colloidal mill is widely applied in sorts of products of many fields by its advantage such as foodstuffs industry, medicine industry, chemical industry and everyday chemical industry etc.; the products including soybean milk, fruit jam, peanut butter, artificial corn milk, cream, perfumery compound, pigment, greasing oil, dyestuff, pant, fish live oil, pollen, honey, tooth-paste and so on.
(1)Food industry: aloe,bee pollen,pineapple,sesame,fruit tea,ice cream,moon cake stuffing,butter,jam,juice,soybean,bean sauce, sweetened bean paste,peanut milk,protein milk,soybean milk,dairy products,malted milk,favoring essence,beverages,emulsified chick bone paste,emulsified pig skins and other animal skins,etc.
(2)Chemical industry: paint,pigment,dye,coating,lubricant,lubricating grease,diesel,petroleum catalyst,emulsified asphalt,adhesive,detergent,plastic,explosive,glass fiber reinforced plastic,leather,emulsion explosive,etc
(3)Daily chemicals: toothpaste,detergent,shampoo,shoe polish,cosmetics,bath concentrate,soap,fragrance grease,etc.
(4)Pharmacy: syrup,nutrition liquid,Chinese traditional patent medicine,cream medicine,biological products,cod-liver oil,pollen,royal jelly,vaccine,various ointments,various oral liquid,injection,vein liquid extract,pancreatin agent,emulsion,animal medicine,etc.
(5)Other industries: plastic industry,textile industry,paper making industry,bio-chemical,environment protection&energy saving coal floatation agent,nanometer material,various schools,colleges,research institutes,etc.
Technical Data | Voltage | Motor Power | Input (According to Materials) | Thin degree | Weight | Size |
JM-60 | 220V 50Hz | 1.5KW | 0.05-0.5T/Hr | Conical stainless steel Finess of processed material(2~50μm) Cooling water tie-in | 45Kg | 300*300*650mm |
JM-80 | 380V 50Hz | 4KW | 0.2-1.5T/Hr | 95Kg | 450*450*800mm | |
JM-120 | 380V 50Hz | 7.5KW | 0.5-2T/Hr | 150Kg | 550*550*1300mm | |
JMS-80 | 380V 50Hz | 4KW | 0.2-1.5T/Hr | 200Kg | 450*450*800mm | |
JMS-120 | 380V 50Hz | 7.5KW | 0.5-2T/Hr | 250Kg | 550*550*1300mm | |

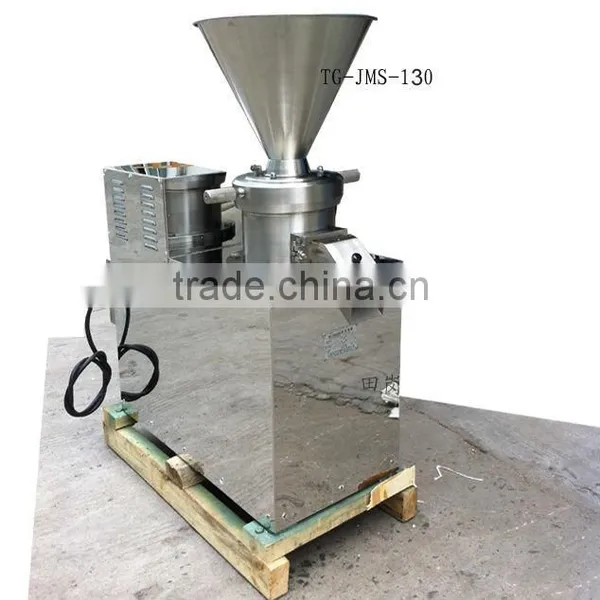

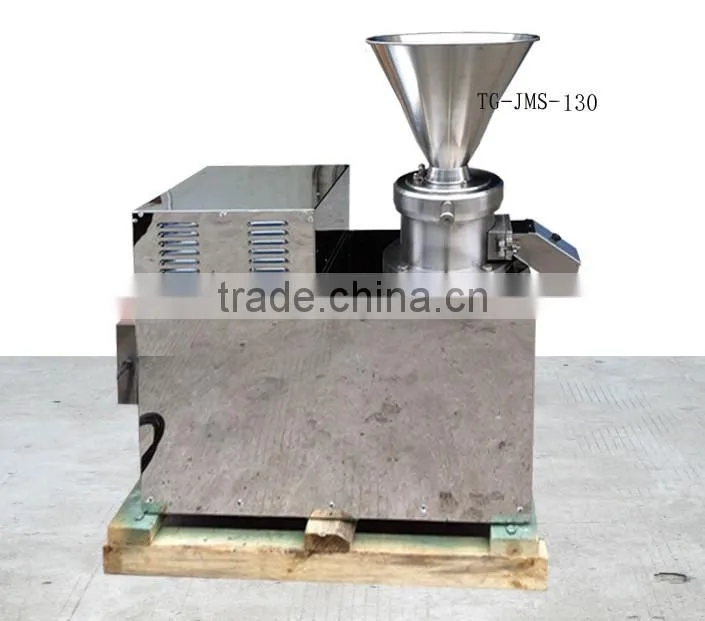

JMS-130 | 380V 50Hz | 11KW | 0.5-2T/Hr | 350Kg | 550*550*1300mm |
Other ralated products:
Our company:
Shanghai Tiangang Machine Manufacture Co.Ltd. has been engaged in manufacturing soybean processing machine for
about 15 years .Our products are widely used all over the world . Mainly including grinding machine,commercial soymilk
machine,instant tofu making machine,dried tofu and many other soybean processing machine . Also,we can provide
whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and
separating,cooking,breaking,pressing and sterilization.
More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are
know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
