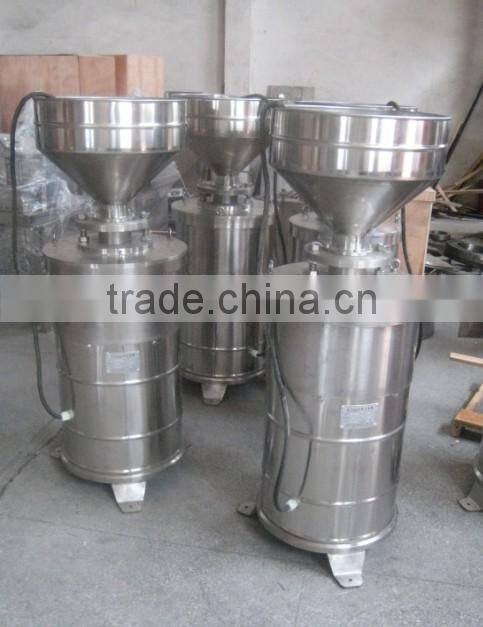

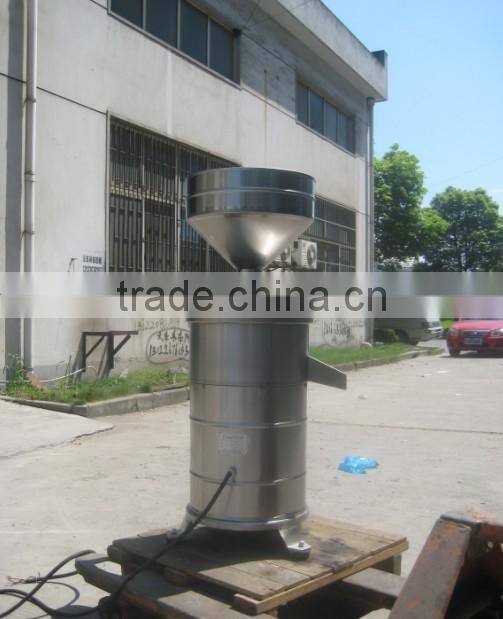

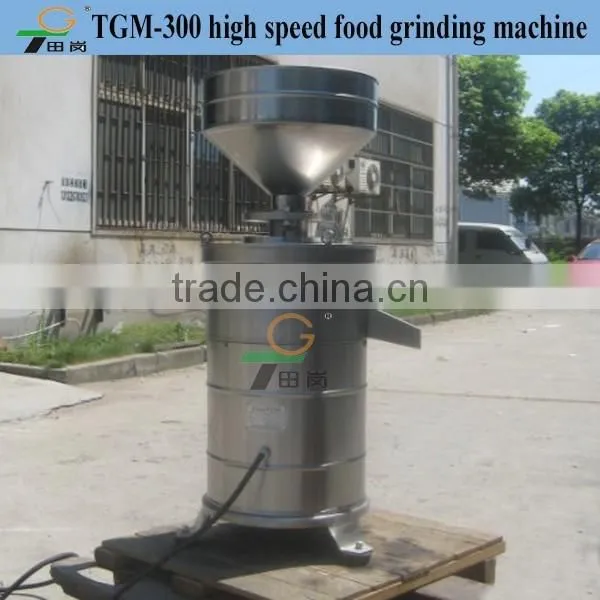

TGM-300 High Speed stone grinder/food grinding machine/nuts milk grinding machine
Capacity: beans 300kgs/hr,
Diameter of the grinding stone :300mm,
Material of the grinding stone: corundum.
Power:7.5kW,
Voltage:380v/50Hz,
Weight:195kgs
Size :520×580×1250mm
Other similar functiuon models:
Model |
Capacity |
Thickness |
Grinding Type |
Power |
Weight |
Size |
JM-60(Vertical) |
0.05-0.5t/hr |
2-50um |
SUS gear |
1.5KW |
45KG |
300*300*650 mm |
JM-80(Vertical) |
0.2-1.5t/hr |
2-50um |
SUS gear |
4KW |
200KG |
630*300*800 mm |
JMS-120(horizontal) |
0.5-2 t/hr |
2-50um |
SUS gear |
7.5KW |
180kg |
550*550*800 mm |
JMS-130(horizontal) |
0.5-4t/hr |
2-50um |
SUS gear |
11KW |
350KG |
800*400*1000 mm |
TGM-300(Vertical) |
Rice:350kg/hr Soyabeans:300kg/hr |
100mesh |
Corundum |
7.5KW |
195Kg |
520*580*1250mm |
1, Unique structure of door body and grinding bore and motor special waterproof device, have an effective solution to the problem of leakage of water.
2, Well-designed grinding bore makes the slurry flowing smooth, less product material, easy clean-up.
3, The practical and unique thickness structure which can adjustable, it's easy to adjust, reliable locking.
4,Filter level can reach to 80-100mesh
5, Clean and sanitary ,all structure made of stainless steel.
♦ Supplying the Customization made for client
TAINGANG CO suggests suitable machines for client's demand including mold modifications, turn-key service and supply customization for client's special demands. For example, tofu pressing machine or tofu moulds or other special related equipments for production line.TIANGANG CO's machine was be made by integrally formed, it will be more durable and increase life span. Client satisfaction is TIANGANG's main goal.
♦ Semi-Automatic production line and turn-key project are available:
Since 2008 in response to the rise of emerging markets, TIANGANG COMPANY has developed Semi-automaticed production lines at lower investment capitals to replace physical labor into higher value-added production. It could simplify physical labor procedures.Full production line can operated via switches, lower costs than full automatic production line, maintance costs are lower and easy to repaired by customerself.
♦ Successfully exported worldwide
TIANGGANG COMPANY has successfully supplied over than 1800 machines and exported machines to many countries like Asian, Singapore,Vietnam, Korea, Indonesia, Philippines,USA, Ireland, Italy, Germany, England, Mexico,Slovenia,Czekh,Colombia,Thiland,Turkey,Nigeria,India,Spain,South,Africa,Croatia,Canada,Brazil,Australian,Austria,Pakistan..etc.With many practical experiences, TIANGANG COMPANY can offer clients with clients service experience and the most effective market information.
♦ Consulting respond and after-sales service:
TIANGANG COMPANY will respond to customer by phone calls, e-mails or faxes for machinery or production problems within 24 hours to prevent a client's potential loss.
TIANGANG COMPANY will supply loading strength and economic package way for clients. To avoid machine damage from transportation, The plywood carton and plastic bubble film for inner packag are welled protect the machines for damage when transportation.
Shanghai Tiangang Machine Manufacture Co.Ltd. has been engaged in manufacturing soybean processing machine for
about 15 years .Our products are widely used all over the world . Mainly including grinding machine,commercial soymilk
machine,instant tofu making machine,dried tofu and many other soybean processing machine . Also,we can provide

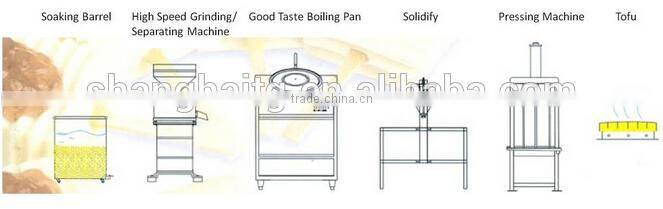

whole sets of soymilk and tofu processing line, consist of soybean soaking,suction of soybeans,grinding and
separating,cooking,breaking,pressing and sterilization.
More importantly is we can design turn-key project according to customers' needs. Our salesmen as well as engineers are
know very well about our products,they will serve you with all their profession and sincerity.
Looking forward to cooperating with you in the near future !
