Best quality particle board production line / mechanical classi-former machine

Specifications

Particle board production line
1.Full automatic
2.durable and economic
3.labor-saving
4.certificate: CE/ISO 9001

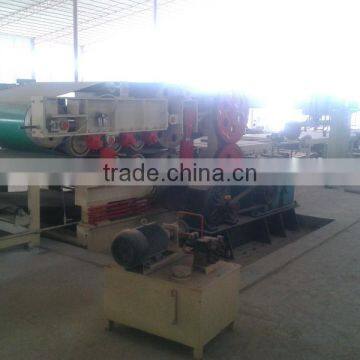

 PICRURES OF PB PRODUCING MACHINE











Particle Board Production Line





^{Particle board is made from small-diameter wood, branches, wood residues and non-wood agricultural residues via Chip preparation, drying, spreading and hot press section. Finished boards can be used for furniture, building, packing, vehicle and  decoration and lamination.}



^{1. Chip preparation section
     Raw material is reduced into qualified chips by the drum chipper,  then the chips are transported to the chip bin, and then feed to the  knife-ring flaker by which the chips are turned to flakes, then the  flake stored in wet flake bin.}



^{2. Drying and sifting section
    The flakes discharged from the wet flake bin are conveyed to the rotary dryer. Qualified core flakes are stored in core flake bin; oversize flakes are send to mill to be re-crushing, and transported to surface flake bin.}



^{3. Glue regulating and applying section
    After scaled, the core and surface flakes are to be effectively  and uniformly mixed with qualified glue independently in their glue mixers respectively.}



^{4. Forming and hot-pressing section
   The surface and core flakes are sent into classi-forming machine, and forming on the mat conveyor uniformly. After processes of metal remover, pre-press, lengthwise saw, cross saw, accelerate conveyor, scaling conveyor, storing conveyor and loading conveyor, mats are transported to carrier and then to hot press. Rough boards after pressing are pushed to unloader via pallet.}



 ^{5.Cooling and sizing section
   The rough board is conveyed to star-cooler for cooling, then the rough board goes through side trimming saw and become  a qualified particle-board, stacked on the hydraulic lift.}



^{6. Sanding Section
    The board are sanded, checked and stored .
   PLC control is used in mat-forming section}
